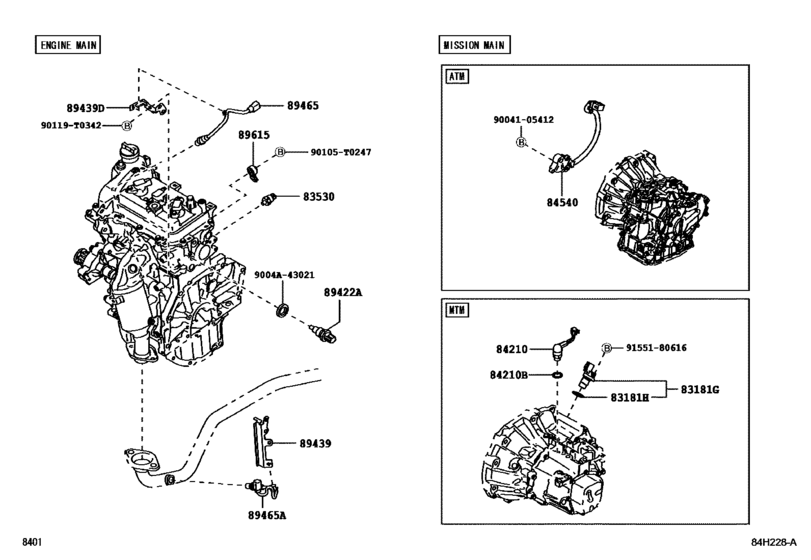

Switch & Relay & Computer ([06.2016 - ] ENGINE & TRANSMISSION (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- From
- 06.2016
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83181G
|
83181G
83181-B6010 Sensor, Speedometer[06.2016 -] B401..5F; B401..5F ABS (ANTI-LOCK BRK SYSTM)-ABS |
83181-B6010 |
US $141.23 |
||
|
83181H
|
83181H
90043-01278 Ring, O[06.2016 -] B401..5F; B401..5F ABS (ANTI-LOCK BRK SYSTM)-ABS |
90043-01278 |
US $3.76 |
||
|
83530
|
83530
83530-52050 Switch Assy, Oil Pressure (For Engine)[09.2016 -] B401 |
83530-52050 |
US $23.50 |
||
|
83530
|
83530
83530-B0010 Switch Assy, Oil Pressure (For Engine)[06.2016 - 08.2016] B401 |
83530-B0010 |
US $21.13 |
||
| replacement | |||||
|
83530
|
83530
83530-52050 Switch Assy, Oil Pressure (For Engine)[06.2016 - 08.2016] B401 |
83530-52050 |
US $23.50 |
||
|
84210
|
84210
84210-BZ070
Switch Assy, Back-Up Lamp
[06.2016 -] B401..5F |
84210-BZ070 |
— | ||
|
84210B
|
84210B
9004A-43006 Gasket (For Head Straight Screw Plug)[06.2016 -] B401..5F |
9004A-43006 |
US $1.97 |
||
|
89422A
|
89422A
89422-BZ030 Sensor, Water Temperature[06.2016 -] B401 |
89422-BZ030 |
US $36.80 |
||
|
89439D
|
89439D
89439-BZ180
Bracket, Sensor, No.1
[06.2016 -] B401 |
89439-BZ180 |
— | ||
|
89465
|
89465
89465-BZ470
Sensor, Oxygen
[06.2016 -] B401 |
89465-BZ470 |
— | ||
|
89615
|
89615
89615-BZ040
Sensor, Knock Control
[06.2016 -] B401 |
89615-BZ040 |
— | ||
|
90119T0342
|
90119T0342
90119-T0342
Bolt (For Transmission Control Cable Bracket)
|
90119-T0342 |
— | ||
|
9004105412
|
9004105412
90041-05412 Bolt (For Pawl Stopper Plate) |
90041-05412 |
US $2.18 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.63 |
||
