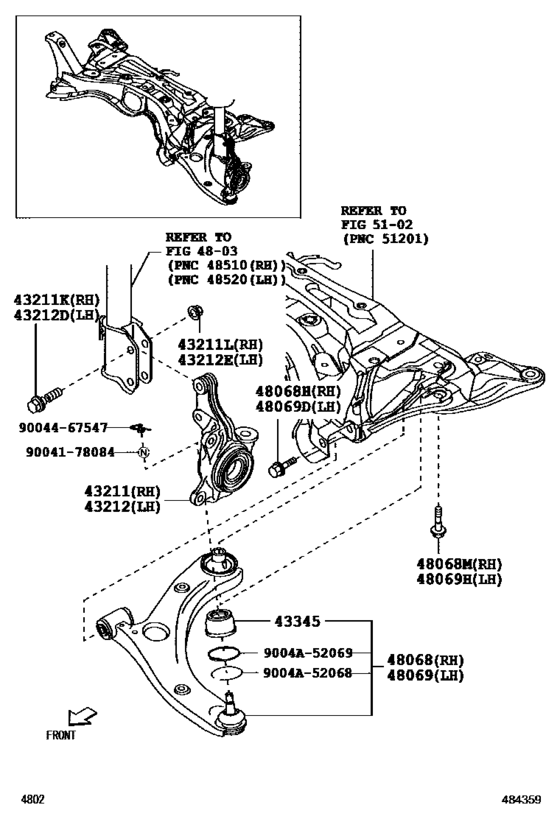

Front Axle Arm & Steering Knuckle ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- G
- ENGINE
- 3NRVE
- TRANSMISSION
- MTM
- From
- 06.2016
- Gear Shift Type
- 5F
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-BZ290
Knuckle, Steering, Rh
[06.2016 -] B401..4FC; B401..5F ABS (ANTI-LOCK BRK SYSTM)-ABS |
43211-BZ290 |
— | ||
|
43211
|
43211
43211-BZ300
Knuckle, Steering, Rh
[06.2016 -] B401..5F |
43211-BZ300 |
— | ||
|
43211K
|
43211K
9004A-10148
Bolt (For Steering Knuckle Rh)
[06.2016 -] B401 |
9004A-10148 |
— | ||
|
43211L
|
43211L
9004A-17251
Nut (For Steering Knuckle Rh)
[06.2016 -] B401 |
9004A-17251 |
— | ||
|
43212
|
43212
43212-BZ290
Knuckle, Steering, Lh
[06.2016 -] B401..4FC; B401..5F ABS (ANTI-LOCK BRK SYSTM)-ABS |
43212-BZ290 |
— | ||
|
43212
|
43212
43212-BZ300
Knuckle, Steering, Lh
[06.2016 -] B401..5F |
43212-BZ300 |
— | ||
|
43212D
|
43212D
9004A-10148
Bolt (For Steering Knuckle Rh)
[06.2016 -] B401 |
9004A-10148 |
— | ||
|
43212E
|
43212E
9004A-17251
Nut (For Steering Knuckle Rh)
[06.2016 -] B401 |
9004A-17251 |
— | ||
|
43345
|
43345
43345-BZ060
Cover, Lower Ball Joint Dust
[06.2016 -] B401 |
43345-BZ060 |
— | ||
|
48068
|
48068
48068-BZ220
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[06.2016 -] B401 |
48068-BZ220 |
— | ||
|
48068H
|
48068H
90041-05554 Bolt(For Front Suspension Lower Arm No.1 Rh)[06.2016 -] B401 |
90041-05554 |
US $5.82 |
||
|
48068M
|
48068M
90041-05475 Bolt(For Front Suspension Lower Arm No.2)[06.2016 -] B401 |
90041-05475 |
US $8.42 |
||
|
48069
|
48069
48069-BZ220
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[06.2016 -] B401 |
48069-BZ220 |
— | ||
|
48069D
|
48069D
90041-05554 Bolt(For Front Suspension Lower Arm No.1 Rh)[06.2016 -] B401 |
90041-05554 |
US $5.82 |
||
|
48069H
|
48069H
90041-05475 Bolt(For Front Suspension Lower Arm No.2)[06.2016 -] B401 |
90041-05475 |
US $8.42 |
||
|
9004A52068
|
9004A52068
9004A-52068
New Genuine Part
|
9004A-52068 |
— | ||
|
9004A52069
|
9004A52069
9004A-52069
New Genuine Part
|
9004A-52069 |
— | ||
|
9004178084
|
9004178084
90041-78084 NUT FLANGE |
90041-78084 |
US $2.33 |
||
|
9004467547
|
9004467547
90044-67547 CLIP |
90044-67547 |
US $2.15 |
