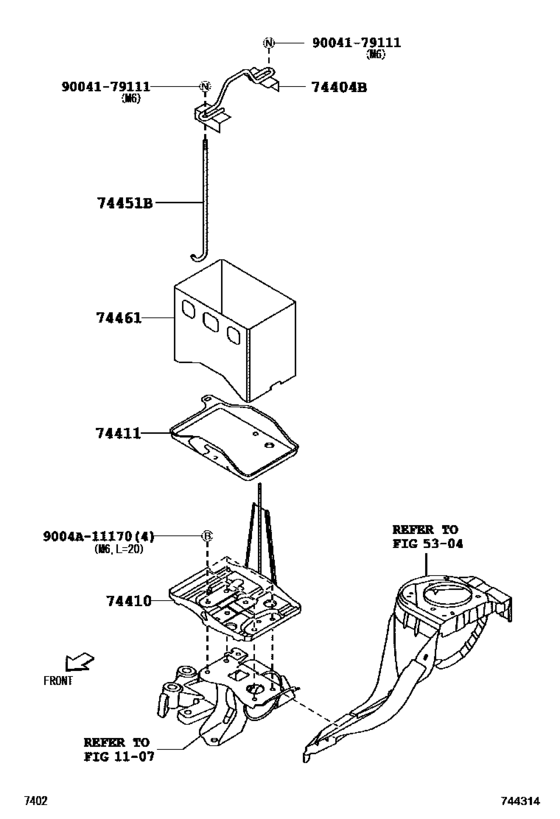

Battery Carrier ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74404B
|
74404B
74404-BZ170
Clamp Sub-Assy, Battery
[06.2016 -] B401 |
74404-BZ170 |
— | ||
|
74410
|
74410
74410-BZ050
Carrier Assy, Battery
[06.2016 -] B401 |
74410-BZ050 |
— | ||
|
74411
|
74411
74411-BZ110
Carrier, Battery
[06.2016 -] B401 |
74411-BZ110 |
— | ||
|
74451B
|
74451B
74451-87Z07 Bolt, Battery ClampBATTERY CLAMP [06.2016 -] B401 |
74451-87Z07 |
US $3.50 |
||
|
74461
|
74461
74405-BZ061
Cover, Battery
[06.2016 -] B401 |
74405-BZ061 |
— | ||
|
9004A11170
|
9004A11170
9004A-11170
New Genuine Part
|
9004A-11170 |
— | ||
|
9004179111
|
9004179111
90041-79111 Nut, Wing (For Battery Clamp Bolt) |
90041-79111 |
US $4.48 |
