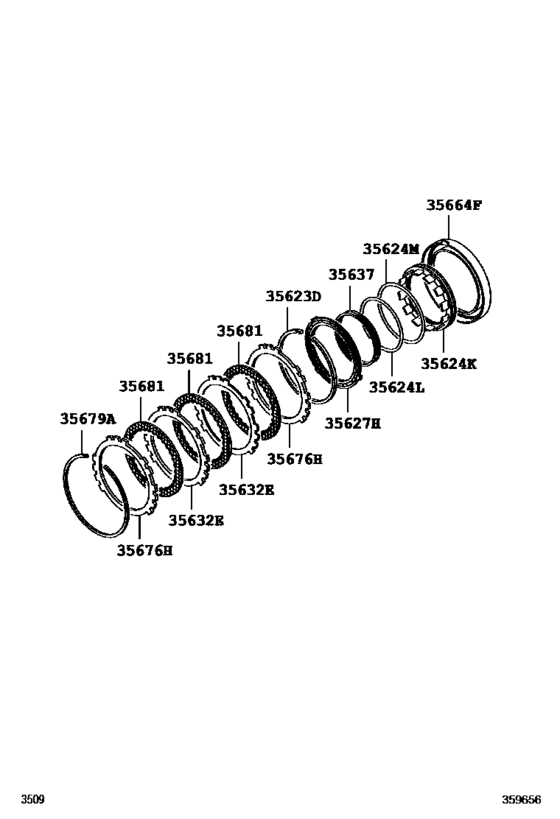

Brake No.3, 1St & Reverse Brake (Atm) ([06.2016 - ] (1606- )4FC) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35623D
|
35623D
90045-21185 Ring, Shaft Snap (For Brake)[06.2016 -] B401..4FC |
90045-21185 |
from US $2.58 |
||
|
35624K
|
35624K
35624-97201 Brake Piston, 2Nd & 4Th[06.2016 -] B401..4FC |
35624-97201 |
US $26.56 |
||
|
35624L
|
35624L
90043-01296 Ring, O (For 2Nd & 4Th Brake Piston, No.1)[06.2016 -] B401..4FC |
90043-01296 |
from US $3.14 |
||
|
35624M
|
35624M
90043-01295 Ring, O (For 2Nd & 4Th Brake Piston, No.1)[06.2016 -] B401..4FC |
90043-01295 |
from US $3.25 |
||
|
35627H
|
35627H
35627-97202 Brake Seat, 2Nd & 4Th[06.2016 -] B401..4FC |
35627-97202 |
from US $6.12 |
||
|
35632E
|
35632E
35632-97201 Plate, Brake[06.2016 -] B401..4FC |
35632-97201 |
from US $10.60 |
||
|
35637
|
35637
35637-97201 Spring, 2Nd & 4Th Brake Piston Return[06.2016 -] B401..4FC |
35637-97201 |
from US $4.48 |
||
|
35664F
|
35664F
35664-97205 Cylinder, 2Nd & 4Th Brake[06.2016 -] B401..4FC |
35664-97205 |
from US $23.10 |
||
|
35676H
|
35676H
35676-97202 Flange, Brake, No.1[06.2016 -] B401..4FC |
35676-97202 |
from US $15.20 |
||
|
35679A
|
35679A
90045-21176 Ring, Hole Snap(For Brake Flange)[06.2016 -] B401..4FC T=1.20 |
90045-21176 |
US $7.86 |
||
|
35679A
|
35679A
90045-21177 Ring, Hole Snap(For Brake Flange)[06.2016 -] B401..4FC T=1.75 |
90045-21177 |
from US $1.52 |
||
|
35679A
|
35679A
90045-21178 Ring, Hole Snap(For Brake Flange)[06.2016 -] B401..4FC T=2.0 |
90045-21178 |
from US $1.52 |
||
|
35679A
|
35679A
90045-21179 Ring, Hole Snap(For Brake Flange)[06.2016 -] B401..4FC T=2.25 |
90045-21179 |
from US $2.64 |
||
|
35681
|
35681
35681-97201 Disc, Brake, No.1[06.2016 -] B401..4FC |
35681-97201 |
from US $6.99 |
