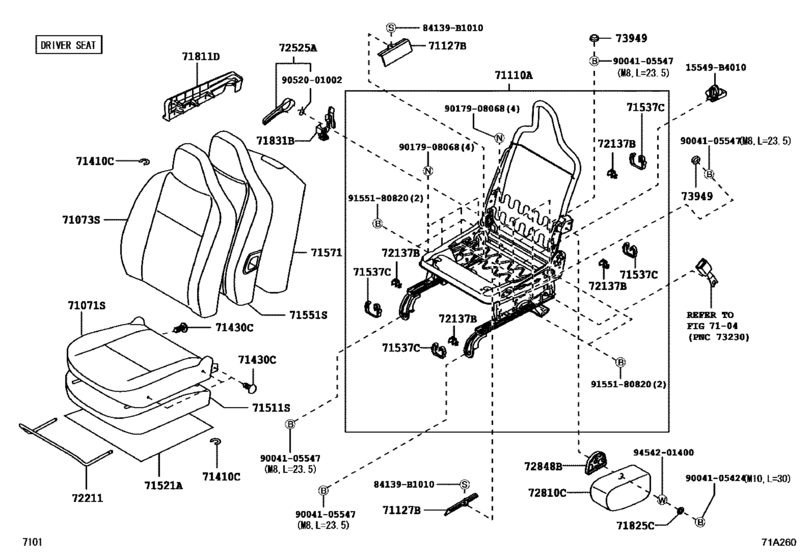

Front Seat & Seat Track ([06.2016 - ] DRIVER SEAT (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-BZJ40-E0
Cover, Front Seat Cushion, Rh(For Separate Type)
[06.2016 -] B401 BROWN,TRIM4# |
71071-BZJ40-E0 |
— | ||
|
71073S
|
71073S
71073-BZK40-E0
Cover, Front Seat Back, Rh(For Separate Type)
[06.2016 -] B401 BROWN,TRIM4# |
71073-BZK40-E0 |
— | ||
|
71110A
|
71110A
71110-BZ210
Frame Assy, Front Seat W/adjuster, Rh
[06.2016 -] B401 |
71110-BZ210 |
— | ||
|
71127B
|
71127B
71127-BZ010 Plate, Fr0Nt Seat Cushion Cover Set[06.2016 -] B401 |
71127-BZ010 |
US $4.08 |
||
|
71410C
|
71410C
9004A-46143 Clip[06.2016 -] B401 |
9004A-46143 |
US $1.43 |
||
|
71430C
|
71430C
90044-68185-B1 Clip(For Rear Seat)[06.2016 -] B401 DK.GRAY,TRIM4# |
90044-68185-B1 |
US $2.87 |
||
|
71511S
|
71511S
71501-BZ350
Pad, Front Seat Cushion, Rh(For Separate Type)
[06.2016 -] B401 |
71501-BZ350 |
— | ||
|
71521A
|
71521A
71147-B1020 Silencer, Seat Spring[06.2016 -] B401 |
71147-B1020 |
US $10.93 |
||
|
71537C
|
71537C
71537-BZ030
Protector, Front Seat Cushion Edge, Rh
[06.2016 -] B401 |
71537-BZ030 |
— | ||
|
71551S
|
71551S
71505-BZ420
Pad, Front Seat Back, Rh(For Separate Type)
[06.2016 -] B401 |
71505-BZ420 |
— | ||
|
71571
|
71571
71147-B2040 Silencer, Seat Spring[06.2016 -] B401 |
71147-B2040 |
US $8.15 |
||
|
71811D
|
71811D
71811-BZ240-B0
Shield, Front Seat Cushion, Rh
[06.2016 -] B401 DK.GRAY,TRIM4# |
71811-BZ240-B0 |
— | ||
|
71825C
|
71825C
72815-B1010 Plate[06.2016 -] B401 |
72815-B1010 |
US $1.75 |
||
|
71831B
|
71831B
71831-BZ040-B0
Cover, Front Seat Hinge, Rh
[06.2016 -] B401 DK.GRAY,TRIM4# |
71831-BZ040-B0 |
— | ||
|
72137B
|
72137B
72137-BZ040
Cover, Seat Track, Rh
[06.2016 -] B401 |
72137-BZ040 |
— | ||
|
72211
|
72211
72211-BZ120
Handle, Seat Track Adjusting
[06.2016 -] B401 |
72211-BZ120 |
— | ||
|
72525A
|
72525A
72525-BZ110-B0
Handle, Reclining Adjuster Release, Rh
[06.2016 -] B401 DK.GRAY,TRIM4# |
72525-BZ110-B0 |
— | ||
|
72810C
|
72810C
72810-BZ120-E0
Armrest Assy, Front Seat, Center
[06.2016 -] B401 BROWN,TRIM4# |
72810-BZ120-E0 |
— | ||
|
72848B
|
72848B
72848-BZ020-B0
Cap, Seat Armrest, No.1
[06.2016 -] B401 DK.GRAY,TRIM4# |
72848-BZ020-B0 |
— | ||
|
73949
|
73949
73949-BZ050
Cap
[06.2016 -] B401 |
73949-BZ050 |
— | ||
|
15549B4010
|
15549B4010
15549-B4010 Clamp, Wiring Harness |
15549-B4010 |
US $1.75 |
||
|
84139B1010
|
84139B1010
84139-B1010 New Genuine Part |
84139-B1010 |
US $2.15 |
||
|
9004105424
|
9004105424
90041-05424 New Genuine Part |
90041-05424 |
US $4.84 |
||
|
9004105547
|
9004105547
90041-05547 New Genuine Part |
90041-05547 |
US $3.40 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
from US $0.78 |
||
|
9052001002
|
9052001002
90520-01002
Ring, Shaft Snap(For Vent Window Control)
|
90520-01002 |
— | ||
| replacement | |||||
|
9052001002
|
9052001002
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle) |
90520-01274 |
from US $0.91 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.76 |
||
|
9454201400
|
9454201400
94542-01400 Spacer, Center Seat Hinge |
94542-01400 |
US $2.87 |
||
