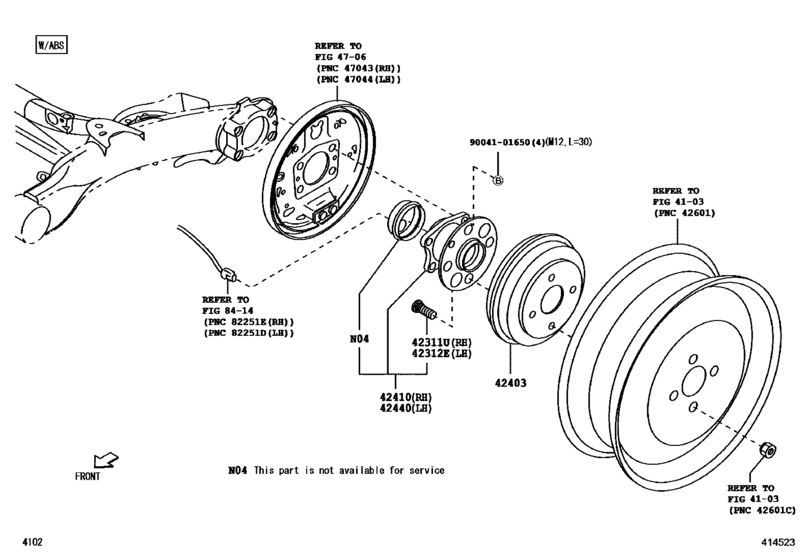

Rear Axle Shaft & Hub ([06.2016 - ] W/ABS (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311U
|
42311U
90049-12056 Bolt, Hub (For Rear Axle)[06.2016 -] B401 |
90049-12056 |
from US $4.29 |
||
|
42312E
|
42312E
90049-12056 Bolt, Hub (For Rear Axle)[06.2016 -] B401 |
90049-12056 |
from US $4.29 |
||
|
42403
|
42403
42431-BZ160
Drum Sub-Assy, Rear Brake
[06.2016 -] B401 |
42431-BZ160 |
— | ||
|
42410
|
42410
42410-BZ130
Hub & Bearing Assy, Rear Axle, Rh
[06.2016 -] B401..4FC; B401..5F ABS (ANTI-LOCK BRK SYSTM)-ABS |
42410-BZ130 |
— | ||
|
42440
|
42440
42410-BZ130
Hub & Bearing Assy, Rear Axle, Rh
[06.2016 -] B401..4FC; B401..5F ABS (ANTI-LOCK BRK SYSTM)-ABS |
42410-BZ130 |
— | ||
|
9004101650
|
9004101650
90041-01650 Bolt (For Rear Axle Bearing Rh) |
90041-01650 |
US $4.30 |
