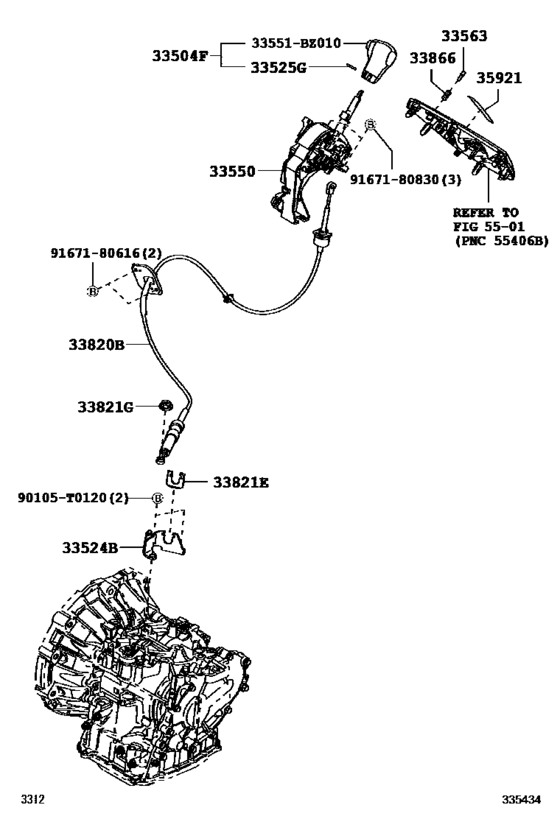

Shift Lever & Retainer ([06.2016 - ] (1606- )4FC) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-BZ240-B0
Knob Sub-Assy, Shift Lever
[06.2016 -] B401..4FC..E DK.GRAY,TRIM4# |
33504-BZ240-B0 |
— | ||
|
33524B
|
33524B
33524-BZ030
Bracket, Control Cable
[06.2016 -] B401..4FC |
33524-BZ030 |
— | ||
|
33525G
|
33525G
33525-BZ010
Ring, Shift Lever
[06.2016 -] B401..4FC |
33525-BZ010 |
— | ||
|
33550
|
33550
33550-BZ310-C0
Floor Shift Assy, Transmission
[06.2016 -] B401..4FC BLACK,TRIM4# |
33550-BZ310-C0 |
— | ||
|
33563
|
33563
33563-BZ020
Button, Shift Lock Release
[06.2016 -] B401..4FC |
33563-BZ020 |
— | ||
|
33820B
|
33820B
33820-BZ320
Cable Assy, Transmission Control
[06.2016 -] B401..4FC |
33820-BZ320 |
— | ||
|
33821E
|
33821E
33567-B1010 Clamp, Control Shaft TubeCONTROL SHAFT TUBE [06.2016 -] B401..4FC |
33567-B1010 |
US $4.30 |
||
|
33821G
|
33821G
90179-06274 Nut[06.2016 -] B401..4FC |
90179-06274 |
from US $0.68 |
||
|
33866
|
33866
33866-BZ010
Spring, Shift Lock Release
[06.2016 -] B401..4FC |
33866-BZ010 |
— | ||
|
35921
|
35921
35921-BZ010
Plate, Control Position Indicator
[06.2016 -] B401..4FC |
35921-BZ010 |
— | ||
|
90105T0120
|
90105T0120
90105-T0120
New Genuine Part
|
90105-T0120 |
— | ||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
|
9167180830
|
9167180830
91671-80830 BOLT FLANGE |
91671-80830 |
US $1.43 |
