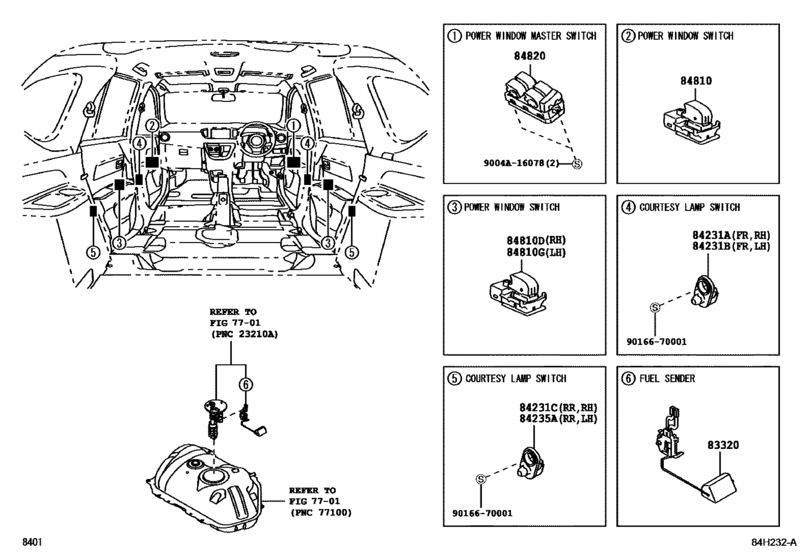

Switch & Relay & Computer ([06.2016 - ] BODY (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83301-BZ200
Gage Assy, Fuel Sender
[06.2016 -] B401 |
83301-BZ200 |
— | ||
|
84231A
|
84231A
84231-BZ010
Switch, Courtesy Lamp
[06.2016 -] B401 FR RH |
84231-BZ010 |
— | ||
| replacement | |||||
|
84231A
|
84231A
84231-52020 Switch Assy, Courtesy Lamp (For Front Door)[06.2016 -] B401 FR RH |
84231-52020 |
from US $11.83 |
||
|
84231B
|
84231B
84231-BZ010
Switch, Courtesy Lamp
[06.2016 -] B401 FR LH |
84231-BZ010 |
— | ||
| replacement | |||||
|
84231B
|
84231B
84231-52020 Switch Assy, Courtesy Lamp (For Front Door)[06.2016 -] B401 FR LH |
84231-52020 |
from US $11.83 |
||
|
84231C
|
84231C
84231-BZ010
Switch, Courtesy Lamp
[06.2016 -] B401 RR RH |
84231-BZ010 |
— | ||
| replacement | |||||
|
84231C
|
84231C
84231-52020 Switch Assy, Courtesy Lamp (For Front Door)[06.2016 -] B401 RR RH |
84231-52020 |
from US $11.83 |
||
|
84235A
|
84235A
84231-BZ010
Switch, Courtesy Lamp
[06.2016 -] B401 RR LH |
84231-BZ010 |
— | ||
| replacement | |||||
|
84235A
|
84235A
84231-52020 Switch Assy, Courtesy Lamp (For Front Door)[06.2016 -] B401 RR LH |
84231-52020 |
from US $11.83 |
||
|
84810
|
84810
84810-BZ120
Switch Assy, Power Window Regulator
[06.2016 -] B401 PASSENGER |
84810-BZ120 |
— | ||
|
84810D
|
84810D
84810-BZ120
Switch Assy, Power Window Regulator
[06.2016 -] B401 REAR RH |
84810-BZ120 |
— | ||
|
84810G
|
84810G
84810-BZ120
Switch Assy, Power Window Regulator
[06.2016 -] B401 REAR LH |
84810-BZ120 |
— | ||
|
84820
|
84820
84820-BZ230
Master Switch Assy, Power Window Regulator
[06.2016 -] B401 DRIVER |
84820-BZ230 |
— | ||
|
9016670001
|
9016670001
90166-70001 Screw Hex Lobular |
90166-70001 |
US $1.08 |
||
