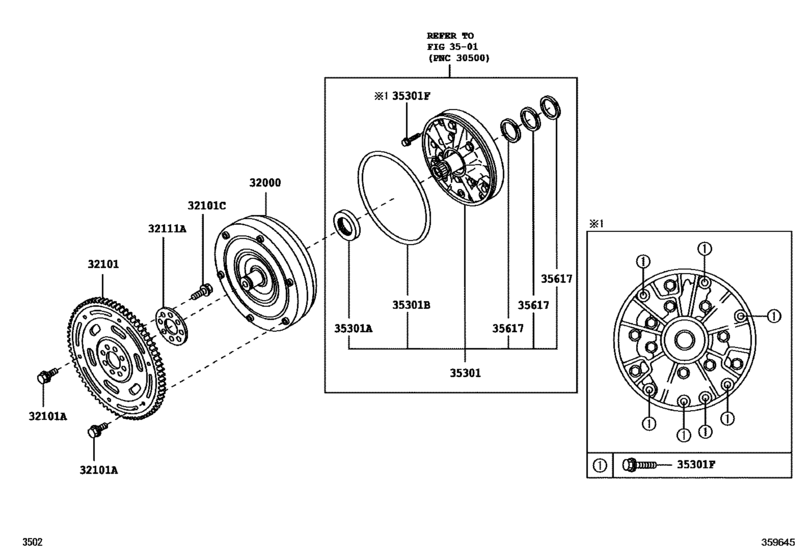

Torque Converter, Front Oil Pump & Chain (Atm) ([06.2016 - ] (1606- )4FC) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- E
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-B1140
Converter Assy, Torque
[06.2016 - 11.2016] B401..4FC |
32000-B1140 |
— | ||
| replacement | |||||
|
32000
|
32000
32000-B1141
Converter Assy, Torque
[06.2016 - 11.2016] B401..4FC |
32000-B1141 |
— | ||
|
32000
|
32000
32000-B1141
Converter Assy, Torque
[12.2016 -] B401..4FC |
32000-B1141 |
— | ||
|
32101
|
32101
32101-BZ050
Gear Sub-Assy, Drive Plate & Ring
[06.2016 -] B401..4FC |
32101-BZ050 |
— | ||
|
32101A
|
32101A
90041-05273 Bolt(For Drive Plate & Torque Converter Setting)[06.2016 -] B401..4FC SILVER |
90041-05273 |
from US $0.82 |
||
|
32101A
|
32101A
90041-05281 Bolt(For Drive Plate & Torque Converter Setting)[06.2016 -] B401..4FC M8,L=9.5,BLACK |
90041-05281 |
from US $2.30 |
||
|
32101C
|
32101C
9004A-10200 Bolt, Hexagon(For Drive Plate Setting)[06.2016 -] B401..4FC |
9004A-10200 |
from US $0.70 |
||
|
32111A
|
32111A
32113-BZ030
Plate(For Pump Impeller Drive Plate)
[06.2016 -] B401..4FC |
32113-BZ030 |
— | ||
|
35301
|
35301
35310-B1050 Body Sub-Assy, Front Oil Pump[06.2016 -] B401..4FC |
35310-B1050 |
from US $486.30 |
||
|
35301A
|
35301A
90043-11336 Seal, Oil (For Front Oil Pump)[06.2016 -] B401..4FC |
90043-11336 |
from US $6.27 |
||
|
35301B
|
35301B
90043-01161 Ring, O (For Front Oil Pump Body)[06.2016 -] B401..4FC |
90043-01161 |
US $12.01 |
||
|
35301F
|
35301F
90041-05122 Bolt (For Front Oil Pump Setting)[06.2016 -] B401..4FC |
90041-05122 |
US $1.75 |
||
|
35617
|
35617
35653-B1010 Ring, Clutch Drum Oil Seal[06.2016 -] B401..4FC |
35653-B1010 |
from US $2.47 |
||
