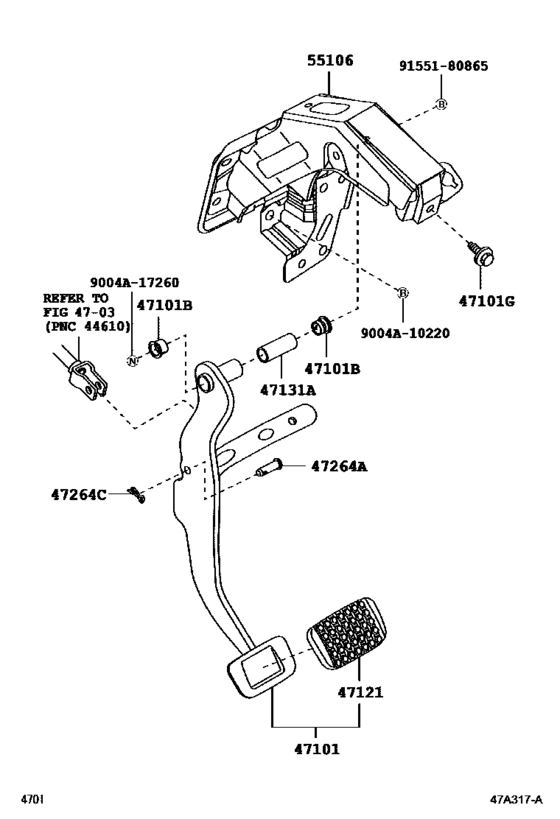

Brake Pedal & Bracket ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- G
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47110-BZ450
Pedal Sub-Assy, Brake
[06.2016 -] B401..4FC |
47110-BZ450 |
— | ||
|
47101B
|
47101B
9004A-38021 Bush(For Clutch Pedal Spring)[06.2016 -] B401 |
9004A-38021 |
US $2.69 |
||
|
47101G
|
47101G
9004A-11333
Bolt, Brake Pedal Stop, No.1
[06.2016 -] B401 |
9004A-11333 |
— | ||
|
47121
|
47121
47121-BZ040
Pad, Brake Pedal
[06.2016 -] B401..4FC |
47121-BZ040 |
— | ||
|
47131A
|
47131A
90045-60615 Spacer(For Clutch Release Sector)[06.2016 -] B401 |
90045-60615 |
US $4.51 |
||
|
47264A
|
47264A
90042-40151 Pin(For Push Rod)[06.2016 -] B401 |
90042-40151 |
US $2.33 |
||
|
47264C
|
47264C
90044-68076 Clip(For Push Rod Clevis Pin)[06.2016 -] B401 |
90044-68076 |
US $3.40 |
||
| replacement | |||||
|
47264C
|
47264C
90044-68337 Clip(For Push Rod Clevis Pin)[06.2016 -] B401 |
90044-68337 |
US $2.34 |
||
|
55106
|
55106
55106-BZ430
Support Sub-Assy, Brake Pedal
[06.2016 -] B401 |
55106-BZ430 |
— | ||
|
9004A17260
|
9004A17260
9004A-17260 Nut(For Clutch Pedal Stopper) |
9004A-17260 |
US $1.75 |
||
|
9155180865
|
9155180865
91551-80865 Shaft, Clutch Pedal |
91551-80865 |
US $1.79 |
||
