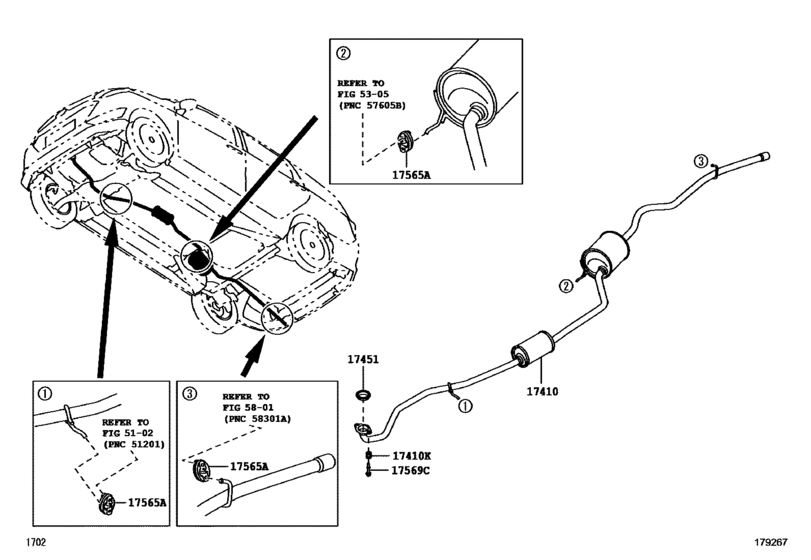

Exhaust Pipe ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- G
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-BZ720
Pipe Assy, Exhaust, Front
[06.2016 -] 3NRVE..B401 |
17410-BZ720 |
— | ||
|
17410K
|
17410K
17152-BZ010
Spring, Exhaust Pipe
[06.2016 -] 3NRVE..B401 |
17152-BZ010 |
— | ||
| replacement | |||||
|
17410K
|
17410K
90501-35028 Spring, Exhaust Pipe[06.2016 -] 3NRVE..B401 |
90501-35028 |
from US $3.14 |
||
|
17451
|
17451
17451-B0010 Gasket, Exhaust Pipe, Center[06.2016 -] 3NRVE..B401 |
17451-B0010 |
US $27.72 |
||
|
17565A
|
17565A
17567-87703 Support, Exhaust Pipe, No.2[06.2016 -] 3NRVE..B401 |
17567-87703 |
US $17.38 |
||
|
17569C
|
17569C
9004A-10221
Bolt, Exhaust Pipe Support
[06.2016 -] 3NRVE..B401 |
9004A-10221 |
— | ||
