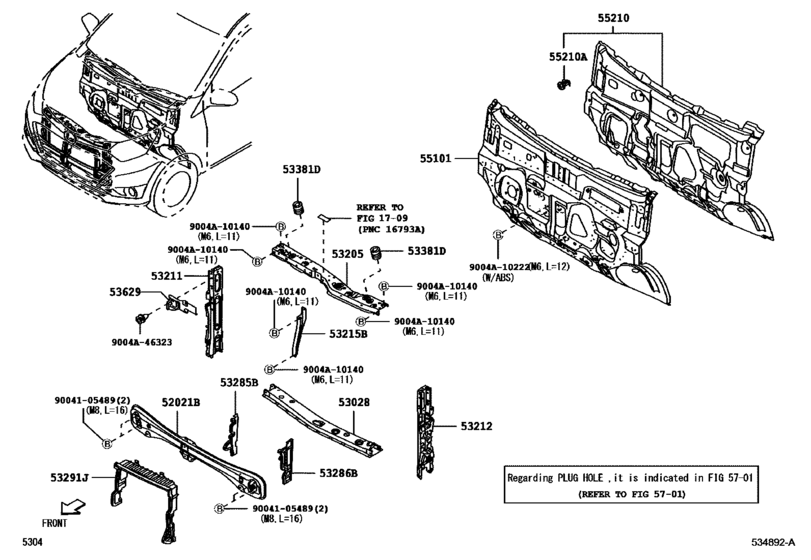

Front Fender Apron & Dash Panel ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- G
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021B
|
52021B
52131-BZ120
Reinforcement Sub-Assy, Front Bumper
[06.2016 -] B401 |
52131-BZ120 |
— | ||
|
53028
|
53028
53028-BZ160
Support Sub-Assy, Radiator, Lower
[06.2016 -] B401 |
53028-BZ160 |
— | ||
|
53205
|
53205
53205-BZ170
Support Sub-Assy, Radiator, Upper
[06.2016 -] B401 |
53205-BZ170 |
— | ||
|
53211
|
53211
53211-BZ210
Support, Radiator, Rh
[06.2016 -] B401 |
53211-BZ210 |
— | ||
|
53212
|
53212
53211-BZ210
Support, Radiator, Rh
[06.2016 -] B401 |
53211-BZ210 |
— | ||
|
53215B
|
53215B
53215-BZ180
Support, Hood Lock
[06.2016 -] B401 |
53215-BZ180 |
— | ||
|
53285B
|
53285B
53037-BZ020
Seal, Radiator Side Air, No.1
[06.2016 -] B401 RH |
53037-BZ020 |
— | ||
|
53286B
|
53286B
53038-BZ010
Seal, Radiator Side Air, No.2
[06.2016 -] B401 LH |
53038-BZ010 |
— | ||
|
53291J
|
53291J
53039-BZ020
Seal, Radiator Support
[06.2016 -] B401 UPR |
53039-BZ020 |
— | ||
|
53381D
|
53381D
53381-BZ010 Clip(For Hood To Radiator Support Seal)[06.2016 -] B401 |
53381-BZ010 |
US $4.45 |
||
|
53629
|
53629
53629-BZ090
Cover, Hood Lock Control Cable
[06.2016 -] B401 |
53629-BZ090 |
— | ||
|
55101
|
55101
55101-BZL00
Panel Sub-Assy, Dash
[06.2016 -] B401..4FC |
55101-BZL00 |
— | ||
|
55210
|
55210
55210-BZ490
Insulator Assy, Dash Panel
[06.2016 -] B401 |
55210-BZ490 |
— | ||
|
55210A
|
55210A
90467-11122 Clip[06.2016 -] B401 |
90467-11122 |
US $1.79 |
||
|
9004A46323
|
9004A46323
9004A-46323 Piece, Rear Bumper |
9004A-46323 |
US $3.40 |
||
|
9004105489
|
9004105489
90041-05489 New Genuine Part |
90041-05489 |
US $3.05 |
