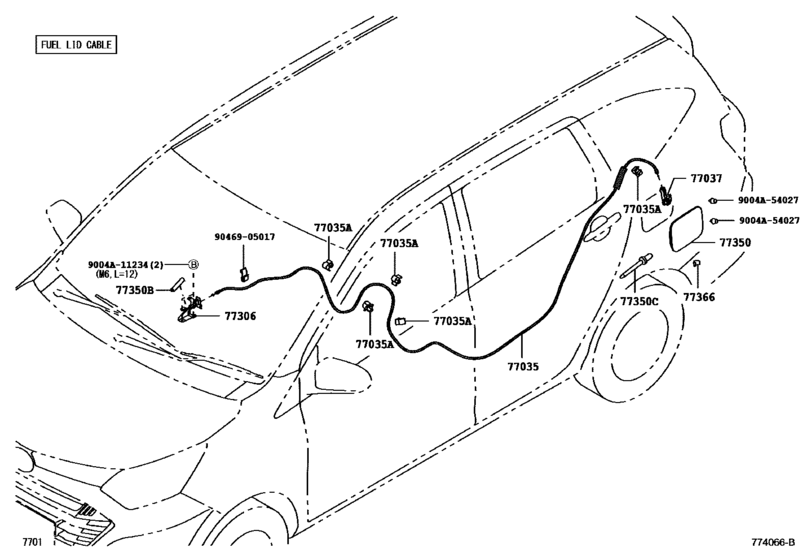

Fuel Tank & Tube ([06.2016 - ] FUEL LID CABLE (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- G
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77035
|
77035
77035-BZ220
Cable Sub-Assy, Fuel Lid Lock Control
[06.2016 -] B401 |
77035-BZ220 |
— | ||
|
77035A
|
77035A
9004A-46242
Clamp (For Fuel Lid Lock Control Cable)
[06.2016 -] B401 |
9004A-46242 |
— | ||
|
77037
|
77037
77037-BZ090
Lock Sub-Assy, Fuel Filler Opening Lid
[06.2016 -] B401 |
77037-BZ090 |
— | ||
|
77306
|
77306
77306-BZ040
Lever Sub-Assy, Fuel Lid Lock Open
[06.2016 -] B401 |
77306-BZ040 |
— | ||
|
77350
|
77350
77350-BZ130
Lid Assy, Fuel Filler Opening
[06.2016 -] B401 |
77350-BZ130 |
— | ||
|
77350B
|
77350B
55358-BZ110
Cushion(For Fuel Filler Opening Lid)
[06.2016 -] B401 |
55358-BZ110 |
— | ||
|
77350C
|
77350C
90042-69027 Rivet[06.2016 -] B401 |
90042-69027 |
US $3.58 |
||
|
77366
|
77366
77366-B2050 Spring, Fuel Filler Opening Lid Hinge[06.2016 -] B401 |
77366-B2050 |
US $4.66 |
||
|
9004A11234
|
9004A11234
9004A-11234
New Genuine Part
|
9004A-11234 |
— | ||
|
9004A54027
|
9004A54027
9004A-54027 Cushion(For Fuel Inlet Box Cover) |
9004A-54027 |
US $0.91 |
||
|
9046905017
|
9046905017
90469-05017
Clamp (For Fuel Lid Lock Control Cable)
|
90469-05017 |
— |
