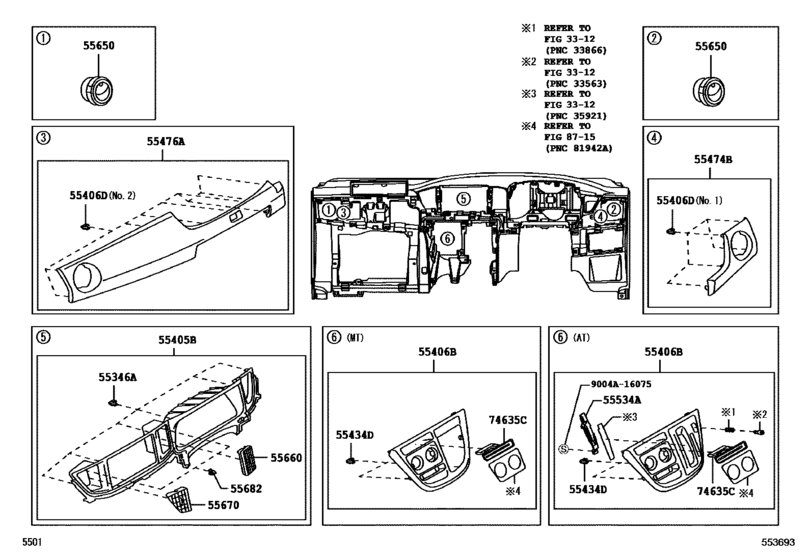

Instrument Panel & Glove Compartment ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- G
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55346A
|
55346A
90467-05171 Clip, Instrument Panel[06.2016 -] B401 |
90467-05171 |
from US $0.61 |
||
|
55405B
|
55405B
55405-BZ820-B0
Panel Sub-Assy, Instrument Cluster Finish, Center
[06.2016 -] B401 DK.GRAY,TRIM4# |
55405-BZ820-B0 |
— | ||
|
55406B
|
55406B
55406-BZ620-B2
Panel Sub-Assy, Instrument Cluster Finish, Lower Center
[06.2016 -] B401..4FC..G SILVER,TRIM4# |
55406-BZ620-B2 |
— | ||
|
55406D
|
55406D
90467-05171 Clip, Instrument Panel[06.2016 -] B401 NO.1 |
90467-05171 |
from US $0.61 |
||
|
55434D
|
55434D
90467-05171 Clip, Instrument Panel[06.2016 -] B401 |
90467-05171 |
from US $0.61 |
||
|
55474B
|
55474B
55474-BZ060-E1
Garnish, Instrument Cluster Finish Panel
[06.2016 -] B401 OAK,TRIM4# |
55474-BZ060-E1 |
— | ||
|
55476A
|
55476A
55476-BZ040-E1
Garnish, Instrument Cluster Finish Panel, No.3
[06.2016 -] B401 OAK,TRIM4# |
55476-BZ040-E1 |
— | ||
|
55534A
|
55534A
55534-BZ030
Cover, Illumination Lamp Hole
[06.2016 -] B401..4FC |
55534-BZ030 |
— | ||
|
55650
|
55650
55650-BZ150-C0
Register Assy, Instrument Panel, No.1
[06.2016 -] B401..G BLACK,TRIM4# |
55650-BZ150-C0 |
— | ||
|
55660
|
55660
55660-BZ180-B0
Register Assy, Instrument Panel, No.2
[06.2016 -] B401 DK.GRAY,TRIM4# |
55660-BZ180-B0 |
— | ||
|
55670
|
55670
55670-BZ170-B0
Register Assy, Instrument Panel, No.3
[06.2016 -] B401 DK.GRAY,TRIM4# |
55670-BZ170-B0 |
— | ||
|
55682
|
55682
55682-BZ010
Spring, Instrument Panel Register Support
[06.2016 -] B401 |
55682-BZ010 |
— | ||
|
74635C
|
74635C
74635-BZ050-B2
Holder, Card
[06.2016 -] B401..G SILVER,TRIM4# |
74635-BZ050-B2 |
— |
