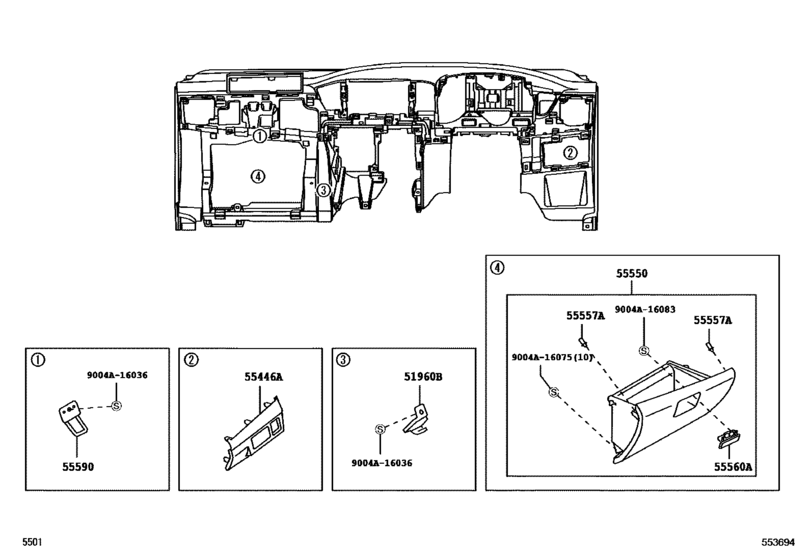

Instrument Panel & Glove Compartment ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- G
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51960B
|
51960B
51961-BZ160-B0
Hook Assy, Front
[06.2016 -] B401 DK.GRAY,TRIM4# |
51961-BZ160-B0 |
— | ||
|
55446A
|
55446A
55446-BZ040-B0
Base, Switch Hole, No.1
[06.2016 -] B401 DK.GRAY,TRIM4# |
55446-BZ040-B0 |
— | ||
|
55550
|
55550
55550-BZ120-B0
Door Assy, Glove Compartment
[06.2016 -] B401 DK.GRAY,TRIM4# |
55550-BZ120-B0 |
— | ||
|
55557A
|
55557A
55557-B2040 Cushion, Glove Compartment Door Check[06.2016 -] B401 |
55557-B2040 |
US $1.89 |
||
|
55560A
|
55560A
55560-BZ050-B0
Lock Assy, Glove Compartment Door
[06.2016 -] B401 DK.GRAY,TRIM4# |
55560-BZ050-B0 |
— | ||
|
55590
|
55590
55590-BZ020
Plate Assy, Grove Compartment Door Lock Striker
[06.2016 -] B401 |
55590-BZ020 |
— | ||
|
9004A16036
|
9004A16036
9004A-16036 Clip, No.2(For Cowl Side Trim) |
9004A-16036 |
US $1.97 |
