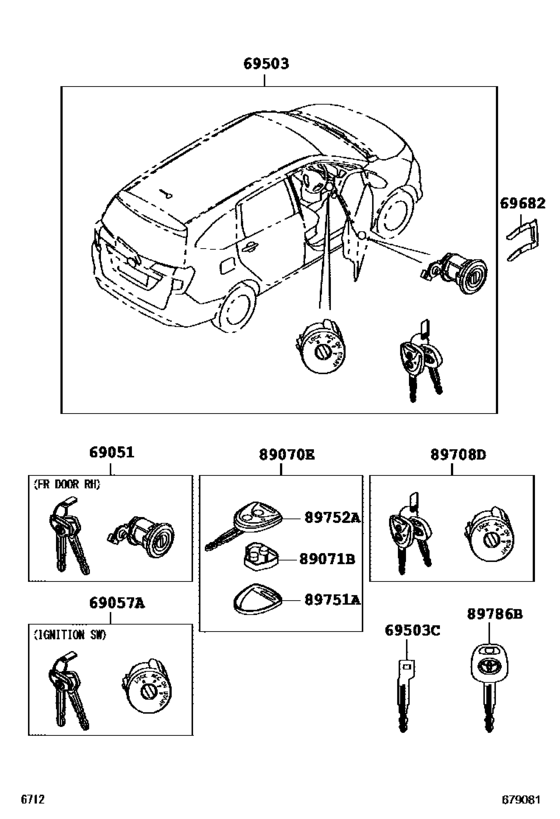

Lock Cylinder Set ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- G
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-BZ150
Cylinder & Key Set, Door Lock, Rh
[06.2016 -] B401 |
69051-BZ150 |
— | ||
|
69057A
|
69057A
69057-BZ130
Cylinder & Key Set, Ignition Switch Lock
[06.2016 -] B401 |
69057-BZ130 |
— | ||
|
69503
|
69503
69005-BZ770
Cylinder Set, Lock
[06.2016 -] B401 |
69005-BZ770 |
— | ||
|
69503C
|
69503C
69516-BZ020
Key, Sub
[06.2016 -] B401 |
69516-BZ020 |
— | ||
|
69682
|
69682
69682-B2020 Retainer, Lock Cylinder[06.2016 -] B401 |
69682-B2020 |
US $2.48 |
||
|
89070E
|
89070E
89070-BZ270
Transmitter Assy, Door Control
[06.2016 -] B401 |
89070-BZ270 |
— | ||
|
89071B
|
89071B
89071-BZ050
Module Set, Transmitter Sub-Assy, Door Control
[06.2016 -] B401 |
89071-BZ050 |
— | ||
|
89708D
|
89708D
89708-BZ130
Cylinder Set, Lock W/transponder Key Transmitter
[06.2016 -] B401 |
89708-BZ130 |
— | ||
|
89751A
|
89751A
89751-BZ030
Cover, Transmitter Housing
[06.2016 -] B401 |
89751-BZ030 |
— | ||
|
89752A
|
89752A
89752-BZ200
Case, Transmitter Housing
[06.2016 -] B401 |
89752-BZ200 |
— | ||
|
89786B
|
89786B
89785-BZ190
Transmitter, Transponder Key Sub
[06.2016 -] B401 BLANK KEY |
89785-BZ190 |
— |
