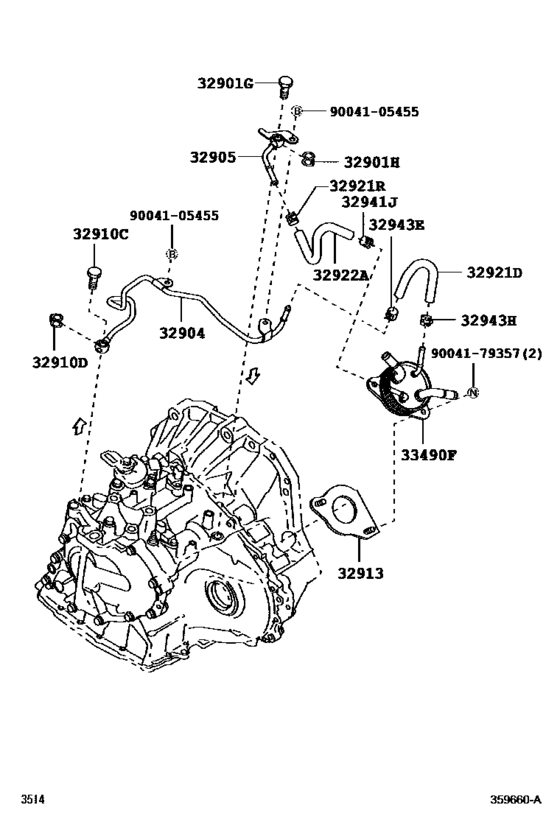

Oil Cooler & Tube (Atm) ([06.2016 - ] (1606- )4FC) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- G
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32901G
|
32901G
90044-01081 Bolt, Union(For Oil Cooler)[06.2016 -] B401..4FC |
90044-01081 |
US $5.02 |
||
|
32901H
|
32901H
90044-30329 Gasket(For Oil Cooler Union)[06.2016 -] B401..4FC |
90044-30329 |
US $3.23 |
||
|
32904
|
32904
32904-B1070
Tube Sub-Assy, Oil Cooler Inlet, No.1
[06.2016 -] B401..4FC |
32904-B1070 |
— | ||
|
32905
|
32905
32905-B1100
Tube Sub-Assy, Oil Cooler Outlet, No.1
[06.2016 -] B401..4FC |
32905-B1100 |
— | ||
|
32910C
|
32910C
90044-01081 Bolt, Union(For Oil Cooler)[06.2016 -] B401..4FC |
90044-01081 |
US $5.02 |
||
|
32910D
|
32910D
90044-30329 Gasket(For Oil Cooler Union)[06.2016 -] B401..4FC |
90044-30329 |
US $3.23 |
||
|
32913
|
32913
32913-B1010
Bracket, Oil Cooler
[06.2016 -] B401..4FC |
32913-B1010 |
— | ||
|
32921D
|
32921D
32941-B1100
Hose(For Oil Cooler Inlet)
[06.2016 -] B401..4FC |
32941-B1100 |
— | ||
|
32921R
|
32921R
90044-67590 Clip, No.1(For Oil Cooler Hose)[06.2016 -] B401..4FC |
90044-67590 |
US $4.84 |
||
|
32922A
|
32922A
32942-B1100
Hose(For Oil Cooler Outlet)
[06.2016 -] B401..4FC |
32942-B1100 |
— | ||
|
32941J
|
32941J
90044-67590 Clip, No.1(For Oil Cooler Hose)[06.2016 -] B401..4FC |
90044-67590 |
US $4.84 |
||
|
32943E
|
32943E
90044-67590 Clip, No.1(For Oil Cooler Hose)[06.2016 -] B401..4FC |
90044-67590 |
US $4.84 |
||
|
32943H
|
32943H
90044-67590 Clip, No.1(For Oil Cooler Hose)[06.2016 -] B401..4FC |
90044-67590 |
US $4.84 |
||
|
33490F
|
33490F
33490-B1040 Cooler Assy, Transmission Oil[06.2016 -] B401..4FC |
33490-B1040 |
US $146.76 |
||
|
9004105455
|
9004105455
90041-05455 New Genuine Part |
90041-05455 |
US $1.60 |
||
|
9004179357
|
9004179357
90041-79357 New Genuine Part |
90041-79357 |
US $1.75 |
