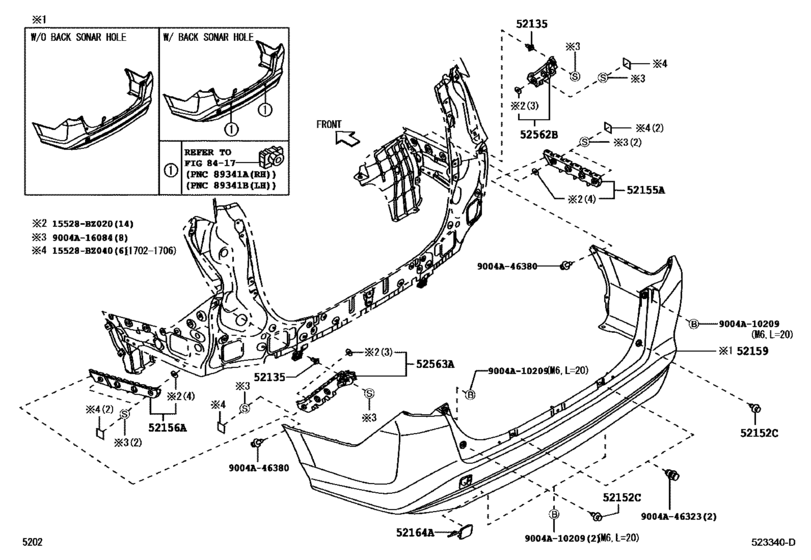

Rear Bumper & Bumper Stay ([06.2016 - 06.2017] (1606-1706)) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- G
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52135
|
52135
9004A-18034 Grommet, Rear Bumper Stay[06.2016 -] B401 |
9004A-18034 |
US $2.18 |
||
|
52152C
|
52152C
90044-67567 Clip, Rear Bumper Side[06.2016 - 05.2017] B401 |
90044-67567 |
from US $0.51 |
||
|
52155A
|
52155A
52155-BZ180
Support, Rear Bumper Side, Rh
[06.2016 - 06.2017] B401 |
52155-BZ180 |
— | ||
|
52156A
|
52156A
52156-BZ180
Support, Rear Bumper Side, Lh
[06.2016 - 06.2017] B401 |
52156-BZ180 |
— | ||
|
52159
|
52159
52159-BZF10
Cover, Rear Bumper
[06.2016 -] B401 |
52159-BZF10 |
— | ||
|
52164A
|
52164A
52164-BZ180
Plate, Rear Bumper, Lh
[06.2016 -] B401 |
52164-BZ180 |
— | ||
|
52562B
|
52562B
52562-BZ030
Retainer, Rear Bumper, Upper Rh
[06.2016 - 06.2017] B401 |
52562-BZ030 |
— | ||
|
52563A
|
52563A
52563-BZ020
Retainer, Rear Bumper, Upper Lh
[06.2016 - 06.2017] B401 |
52563-BZ020 |
— | ||
|
9004A46323
|
9004A46323
9004A-46323 Piece, Rear Bumper |
9004A-46323 |
US $3.40 |
||
|
9004A46380
|
9004A46380
9004A-46380
Clip(For Front Bumper Retainer)
|
9004A-46380 |
— |
