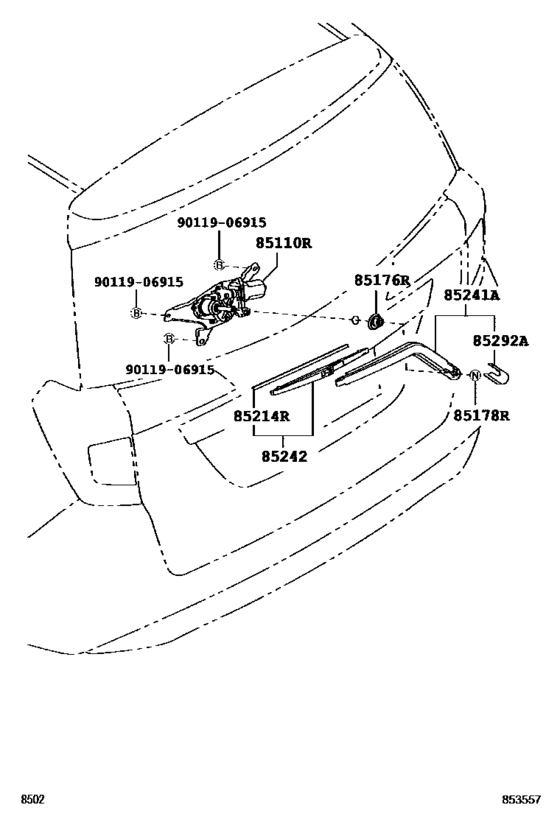

Rear Wiper ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- G
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110R
|
85110R
85130-BZ190
Motor Assy, Rear Wiper
[06.2016 -] B401 |
85130-BZ190 |
— | ||
|
85176R
|
85176R
85176-87603 Cap, Rear Wiper Link[06.2016 -] B401 |
85176-87603 |
US $5.68 |
||
|
85178R
|
85178R
9004A-17218 Nut (For Rear Wiper Arm Setting)[06.2016 -] B401 |
9004A-17218 |
US $1.75 |
||
|
85214R
|
85214R
85243-BZ100 Rubber, Rear Wiper[06.2016 -] B401 |
85243-BZ100 |
US $7.33 |
||
|
85241A
|
85241A
85241-BZ150 Arm, Rear Wiper[06.2016 -] B401 |
85241-BZ150 |
US $27.19 |
||
|
85242
|
85242
85242-BZ110 Blade, Rr Wiper[06.2016 -] B401 |
85242-BZ110 |
US $16.85 |
||
|
85292A
|
85292A
85292-BZ080 Cap, Rear Wiper Arm Head[06.2016 -] B401 |
85292-BZ080 |
US $9.63 |
||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
