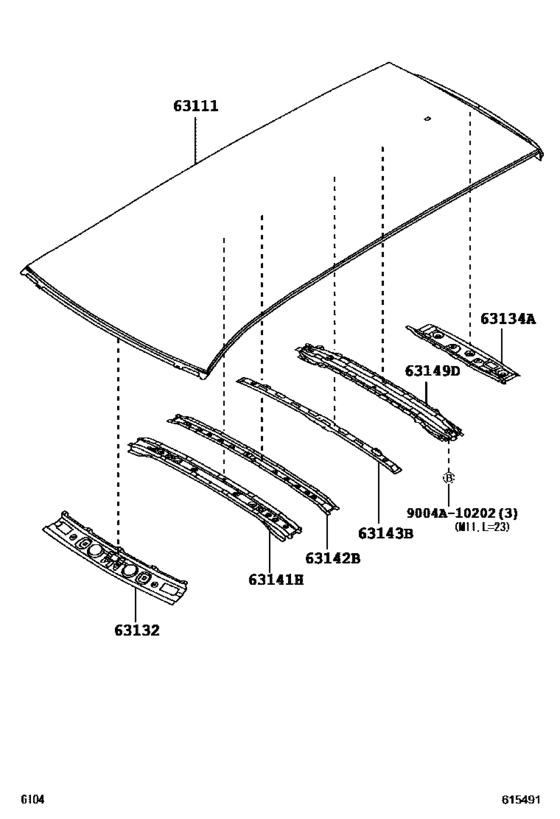

Roof Panel & Back Window Glass ([06.2016 - ] (1606- )) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- G
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63111
|
63111
63111-BZ260
Panel, Roof
[06.2016 -] B401 |
63111-BZ260 |
— | ||
|
63132
|
63132
63132-BZ230
Panel, Windshield Header, Inner
[06.2016 -] B401 |
63132-BZ230 |
— | ||
|
63134A
|
63134A
63134-BZ240
Frame, Back Door Opening, Upper
[06.2016 -] B401 |
63134-BZ240 |
— | ||
|
63141H
|
63141H
63141-BZ170
Reinforcement, Roof Panel, Center
[06.2016 -] B401 |
63141-BZ170 |
— | ||
|
63142B
|
63142B
63142-BZ180
Reinforcement, Roof Panel, Rear
[06.2016 -] B401 |
63142-BZ180 |
— | ||
|
63143B
|
63143B
63143-BZ090
Reinforcement, Roof Panel, No.3
[06.2016 -] B401 |
63143-BZ090 |
— | ||
|
63149D
|
63149D
63208-BZ020
Reinforcement, Roof Panel, No.8
[06.2016 -] B401 |
63208-BZ020 |
— |
