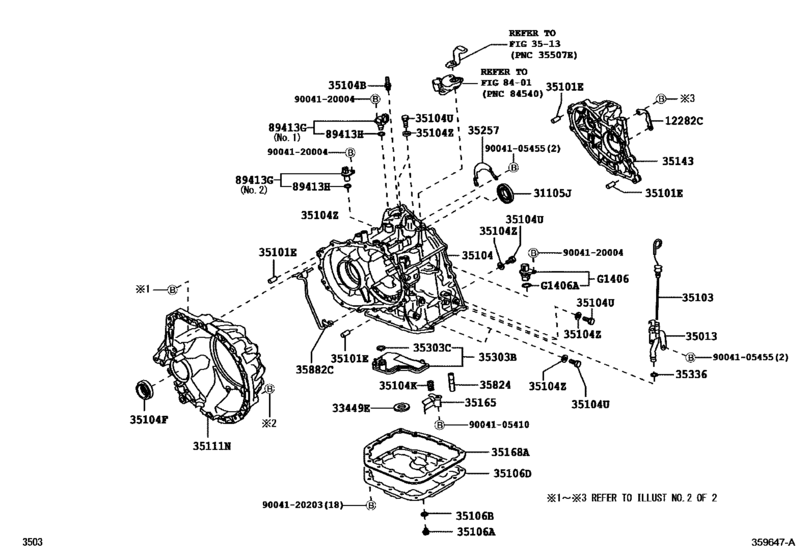

Transmission Case & Oil Pan (Atm) ([06.2016 - ] (1606- )4FC) Diagram Toyota CALYA
- Year
- 2016 - 2018
- Sales region
- General
- Frame
- B401
- grade
- G
- ENGINE
- 3NRVE
- TRANSMISSION
- ATM
- From
- 06.2016
- Gear Shift Type
- 4FC
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12282C
|
12282C
12282-B1030 Hanger, Engine, No.2[06.2016 -] 3NRVE..B401..4FC |
12282-B1030 |
US $3.64 |
||
|
31105J
|
31105J
90043-11316 Seal, Oil, No.2(For Transaxle Case)[06.2016 -] B401..4FC |
90043-11316 |
from US $13.87 |
||
|
33449E
|
33449E
33449-B2010 Magnet, TransaxleOIL CLEANER (FOR TRANSMISSION) [06.2016 -] B401..4FC |
33449-B2010 |
from US $3.58 |
||
|
35013
|
35013
35013-B1080
Tube Sub-Assy, Transmission Oil Filler
[06.2016 -] B401..4FC |
35013-B1080 |
— | ||
|
35101E
|
35101E
90042-50157 Pin, Straight(For Manual Transmission Case)[06.2016 -] B401..4FC |
90042-50157 |
from US $1.12 |
||
|
35103
|
35103
35103-B1030
Gage Sub-Assy, Transmission Oil Level
[06.2016 -] B401..4FC |
35103-B1030 |
— | ||
|
35104
|
35104
35141-B1030 Case Sub-Assy, Automatic Transmission[06.2016 -] B401..4FC |
35141-B1030 |
US $1,008.13 |
||
|
35104B
|
35104B
31477-B0010 Plug, Breather, No.1 (Atm)[06.2016 -] B401..4FC |
31477-B0010 |
US $6.12 |
||
|
35104F
|
35104F
90043-11317 Seal, Oil, No.1(For Front Transaxle Case)[06.2016 -] B401..4FC |
90043-11317 |
US $13.26 |
||
|
35104K
|
35104K
90045-01939
Compression Spring, Transaxle Case
[06.2016 -] B401..4FC |
90045-01939 |
— | ||
|
35104U
|
35104U
90041-05404 Bolt (For Transaxle Case)[06.2016 -] B401..4FC |
90041-05404 |
US $3.20 |
||
|
35104Z
|
35104Z
90044-30317 Gasket (For Transaxle Case)[06.2016 -] B401..4FC |
90044-30317 |
US $1.75 |
||
|
35106A
|
35106A
90043-41041 Plug, Water Drain Cock(For Cylinder Block)[06.2016 -] B401..4FC |
90043-41041 |
from US $1.48 |
||
|
35106B
|
35106B
90044-30281 Gasket(For Oil Pan Drain Plug)[06.2016 -] B401..4FC |
90044-30281 |
from US $0.63 |
||
|
35106D
|
35106D
35106-B1070
Pan Sub-Assy, Automatic Transaxle Oil
[06.2016 -] B401..4FC |
35106-B1070 |
— | ||
|
35111N
|
35111N
35111-B1060
Transaxle Housing (Atm)
[06.2016 -] B401..4FC |
35111-B1060 |
— | ||
|
35143
|
35143
35143-B1020 Cover, Transmission Case, Rear[06.2016 -] B401..4FC |
35143-B1020 |
US $174.72 |
||
|
35165
|
35165
45477-B1020
Plate, Transmission Case, No.1
[06.2016 -] B401..4FC |
45477-B1020 |
— | ||
|
35168A
|
35168A
35168-B1050 Gasket, Automatic Transaxle Oil Pan[06.2016 -] B401..4FC |
35168-B1050 |
US $19.36 |
||
|
35257
|
35257
35345-B1030
Plate, Oil Guide
[06.2016 -] B401..4FC |
35345-B1030 |
— | ||
|
35303B
|
35303B
35303-B1020
Strainer Sub-Assy,oil
[06.2016 -] B401..4FC |
35303-B1020 |
— | ||
|
35303C
|
35303C
90043-01364 Ring,o(For Oil Strainer)[06.2016 -] B401..4FC |
90043-01364 |
from US $2.15 |
||
|
35336
|
35336
90043-01160 Ring, O(For Transmission Oil Filler Tube)[06.2016 -] B401..4FC |
90043-01160 |
US $3.23 |
||
|
35824
|
35824
35638-B1020 Seal, Brake Cylinder[06.2016 -] B401..4FC |
35638-B1020 |
US $6.45 |
||
|
35882C
|
35882C
35882-B1010 Tube, Differential Gear Lube Apply[06.2016 -] B401..4FC |
35882-B1010 |
US $18.49 |
||
|
89413G
|
89413G
89413-97202 Sensor, Transmission Revolution[06.2016 -] B401..4FC NO.1 |
89413-97202 |
from US $66.36 |
||
|
89413G
|
89413G
89413-B1040 Sensor, Transmission Revolution[06.2016 -] B401..4FC NO.2 |
89413-B1040 |
US $53.14 |
||
|
89413H
|
89413H
90043-01278 Ring, O[06.2016 -] B401..4FC |
90043-01278 |
US $3.76 |
||
|
9004105410
|
9004105410
90041-05410 New Genuine Part |
90041-05410 |
US $1.60 |
||
|
9004105455
|
9004105455
90041-05455 New Genuine Part |
90041-05455 |
US $1.60 |
||
|
9004120004
|
9004120004
90041-20004 New Genuine Part |
90041-20004 |
US $2.18 |
||
|
9004120203
|
9004120203
90041-20203 Bolt (For Automatic Transmission Oil Pan) |
90041-20203 |
US $2.15 |
||
|
G1406
|
G1406
G1406-B1010 Connector Sub-Assy, Trans Solenoid[06.2016 -] B401..4FC |
G1406-B1010 |
US $36.69 |
||
|
G1406A
|
G1406A
44618-B1010 Ring, O(For Trans Solenoid Connector)[06.2016 -] B401..4FC |
44618-B1010 |
US $4.30 |
