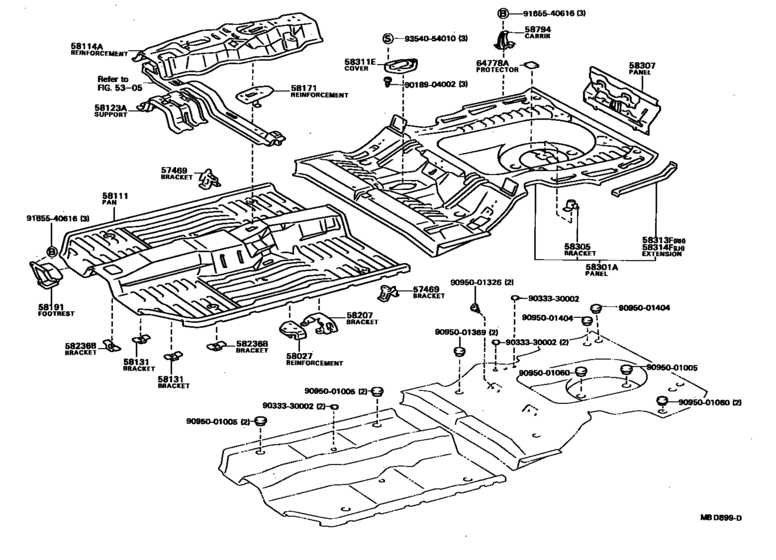

Floor Pan & Lower Back Panel ([08.1982 - ] (8208- )5D) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1985 - 1986
- Sales region
- Japan
- Frame
- CV11
- ENGINE
- 2CTL
- TRANSMISSION
- ATM
- Model
- CAMRY/ VISTA
- From
- 08.1985
- To
- 07.1986
- Grade
- VF
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Vista
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57469
|
57469
57468-32010
Bracket, Front Seat, Outside
[03.1982 - 07.1986] CV1#,SV1# RH |
57468-32010 |
— | ||
|
57469
|
57469
57469-32010
Bracket, Front Seat, Outside
[03.1982 - 07.1986] CV1#,SV1# LH |
57469-32010 |
— | ||
|
58027
|
58027
58027-32010
Reinforcement, Belt Anchor To Floor Pan, No.1
[03.1982 - 07.1986] CV1#,SV1# |
58027-32010 |
— | ||
|
58111
|
58111
58111-32010
Pan, Front Floor
[03.1982 - 07.1986] CV1#,SV1# |
58111-32010 |
— | ||
|
58114A
|
58114A
58114-32900 Reinforcement, Front Floor PanelFRONT FLOOR PANEL [03.1982 - 07.1986] CV1#,SV1# |
58114-32900 |
US $117.94 |
||
|
58123A
|
58123A
58013-32010
Support, Shift & Select Lever
[03.1982 - 07.1986] CV1#,SV1# |
58013-32010 |
— | ||
|
58131
|
58131
58131-32010 Bracket, Front Floor Heat Insulator, No.1[03.1982 - 07.1986] CV1#,SV1# |
58131-32010 |
US $4.08 |
||
|
58171
|
58171
58107-32010 Reinforcement, Parking Brake Base[03.1982 - 07.1986] CV1#,SV1# |
58107-32010 |
US $22.57 |
||
|
58191
|
58191
58191-32020 Footrest, Front FloorFRONT FLOOR [06.1984 - 07.1986] CV1#,SV1# |
58191-32020 |
US $32.18 |
||
|
58207
|
58207
58207-32010
Bracket Sub-Assy, Parking Brake Cable, No.1
[03.1982 - 07.1986] CV1#,SV1# |
58207-32010 |
— | ||
|
58236B
|
58236B
58236-14010 Bracket, Mounting, Floor, No.1[03.1982 - 07.1986] CV1#,SV1# |
58236-14010 |
US $9.17 |
||
|
58301A
|
58301A
58301-32040
Panel Sub-Assy, Rear Floor
[08.1982 - 07.1986] CV1#,SV1#..5D |
58301-32040 |
— | ||
|
58305
|
58305
58305-10011 Bracket Sub-Assy, Spare Wheel Clamp[03.1982 - 07.1986] CV1#,SV1# |
58305-10011 |
US $4.54 |
||
|
58307
|
58307
58307-32070 Panel Sub-Assy, Body Lower BackBODY LOWER BACK [08.1982 - 07.1986] CV1#,SV1#..5D |
58307-32070 |
US $211.12 |
||
| replacement | |||||
|
58307
|
58307
58307-32090 Panel Sub-Assy, Body Lower BackBODY LOWER BACK [08.1982 - 07.1986] CV1#,SV1#..5D |
58307-32090 |
US $212.58 |
||
|
58311E
|
58311E
58325-32010 Cover, Rear Floor Service Hole[03.1982 - 07.1986] CV1#,SV1# |
58325-32010 |
US $29.12 |
||
|
58313F
|
58313F
58313-32030 Extension, Rear Floor Pan To Quarter Panel, RhREAR FLOOR PAN TO QUARTER PANEL, RH [08.1982 - 07.1986] CV1#,SV1#..5D |
58313-32030 |
US $16.16 |
||
|
58314F
|
58314F
58314-32030 Extension, Rear Floor Pan To Quarter Panel, LhREAR FLOOR PAN TO QUARTER PANEL, LH [08.1982 - 07.1986] CV1#,SV1#..5D |
58314-32030 |
US $16.16 |
||
|
58794
|
58794
58791-32020
Carrier, Jack
[08.1982 - 07.1986] CV1#,SV1#..5D |
58791-32020 |
— | ||
|
64778A
|
64778A
64778-14020 Protector, Spare Wheel[03.1982 - 07.1986] CV1#,SV1# |
64778-14020 |
US $8.21 |
||
|
9018904002
|
9018904002
90189-04002 GROMMET |
90189-04002 |
from US $1.92 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.12 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.77 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9095001326
|
9095001326
90950-01326 New Genuine Part |
90950-01326 |
US $3.84 |
||
|
9095001369
|
9095001369
90950-01369 New Genuine Part |
90950-01369 |
US $7.13 |
||
| replacement | |||||
|
9095001369
|
9095001369
90950-01979 New Genuine Part |
90950-01979 |
US $6.64 |
||
|
9095001404
|
9095001404
90950-01404 CLIP |
90950-01404 |
US $1.46 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9354054010
|
9354054010
93540-54010 Screw, Roof Headlining Trim |
93540-54010 |
from US $1.92 |
||
