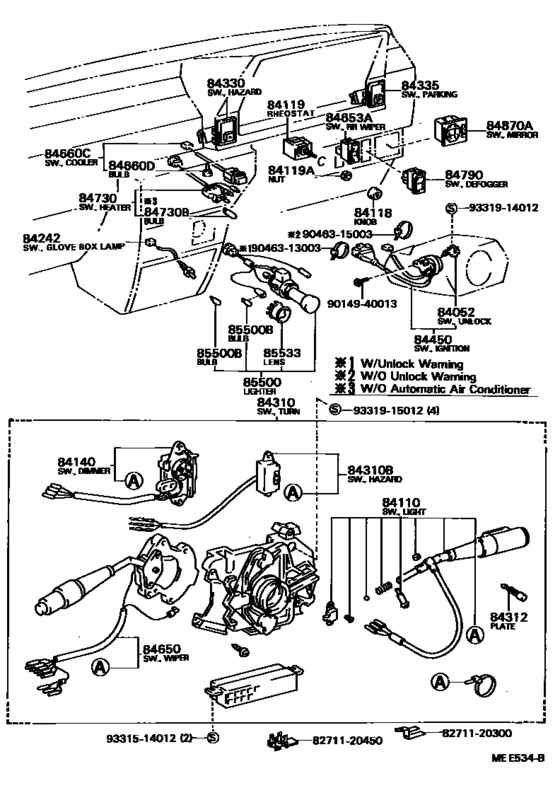

Switch & Relay & Computer ([06.1984 - ] (8406- )) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1985 - 1986
- Sales region
- Japan
- Frame
- CV11
- ENGINE
- 2CTL
- TRANSMISSION
- ATM
- Model
- CAMRY/ VISTA
- From
- 08.1985
- To
- 07.1986
- Grade
- VF
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Vista
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84110
|
84110
84112-29375 Switch Assy, Light Control, No.1[06.1984 - 07.1986] CV1#,SV1# |
84112-29375 |
US $74.26 |
||
|
84140
|
84140
84140-29215 Switch Assy, Headlamp Dimmer[06.1984 - 07.1986] CV1#,SV1# |
84140-29215 |
US $69.45 |
||
|
84310
|
84310
84310-32280 Switch Assy, Turn Signal[07.1984 - 07.1986] CV1#,SV1#..LT,VC,VF,VL,VS,XE,XS,XT |
84310-32280 |
US $433.89 |
||
| replacement | |||||
|
84310
|
84310
84310-32200 Switch Assy, Turn SignalTURN SIGNAL [07.1984 - 07.1986] CV1#,SV1#..LT,VC,VF,VL,VS,XE,XS,XT |
84310-32200 |
US $346.53 |
||
|
84310B
|
84310B
84332-39235
Switch, Turn Signal
[06.1984 - 07.1986] CV1#,SV1# |
84332-39235 |
— | ||
|
84312
|
84312
84312-32020
Plate, Horn Contact
[06.1984 - 07.1986] CV1#,SV1# |
84312-32020 |
— | ||
|
84330
|
84330
84332-32050-03 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [06.1984 - 07.1986] CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
84332-32050-03 |
US $75.71 |
||
|
84330
|
84330
84332-32050-04 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [06.1984 - 07.1986] CV1#,SV1# BLUE,BLUE,TRIM8# |
84332-32050-04 |
US $75.71 |
||
|
84330
|
84330
84332-32050-05 Switch Assy, Hazard Warning SignalHAZARD WARNING SIGNAL [08.1984 - 07.1986] CV1#,SV1# BEIGE,BEIGE,TRIM4# |
84332-32050-05 |
US $75.71 |
||
|
84335
|
84335
84330-32020-03
Switch Assy, Parking Lamp
[06.1984 - 07.1986] CV1#,SV1# SHADOW GRAY,SHADOW GRAY,TRIM1# |
84330-32020-03 |
— | ||
|
84335
|
84335
84330-32020-04 Switch Assy, Parking LampPARKING LAMP [06.1984 - 07.1986] CV1#,SV1# BLUE,BLUE,TRIM8# |
84330-32020-04 |
US $46.01 |
||
|
84335
|
84335
84330-32020-05
Switch Assy, Parking Lamp
[08.1984 - 07.1986] CV1#,SV1# BEIGE,BEIGE,TRIM4# |
84330-32020-05 |
— | ||
|
84450
|
84450
84450-27040
Switch Assy, Ignition Or Starter
[06.1984 - 07.1986] CV1#,SV1#..LT,VC,VF,VL,VS,XE,XS,XT |
84450-27040 |
— | ||
| replacement | |||||
|
84450
|
84450
84450-28020 Switch Assy, Ignition Or Starter[06.1984 - 07.1986] CV1#,SV1#..LT,VC,VF,VL,VS,XE,XS,XT |
84450-28020 |
US $56.78 |
||
|
84650
|
84650
84652-39585 Switch Assy, Windshield Wiper[07.1984 - 07.1986] CV1#,SV1#..LT,VC,VF,VL,VS,XE,XS,XT |
84652-39585 |
US $115.02 |
||
|
84653A
|
84653A
84653-32020
Switch, Rear Wiper
[06.1984 - 07.1986] CV1#,SV1#..5D |
84653-32020 |
— | ||
|
84660C
|
84660C
84660-32010 Switch, CoolerCOOLER [03.1982 - 07.1986] CV1#,SV1# |
84660-32010 |
US $69.01 |
||
|
84660D
|
84660D
88607-32010
Bulb(For Cooler Switch)
[03.1982 - 07.1986] CV1#,SV1# |
88607-32010 |
— | ||
|
84730
|
84730
84732-32040 Switch Assy, Heater BlowerHEATER BLOWER [06.1984 - 07.1986] CV1#,SV1# |
84732-32040 |
US $68.43 |
||
| replacement | |||||
|
84730
|
84730
84732-32010 Switch Assy, Heater BlowerHEATER BLOWER [06.1984 - 07.1986] CV1#,SV1# |
84732-32010 |
US $68.43 |
||
|
84730
|
84730
84732-32050 Switch Assy, Heater Blower[06.1984 - 07.1986] CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX W/AUTOMATIC AIR CONDITIONER |
84732-32050 |
US $68.43 |
||
|
84730B
|
84730B
90981-11014 Bulb, Position Indicator Lamp[06.1984 - 07.1986] CV1#,SV1# １４Ｖ １．４Ｗ,W/O AUTOMATIC AIR CONDITIONER |
90981-11014 |
from US $1.92 |
||
|
84790
|
84790
84790-32070 Switch Assy, Rear Window Defogger[06.1984 - 07.1986] CV1#;SV12..4FC W/TIMER |
84790-32070 |
US $116.48 |
||
|
84870A
|
84870A
84870-17010 Switch Assy, Outer Mirror[06.1984 - 07.1986] CV1#,SV1#..VF,VL,VR,VS,VX,XE,XS,XT,ZE,ZX |
84870-17010 |
US $84.45 |
||
|
85500
|
85500
85500-32030 Lighter Assy, CigaretteCIGARETTE [06.1984 - 07.1986] CV1#,SV1# |
85500-32030 |
US $80.08 |
||
|
85500B
|
85500B
90981-11014 Bulb, Position Indicator Lamp[06.1984 - 07.1986] CV1#,SV1# １４Ｖ １．４Ｗ |
90981-11014 |
from US $1.92 |
||
|
85533
|
85533
85533-14020
Lens, Cigarette Lighter Indicator
[03.1982 - 07.1986] CV1#,SV1# |
85533-14020 |
— | ||
| replacement | |||||
|
85533
|
85533
85533-20011
Lens, Cigarette Lighter Indicator
[03.1982 - 07.1986] CV1#,SV1# |
85533-20011 |
— | ||
|
8271120300
|
8271120300
82711-20300 Wire, Fuse To Fuse(for Combustion Heater) |
82711-20300 |
US $9.17 |
||
|
8271120450
|
8271120450
82711-20450
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-20450 |
— | ||
|
9014940013
|
9014940013
90149-40013 New Genuine Part |
90149-40013 |
US $1.12 |
||
|
9046313003
|
9046313003
90463-13003 Clamp, Hood Lock Control Wire |
90463-13003 |
US $2.88 |
||
|
9046315003
|
9046315003
90463-15003 New Genuine Part |
90463-15003 |
US $2.56 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331914012
|
9331914012
93319-14012 New Genuine Part |
93319-14012 |
US $1.12 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
