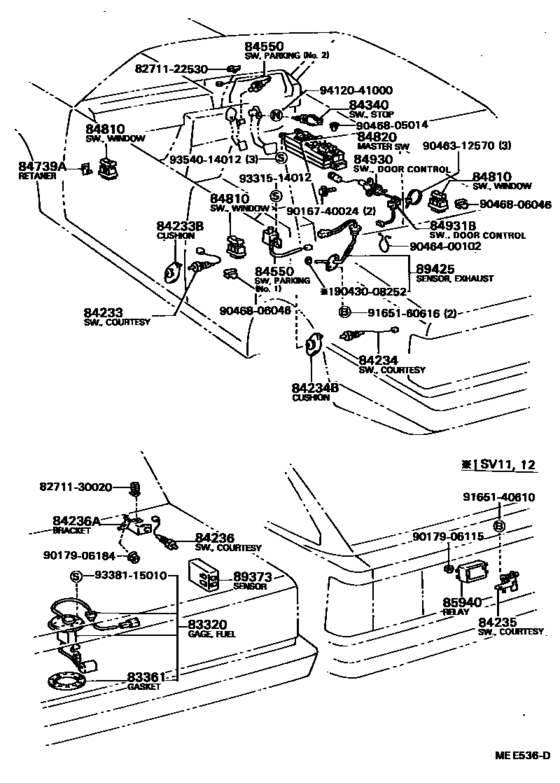

Switch & Relay & Computer ([06.1984 - ] (8406- )) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1985 - 1986
- Sales region
- Japan
- Frame
- CV11
- ENGINE
- 2CTL
- TRANSMISSION
- ATM
- Model
- CAMRY/ VISTA
- From
- 08.1985
- To
- 07.1986
- Grade
- VF
- Gear Shift Type
- 4FC
- No.of Doors
- 5D
- Vehicle Model
- Vista
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-39537 Gage Assy, Fuel SenderFUEL SENDER [11.1984 - 07.1986] CV1# |
83320-39537 |
US $110.66 |
||
|
83361
|
83361
83361-32010
Gasket, Fuel Sender Gage
[03.1982 - 07.1986] CV1#,SV1# |
83361-32010 |
— | ||
|
84233
|
84233
84230-12120
Switch Assy, Courtesy Lamp (For Front Door)
[06.1984 - 07.1986] CV1#,SV1# |
84230-12120 |
— | ||
| replacement | |||||
|
84233
|
84233
84231-22060 Switch Assy, Courtesy Lamp (For Front Door)[06.1984 - 07.1986] CV1#,SV1# |
84231-22060 |
US $11.84 |
||
|
84233B
|
84233B
84234-24010 Cushion, Courtesy Switch (For Front Door)[03.1982 - 07.1986] CV1#,SV1# |
84234-24010 |
US $11.68 |
||
|
84234
|
84234
84230-12120
Switch Assy, Courtesy Lamp (For Front Door)
[06.1984 - 07.1986] CV1#,SV1# |
84230-12120 |
— | ||
| replacement | |||||
|
84234
|
84234
84231-22060 Switch Assy, Courtesy Lamp (For Front Door)[06.1984 - 07.1986] CV1#,SV1# |
84231-22060 |
US $11.84 |
||
|
84234B
|
84234B
84234-24010 Cushion, Courtesy Switch (For Front Door)[03.1982 - 07.1986] CV1#,SV1# |
84234-24010 |
US $11.68 |
||
|
84235
|
84235
84231-32010
Switch Assy, Courtesy Lamp(For Back Door)
[09.1982 - 07.1986] CV1#,SV1#..5D |
84231-32010 |
— | ||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[11.1984 - 07.1986] CV1#,SV1# MATSUSHITA |
84340-30030 |
from US $28.78 |
||
|
84340
|
84340
84340-32010
Switch Assy, Stop Lamp
[11.1984 - 07.1986] CV1#,SV1# TOKAIRIKA |
84340-32010 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-30030 Switch Assy, Stop Lamp[11.1984 - 07.1986] CV1#,SV1# TOKAIRIKA |
84340-30030 |
from US $28.78 |
||
|
84550
|
84550
84550-32010 Switch Assy, Parking BrakePARKING BRAKE [06.1984 - 07.1986] CV1#,SV10,11..4FC NO.2; SV12..4FC..(VX,ZX) NO.2 |
84550-32010 |
US $15.58 |
||
|
84739A
|
84739A
84739-30020 Retainer, Switch[06.1984 - 07.1986] CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX |
84739-30020 |
US $3.64 |
||
|
84810
|
84810
84810-32050
Switch Assy, Power Window Regulator
[06.1984 - 07.1986] CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX FR(LH),RR |
84810-32050 |
— | ||
| replacement | |||||
|
84810
|
84810
84810-30130 Switch Assy, Power Window Regulator[06.1984 - 07.1986] CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX FR(LH),RR |
84810-30130 |
US $56.70 |
||
|
84820
|
84820
84820-32060 Master Switch Assy, Power Window Regulator[06.1984 - 07.1986] CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX FR(RH) |
84820-32060 |
US $308.67 |
||
| replacement | |||||
|
84820
|
84820
84820-32090 Master Switch Assy, Power Window Regulator[06.1984 - 07.1986] CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX FR(RH) |
84820-32090 |
US $291.20 |
||
|
84930
|
84930
84931-32010 Switch Assy, Door ControlDOOR CONTROL [06.1984 - 07.1986] CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX |
84931-32010 |
US $42.52 |
||
| replacement | |||||
|
84930
|
84930
84931-20080 Switch, Door Control[06.1984 - 07.1986] CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX |
84931-20080 |
US $44.99 |
||
|
84931B
|
84931B
84931-32020 Switch, Door ControlDOOR CONTROL [06.1984 - 07.1986] CV1#,SV1#..VF,VR,VS,VX,XE,XS,ZE,ZX |
84931-32020 |
US $52.27 |
||
|
85940
|
85940
85940-32030 Relay Assy, Windshield WiperWINDSHIELD WIPER [08.1982 - 07.1986] CV1#,SV1#..5D RR WIPER |
85940-32030 |
US $144.14 |
||
|
89373
|
89373
89373-32070 Sensor, Lamp Failure IndicatorLAMP FAILURE INDICATOR [06.1984 - 07.1986] CV1#,SV1#..5D |
89373-32070 |
US $246.06 |
||
| replacement | |||||
|
89373
|
89373
89373-32190 Sensor, Lamp Failure Indicator[06.1984 - 07.1986] CV1#,SV1#..5D |
89373-32190 |
US $221.31 |
||
|
8271122530
|
8271122530
82711-22530
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-22530 |
— | ||
|
8271130020
|
8271130020
82711-30020 Wire, Fuse To Fuse(for Combustion Heater) |
82711-30020 |
US $3.93 |
||
|
9016740024
|
9016740024
90167-40024 New Genuine Part |
90167-40024 |
US $1.60 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9017906184
|
9017906184
90179-06184 New Genuine Part |
90179-06184 |
US $1.16 |
||
|
9043008252
|
9043008252
90430-08252 Gasket(For Catalytic Converter Sensor Guide) |
90430-08252 |
US $3.84 |
||
|
9046312570
|
9046312570
90463-12570 CLAMP |
90463-12570 |
US $3.20 |
||
|
9046400102
|
9046400102
90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable) |
90464-00102 |
US $2.33 |
||
|
9046805014
|
9046805014
90468-05014 Retainer, Front Door Lower Frame Bracket Garnish |
90468-05014 |
from US $3.68 |
||
|
9046806046
|
9046806046
90468-06046 New Genuine Part |
90468-06046 |
US $4.22 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9338115010
|
9338115010
93381-15010 SCREW |
93381-15010 |
US $0.96 |
||
|
9354014012
|
9354014012
93540-14012 Screw |
93540-14012 |
from US $1.92 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
