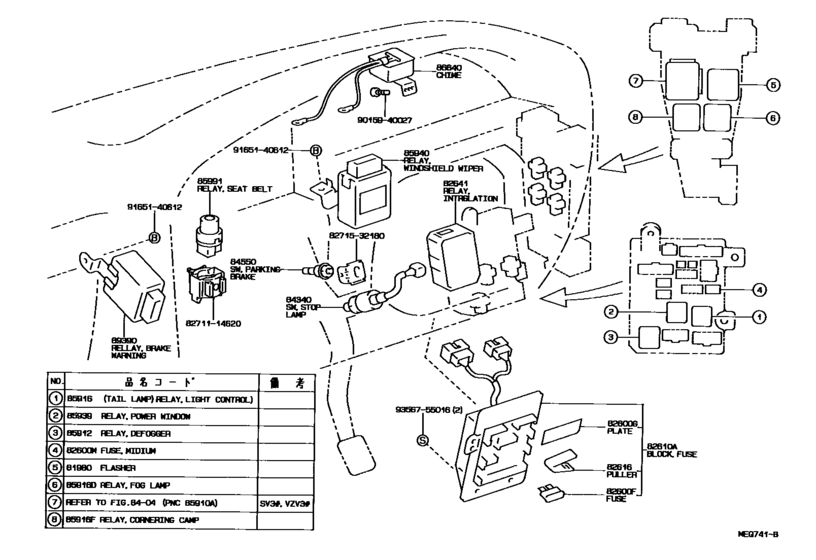

Switch & Relay & Computer ([07.1990 - 06.1994] RH COWL (9007-9406)) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1990 - 1992
- Sales region
- Japan
- Frame
- CV30
- grade
- VR
- body
- SED
- ENGINE
- 2CT
- Model
- CAMRY/ VISTA
- From
- 07.1990
- To
- 06.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Vista
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-12070
Flasher Assy, Turn Signal
[07.1990 - 06.1992] CV30,SV3#,VZV3# |
81980-12070 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-32010 Flasher Assy, Turn Signal[07.1990 - 06.1992] CV30,SV3#,VZV3# |
81980-32010 |
from US $56.55 |
||
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[07.1990 - 06.1992] CV30 ３０Ａ,NO.2 JUNCTION BLOCK |
90982-07011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[07.1990 - 06.1992] CV30 １０Ａ,NO.4 RELAY BLOCK; SV3# １０Ａ,NO.2 JUNCTION BLOCK; SV3# １０Ａ,ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),NO.4 RELAY BLOCK |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[07.1990 - 06.1992] CV30 １５Ａ,NO.2 JUNCTION BLOCK |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[07.1990 - 06.1992] CV30,SV3#,VZV3# ２０Ａ,FUSE BLOCK |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[07.1990 - 06.1992] CV30,SV3#,VZV3# ７．５Ａ,NO.2 JUNCTION BLOCK |
90982-09005 |
from US $1.09 |
||
|
82600G
|
82600G
82683-32060 Plate, Caution(For Fuse)[07.1990 - 06.1994] CV30,SV3#,VZV3# |
82683-32060 |
US $3.93 |
||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[07.1990 - 06.1992] CV30,SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX ３０Ａ,NO.2 JUNCTION BLOCK; SV32,33,VZV32,33..GT,PRO ３０Ａ; CV30,SV3#,VZV30,31 ３０Ａ,NO.1 JUNCTION BLOCK |
90982-10001 |
from US $3.84 |
||
|
82600M
|
82600M
90982-10002 Fuse, Fuse Block[07.1990 - 06.1992] CV30,SV3#,VZV3# ４０Ａ |
90982-10002 |
US $4.48 |
||
|
82610A
|
82610A
82610-32020 Block Assy, Fuse[07.1990 - 06.1994] CV30,SV3#,VZV3# |
82610-32020 |
US $72.51 |
||
|
82610A
|
82610A
82610-32030 Block Assy, Fuse[07.1990 - 06.1992] CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX ｱﾘ(ｳﾃｷｼﾞﾖｷﾖ ﾐﾗ-) |
82610-32030 |
US $74.26 |
||
|
82616
|
82616
82616-12020 Puller, Fuse[07.1990 - 06.1994] CV30,SV3#,VZV3# |
82616-12020 |
US $4.19 |
||
|
82641
|
82641
82641-32040 Relay, Integration No.1[07.1990 - 02.1991] CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
82641-32040 |
US $205.30 |
||
| replacement | |||||
|
82641
|
82641
82641-32041 Relay, Integration No.1[07.1990 - 02.1991] CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
82641-32041 |
US $205.30 |
||
|
82641
|
82641
82641-32041 Relay, Integration No.1[02.1991 - 06.1994] CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
82641-32041 |
US $205.30 |
||
|
84340
|
84340
84340-32090
Switch Assy, Stop Lamp
[07.1990 - 06.1994] CV30,SV3#,VZV3# |
84340-32090 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-42010 Switch Assy, Stop Lamp[07.1990 - 06.1994] CV30,SV3#,VZV3# |
84340-42010 |
from US $21.28 |
||
|
84550
|
84550
84550-32060 Switch Assy, Parking Brake[07.1990 - 06.1994] CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
84550-32060 |
US $42.08 |
||
| replacement | |||||
|
84550
|
84550
84550-40010 Switch Assy, Parking Brake[07.1990 - 06.1994] CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
84550-40010 |
US $19.07 |
||
|
85912
|
85912
90987-02009 Relay Assy[07.1990 - 05.1991] CV30,SV3#,VZV3# ＭＡＲＵＫＯ |
90987-02009 |
from US $33.87 |
||
|
85912
|
85912
90987-02010
Relay (For Heater Idle Up)
[07.1990 - 05.1991] CV30,SV3#,VZV3# ＮＩＰＰＯＮＤＥＮＳＯ |
90987-02010 |
— | ||
| replacement | |||||
|
85912
|
85912
90987-02009 Relay Assy[07.1990 - 05.1991] CV30,SV3#,VZV3# ＮＩＰＰＯＮＤＥＮＳＯ |
90987-02009 |
from US $33.87 |
||
|
85916
|
85916
90987-02006 Relay[07.1990 - 06.1992] CV30,SV3#,VZV3# HEADLAMP |
90987-02006 |
from US $27.65 |
||
|
85916
|
85916
90987-02009 Relay Assy[07.1990 - 05.1991] CV30,SV3#,VZV3# TAIL LAMP,MARUKO |
90987-02009 |
from US $33.87 |
||
|
85916
|
85916
90987-02010
Relay (For Heater Idle Up)
[07.1990 - 05.1991] CV30,SV3#,VZV3# TAIL LAMP,*ND |
90987-02010 |
— | ||
| replacement | |||||
|
85916
|
85916
90987-02009 Relay Assy[07.1990 - 05.1991] CV30,SV3#,VZV3# TAIL LAMP,*ND |
90987-02009 |
from US $33.87 |
||
|
85916D
|
85916D
90987-02009 Relay Assy[07.1990 - 05.1991] CV30,SV3#,VZV3# ＭＡＲＵＫＯ |
90987-02009 |
from US $33.87 |
||
|
85916D
|
85916D
90987-02010
Relay (For Heater Idle Up)
[07.1990 - 05.1991] CV30,SV3#,VZV3# ＮＩＰＰＯＮＤＥＮＳＯ |
90987-02010 |
— | ||
| replacement | |||||
|
85916D
|
85916D
90987-02009 Relay Assy[07.1990 - 05.1991] CV30,SV3#,VZV3# ＮＩＰＰＯＮＤＥＮＳＯ |
90987-02009 |
from US $33.87 |
||
|
85916F
|
85916F
90987-02009 Relay Assy[07.1990 - 05.1991] CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX ＭＡＲＵＫＯ |
90987-02009 |
from US $33.87 |
||
|
85916F
|
85916F
90987-02010
Relay (For Heater Idle Up)
[07.1990 - 05.1991] CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX ＮＩＰＰＯＮＤＥＮＳＯ |
90987-02010 |
— | ||
| replacement | |||||
|
85916F
|
85916F
90987-02009 Relay Assy[07.1990 - 05.1991] CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX ＮＩＰＰＯＮＤＥＮＳＯ |
90987-02009 |
from US $33.87 |
||
|
85939
|
85939
90987-02009 Relay Assy[07.1990 - 05.1991] CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX ＭＡＲＵＫＯ |
90987-02009 |
from US $33.87 |
||
|
85939
|
85939
90987-02010
Relay (For Heater Idle Up)
[07.1990 - 05.1991] CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX ＮＩＰＰＯＮＤＥＮＳＯ |
90987-02010 |
— | ||
| replacement | |||||
|
85939
|
85939
90987-02009 Relay Assy[07.1990 - 05.1991] CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX ＮＩＰＰＯＮＤＥＮＳＯ |
90987-02009 |
from US $33.87 |
||
|
86640
|
86640
86640-32040 Chime Assy[07.1990 - 05.1991] SV30..ETO,LUM,VE,VL,XT,ZV;CV30,SV32,33,35..ETO,LUM,VE,VR,ZE,ZV; SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
86640-32040 |
US $34.36 |
||
|
89390
|
89390
89390-32010 Relay, Brake Warning[07.1990 - 06.1992] CV30 |
89390-32010 |
US $219.86 |
||
|
8271114620
|
8271114620
82711-14620 Bracket, Relay, No.3 |
82711-14620 |
US $5.24 |
||
|
8271532180
|
8271532180
82715-32180 Bracket,wiring Harness Clamp |
82715-32180 |
US $5.24 |
||
|
9015940027
|
9015940027
90159-40027 New Genuine Part |
90159-40027 |
US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
