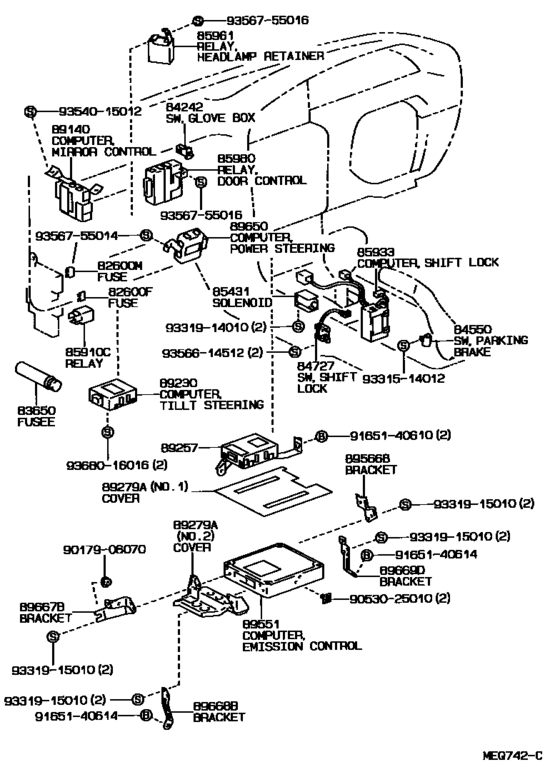

Switch & Relay & Computer ([07.1990 - 06.1994] LH COWL (9007-9406)) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1990 - 1992
- Sales region
- Japan
- Frame
- CV30
- grade
- VR
- body
- SED
- ENGINE
- 2CT
- Model
- CAMRY/ VISTA
- From
- 07.1990
- To
- 06.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Vista
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600F
|
82600F
90982-07011 Fuse, Fuse Block[07.1990 - 06.1992] CV30 ３０Ａ,NO.2 JUNCTION BLOCK |
90982-07011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[07.1990 - 06.1992] CV30 １０Ａ,NO.4 RELAY BLOCK; SV3# １０Ａ,NO.2 JUNCTION BLOCK; SV3# １０Ａ,ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ),NO.4 RELAY BLOCK |
90982-09002 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[07.1990 - 06.1992] CV30 １５Ａ,NO.2 JUNCTION BLOCK |
90982-09003 |
from US $0.92 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[07.1990 - 06.1992] CV30,SV3#,VZV3# ２０Ａ,FUSE BLOCK |
90982-09004 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[07.1990 - 06.1992] CV30,SV3#,VZV3# ７．５Ａ,NO.2 JUNCTION BLOCK |
90982-09005 |
from US $1.09 |
||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[07.1990 - 06.1992] CV30,SV3#..ETO,LUM,VE,VL,VR,VX,XT,ZE,ZV,ZX ３０Ａ,NO.2 JUNCTION BLOCK; SV32,33,VZV32,33..GT,PRO ３０Ａ; CV30,SV3#,VZV30,31 ３０Ａ,NO.1 JUNCTION BLOCK |
90982-10001 |
from US $3.84 |
||
|
82600M
|
82600M
90982-10002 Fuse, Fuse Block[07.1990 - 06.1992] CV30,SV3#,VZV3# ４０Ａ |
90982-10002 |
US $4.48 |
||
|
83650
|
83650
90986-01005
Fusee
[07.1990 - 06.1994] CV30,SV3#,VZV3# |
90986-01005 |
— | ||
|
84242
|
84242
84242-20030 Switch Assy, Courtesy Lamp (For Glove Box)[07.1990 - 06.1994] CV30,SV3#,VZV3#..GT,PRO,VR,VX,ZE,ZX |
84242-20030 |
US $18.35 |
||
|
84550
|
84550
84550-32060 Switch Assy, Parking Brake[07.1990 - 06.1994] CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
84550-32060 |
US $42.08 |
||
| replacement | |||||
|
84550
|
84550
84550-40010 Switch Assy, Parking Brake[07.1990 - 06.1994] CV30,SV30,32,33,VZV3#..4FC..(ETO,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZV,ZX) |
84550-40010 |
US $19.07 |
||
|
84727
|
84727
84727-17020 Switch, Shift Lock Control[07.1990 - 06.1994] CV30,SV3#,VZV3#..4FC |
84727-17020 |
US $48.19 |
||
| replacement | |||||
|
84727
|
84727
84727-20030 Switch, Shift Lock ControlSHIFT LOCK CONTROL [07.1990 - 06.1994] CV30,SV3#,VZV3#..4FC |
84727-20030 |
US $48.19 |
||
|
85431
|
85431
85431-60030 Solenoid, Shift Lock[07.1990 - 06.1994] CV30,SV3#,VZV3#..4FC |
85431-60030 |
US $40.91 |
||
| replacement | |||||
|
85431
|
85431
85431-24040 Solenoid, Shift Lock[07.1990 - 06.1994] CV30,SV3#,VZV3#..4FC |
85431-24040 |
US $38.51 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[07.1990 - 06.1994] CV30,SV3#,VZV3# |
90987-04002 |
from US $25.27 |
||
|
85933
|
85933
85933-32030
Computer, Shift Lock Control
[07.1990 - 06.1994] CV30,SV3#,VZV3#..4FC |
85933-32030 |
— | ||
|
85980
|
85980
85980-32120 Relay Assy, Door Control[07.1990 - 06.1992] CV30,SV3#,VZV3#..ETO,GT,LUM,PRO,VE,VR,VX,ZE,ZV,ZX |
85980-32120 |
US $404.77 |
||
|
89140
|
89140
89140-32010 Computer,assy Mirror Viblation Control[07.1990 - 05.1991] CV30,SV3#,VZV3#..GT,LUM,PRO,VE,VR,VX,ZE,ZX |
89140-32010 |
US $353.81 |
||
|
89230
|
89230
89230-32010 Computer Assy, Tilt Steering[07.1990 - 06.1994] CV30,SV3#,VZV3# |
89230-32010 |
US $158.70 |
||
|
89257
|
89257
89257-32020 Computer, Cooling Fan[07.1990 - 06.1994] CV30 |
89257-32020 |
US $291.20 |
||
|
89279A
|
89279A
89279-32170 Cover, Engine Control Computer[07.1990 - 06.1992] CV30 NO.1 |
89279-32170 |
US $4.51 |
||
|
89279A
|
89279A
89279-32190 Cover, Computer[07.1990 - 10.1993] CV30 ＮＯ．２ |
89279-32190 |
US $18.64 |
||
|
89551
|
89551
89551-32080 Computer, Emission Control[07.1990 - 06.1994] CV30 |
89551-32080 |
US $556.19 |
||
|
89566B
|
89566B
89566-32050 Bracket, Fuel Injection Computer[07.1990 - 06.1994] CV30 |
89566-32050 |
US $5.82 |
||
|
89667B
|
89667B
89667-32040 Bracket, Engine Control Computer, No.1[07.1990 - 06.1994] CV30 |
89667-32040 |
US $9.17 |
||
|
89668B
|
89668B
89668-32040 Bracket, Engine Control Computer, No.2[07.1990 - 06.1994] CV30 |
89668-32040 |
US $5.24 |
||
|
89669D
|
89669D
89669-32050 Bracket, Engine Control Computer, No.3[07.1990 - 06.1994] CV30 |
89669-32050 |
US $6.99 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9053025010
|
9053025010
90530-25010 Fastener, Hook |
90530-25010 |
from US $1.54 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9354015012
|
9354015012
93540-15012
New Genuine Part
|
93540-15012 |
— | ||
|
9356614512
|
9356614512
93566-14512
SCREW
|
93566-14512 |
— | ||
| replacement | |||||
|
9356614512
|
9356614512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
|
9356755014
|
9356755014
93567-55014
Direct
|
93567-55014 |
— | ||
| replacement | |||||
|
9356755014
|
9356755014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
|
9368016016
|
9368016016
93680-16016 New Genuine Part |
93680-16016 |
US $1.60 |
||
