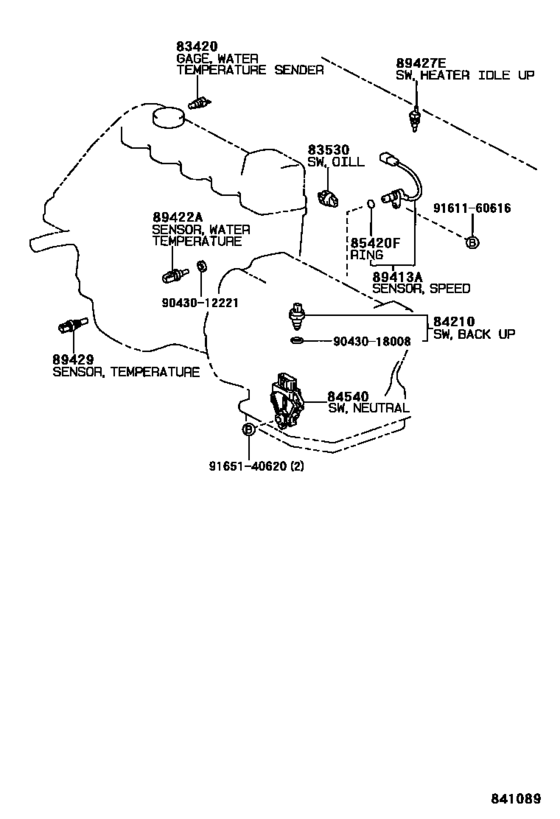

Switch & Relay & Computer ([06.1994 - ] ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ (9406- )CV4#) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1995 - 1998
- Sales region
- Japan
- Frame
- CV43
- grade
- ALPX
- body
- SED
- ENGINE
- 3CT
- TRANSMISSION
- ATM
- Model
- CAMRY/ VISTA
- From
- 01.1995
- To
- 06.1998
- Vehicle Model
- Vista
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[06.1994 - 06.1995] CV4#,SV4# ＮＩＰＰＯＮＤＥＮＳＯ |
83420-16040 |
from US $30.71 |
||
|
83530
|
83530
83530-30100
Switch Assy, Oil Pressure (For Engine)
[06.1994 - 02.1998] CV4# |
83530-30100 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[06.1994 - 02.1998] CV4# |
83530-60010 |
from US $25 |
||
|
83530
|
83530
83530-60010 Switch Assy, Oil Pressure (For Engine)[02.1998 -] CV4# |
83530-60010 |
from US $25 |
||
|
84540
|
84540
84540-20200 Switch Assy, Neutral Start[06.1994 -] CV43,SV43..ATM |
84540-20200 |
US $336.34 |
||
|
85420F
|
85420F
90301-11008 Ring,o (For Speedometer Driven Hole Cover)[06.1994 -] CV43,SV43..ATM |
90301-11008 |
from US $0.96 |
||
|
89413A
|
89413A
89411-32050 Sensor, Transmission Revolution[01.1995 -] CV43 |
89411-32050 |
US $99.01 |
||
|
89422A
|
89422A
89422-35010 Sensor, Water Temperature (For E.f.i.)[06.1994 -] CV4# |
89422-35010 |
from US $40.58 |
||
|
89427E
|
89427E
89427-12110
Switch, Temperature (For Heater Idle Up)
[05.1996 -] CV4# |
89427-12110 |
— | ||
| replacement | |||||
|
89427E
|
89427E
88620-28020
Thermo Switch Assy
[05.1996 -] CV4# |
88620-28020 |
— | ||
|
89427E
|
89427E
89427-32030 Switch, Temperature Detect[06.1994 - 05.1996] CV4# |
89427-32030 |
US $52.85 |
||
|
89429
|
89429
89429-24020 Sensor, Water Temperature[05.1996 -] CV4# |
89429-24020 |
US $76.96 |
||
|
89429
|
89429
89429-33010 Switch, Temperature Detect, No.2[06.1994 - 05.1996] CV4# |
89429-33010 |
US $66.92 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9161160616
|
9161160616
91611-60616
Bolt(For Transaxle Case Receiver)
|
91611-60616 |
— | ||
| replacement | |||||
|
9161160616
|
9161160616
91611-B0616 Bolt(For Transaxle Case Receiver) |
91611-B0616 |
from US $0.96 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
