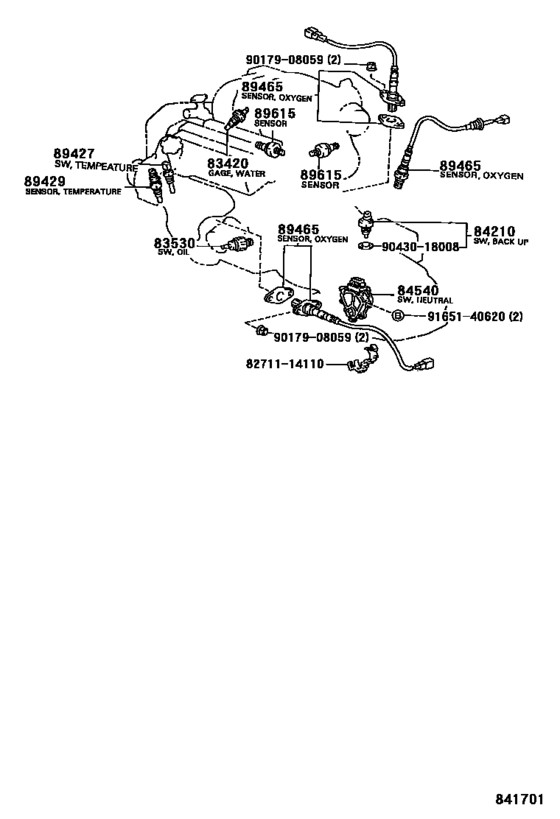

Switch & Relay & Computer ([09.1993 - 07.1996] ENGINE & TRANSMISSION (9309-9607)MCV10..NAP) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1993 - 1994
- Sales region
- General
- Frame
- MCV10
- grade
- SE
- body
- SED
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- CAMRY (JPP/NAP/SED/WG)
- From
- 09.1993
- To
- 08.1994
- Vehicle Model
- Camry
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16050
Gage Assy, Water Temperature Sender
[09.1993 - 08.1994] MCV10..NAP |
83420-16050 |
— | ||
| replacement | |||||
|
83420
|
83420
83420-20040 Gage Assy, Water Temperature Sender[09.1993 - 08.1994] MCV10..NAP |
83420-20040 |
from US $37.91 |
||
|
83530
|
83530
83530-14060
Switch Assy, Oil Pressure (For Engine)
[09.1993 - 08.1994] MCV10..NAP |
83530-14060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [09.1993 - 08.1994] MCV10..NAP |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-20200 Switch Assy, Neutral Start[09.1993 - 07.1996] MCV10..NAP |
84540-20200 |
US $336.34 |
||
|
89429
|
89429
89429-33010 Switch, Temperature Detect, No.2[09.1993 - 08.1994] MCV10..NAP |
89429-33010 |
US $66.92 |
||
|
89465
|
89465
89465-33030 Sensor, OxygenOXYGEN [09.1993 - 07.1996] MCV10..NAP REAR |
89465-33030 |
US $144.14 |
||
|
89465
|
89465
89465-33080 Sensor, OxygenOXYGEN [09.1993 - 07.1996] MCV10..NAP FRONT |
89465-33080 |
US $149.97 |
||
|
89615
|
89615
89615-12040 Sensor, Knock Control[09.1993 - 07.1996] MCV10..NAP |
89615-12040 |
from US $147.58 |
||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $2.72 |
||
|
9017908059
|
9017908059
90179-08059
Nut
|
90179-08059 |
— | ||
| replacement | |||||
|
9017908059
|
9017908059
90179-08101 NUT |
90179-08101 |
from US $0.84 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021 Gasket(For Manual Transmission Filler Plug) |
90430-T0021 |
US $1.15 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
