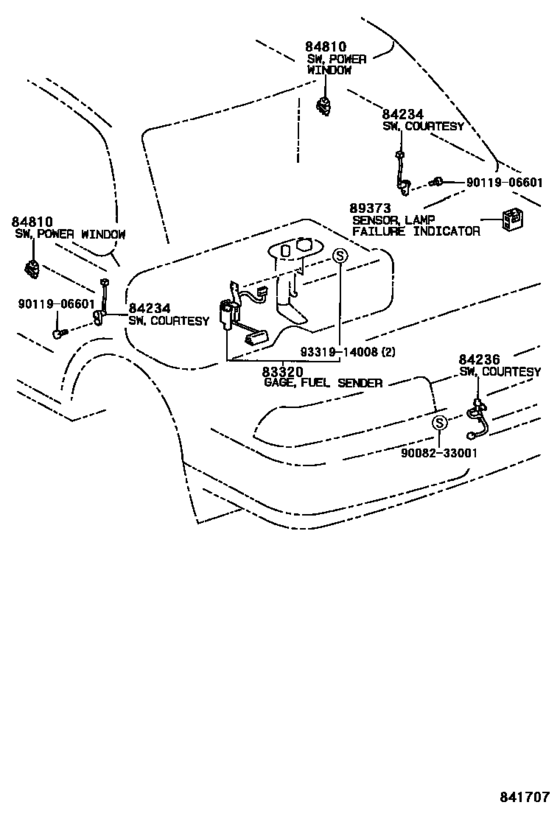

Switch & Relay & Computer ([09.1993 - 07.1996] FLOOR, REAR DOOR & LUGGAGE (9309-9607)NAP..SED) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1993 - 1994
- Sales region
- General
- Frame
- MCV10
- grade
- SE
- body
- SED
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- CAMRY (JPP/NAP/SED/WG)
- From
- 09.1993
- To
- 08.1994
- Vehicle Model
- Camry
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-80204 Gage Assy, Fuel Sender[09.1992 - 07.1996] MCV10,SXV10..NAP |
83320-80204 |
US $120.56 |
||
|
84234
|
84234
84231-32050
Switch Assy, Courtesy Lamp (For Front Door)
[09.1993 - 07.1996] MCV10,SXV10..NAP..SED |
84231-32050 |
— | ||
| replacement | |||||
|
84234
|
84234
84231-30110 Switch Assy, Courtesy Lamp (For Front Door)[09.1993 - 07.1996] MCV10,SXV10..NAP..SED |
84231-30110 |
from US $16.26 |
||
|
84236
|
84236
84231-20200 Switch Assy, Courtesy Lamp(For Back Door)[09.1993 - 08.1994] MCV10,SXV10..NAP..SED |
84231-20200 |
US $14.41 |
||
| replacement | |||||
|
84236
|
84236
84231-12130 Switch Assy, Courtesy Lamp(For Luggage Compartment Room)[09.1993 - 08.1994] MCV10,SXV10..NAP..SED |
84231-12130 |
US $17.26 |
||
|
84810
|
84810
84810-06010
Switch Assy, Power Window Regulator
[09.1992 - 07.1996] MCV10,SXV10..NAP..(GL,LE,SE,XE) |
84810-06010 |
— | ||
| replacement | |||||
|
84810
|
84810
84810-32070 Switch Assy, Power Window Regulator[09.1992 - 07.1996] MCV10,SXV10..NAP..(GL,LE,SE,XE) |
84810-32070 |
from US $35.72 |
||
|
89373
|
89373
89373-06030
Sensor, Lamp Failure Indicator
[09.1993 - 08.1994] MCV10..NAP..SE |
89373-06030 |
— | ||
| replacement | |||||
|
89373
|
89373
89373-33070 Sensor, Lamp Failure IndicatorLAMP FAILURE INDICATOR [09.1993 - 08.1994] MCV10..NAP..SE |
89373-33070 |
US $234.42 |
||
|
9008233001
|
9008233001
90082-33001 New Genuine Part |
90082-33001 |
US $2.62 |
||
|
9011906601
|
9011906601
90119-06601
New Genuine Part
|
90119-06601 |
— | ||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.88 |
||
