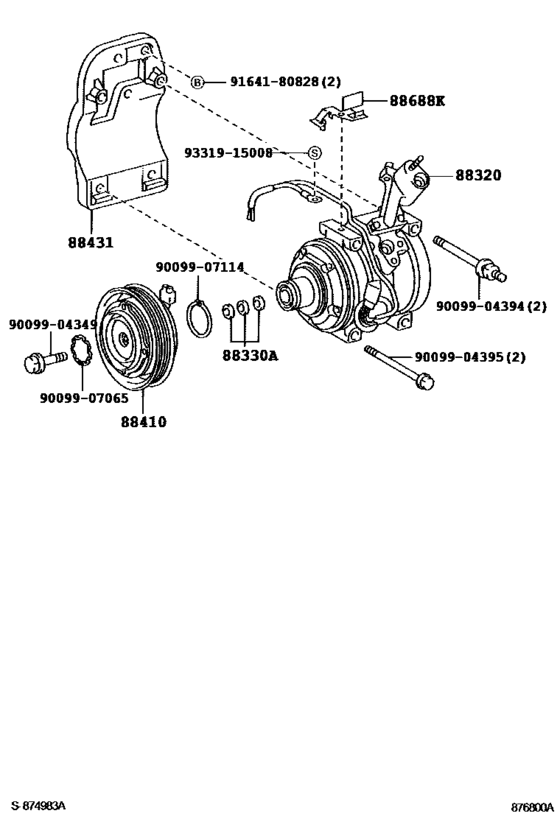

Heating & Air Conditioning - Compressor ([07.2001 - ] (0107- )MCV3#..JPP) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- MCV30
- grade
- XLE
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- PRODUCT
- JPP
- Model
- CAMRY (JPP/NAP/SED/WG)
- From
- 01.2003
- To
- 01.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- Camry
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-33160 Compressor Assy, Cooler[07.2001 - 06.2004] MCV3#..JPP |
88320-33160 |
US $1,023.98 |
||
|
88330A
|
88330A
88335-14020 Washer[07.2001 - 06.2004] ACV30,MCV3#..JPP |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-33120 Clutch Assy, Magnet[07.2001 - 06.2004] MCV3#..JPP |
88410-33120 |
from US $549.33 |
||
|
88410
|
88410
88410-33140 Clutch Assy, Magnet[06.2004 -] MCV3#..JPP |
88410-33140 |
from US $493.47 |
||
|
88431
|
88431
88431-33041
Bracket, Compressor Mounting, No.1
[07.2001 - 06.2004] MCV3#..JPP |
88431-33041 |
— | ||
|
88688K
|
88688K
88688-03030
Bracket, Cooler Compressor
[07.2001 - 10.2003] MCV3#..JPP |
88688-03030 |
— | ||
|
88688K
|
88688K
88688-48110
Bracket, Cooler Compressor
[10.2003 - 06.2004] MCV3#..JPP |
88688-48110 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904394
|
9009904394
90099-04394
Bolt
|
90099-04394 |
— | ||
|
9009904395
|
9009904395
90099-04395 BOLT W-WASHER |
90099-04395 |
from US $1.68 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.13 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9164180828
|
9164180828
91641-80828 New Genuine Part |
91641-80828 |
US $1.14 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
