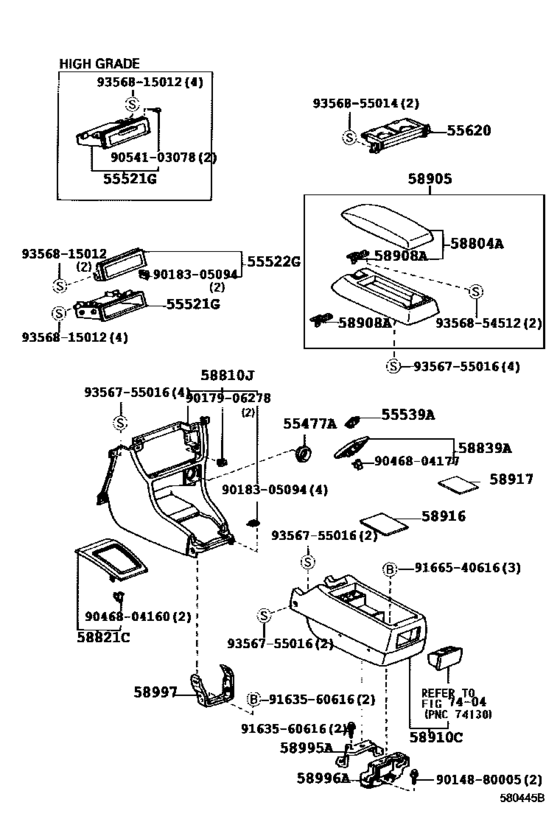

Console Box & Bracket ([06.1994 - ] (9406- )ATM) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1994 - 1998
- Sales region
- Japan
- Frame
- SV43
- grade
- ALPX
- body
- SED
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- CAMRY/ VISTA
- From
- 06.1994
- To
- 06.1998
- Vehicle Model
- Vista
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55477A
|
55477A
55477-32050 Bezel, Cigarette Lighter Hole[06.1994 - 06.1998] CV4#,SV4# |
55477-32050 |
US $2.77 |
||
|
55521G
|
55521G
55521-16030 Cover, Radio Tuner Opening[06.1994 - 05.1996] CV4#,SV4#..ALPX,ETO,LUM,TOU,VJ,XJ |
55521-16030 |
from US $24 |
||
|
55521G
|
55521G
55521-32020 Cover, Stereo Opening[05.1996 -] CV4#,SV4# |
55521-32020 |
US $28.38 |
||
|
55522G
|
55522G
55522-20070 Cover, Radio Tuner Opening[06.1994 - 05.1996] CV4#,SV4#..ALPX,TOU,VJ,XJ |
55522-20070 |
US $25.69 |
||
|
55522G
|
55522G
55522-32030 Cover, Radio Receiver Opening[08.1996 -] CV4#,SV4#..ALPX,LUM,TOU,VJ,XJ |
55522-32030 |
US $22.71 |
||
|
55522G
|
55522G
55522-33030 Cover, Radio Tuner Opening[05.1996 - 08.1996] CV4#,SV4#..ALPX,LUM,TOU,VJ,XJ |
55522-33030 |
US $22.71 |
||
| replacements | |||||
|
55522G
|
55522G
55522-32030 Cover, Radio Receiver Opening[05.1996 - 08.1996] CV4#,SV4#..ALPX,LUM,TOU,VJ,XJ |
55522-32030 |
US $22.71 |
||
|
55522G
|
55522G
90183-05094 NUT[05.1996 - 08.1996] CV4#,SV4#..ALPX,LUM,TOU,VJ,XJ |
90183-05094 |
from US $0.98 |
||
|
55539A
|
55539A
55539-20020-B2 Cover, Spare Switch Hole[05.1996 -] CV4#,SV4# MD.GRAY,TRIM1# |
55539-20020-B2 |
US $6.12 |
||
| replacement | |||||
|
55539A
|
55539A
55539-20020-C0 Cover, Spare Switch Hole (Black)[05.1996 -] CV4#,SV4# MD.GRAY,TRIM1# |
55539-20020-C0 |
from US $6.16 |
||
|
55539A
|
55539A
55539-20020-P0 Cover, Switch Base Hole[06.1994 - 05.1996] CV4#,SV4# SHADOW GRAY,TRIM1# |
55539-20020-P0 |
US $6.12 |
||
| replacement | |||||
|
55539A
|
55539A
55539-20020-C0 Cover, Spare Switch Hole (Black)[06.1994 - 05.1996] CV4#,SV4# SHADOW GRAY,TRIM1# |
55539-20020-C0 |
from US $6.16 |
||
|
55620
|
55620
55620-32030-C0 Holder Assy, Instrument Panel Cup[06.1994 - 05.1996] CV4#,SV4# BLACK,TRIM1# |
55620-32030-C0 |
US $75.71 |
||
| replacement | |||||
|
55620
|
55620
55620-32040 Holder Assy, Instrument Panel Cup[06.1994 - 05.1996] CV4#,SV4# BLACK,TRIM1# |
55620-32040 |
US $75.71 |
||
|
55620
|
55620
55620-32040 Holder Assy, Instrument Panel Cup[05.1996 - 06.1998] CV4#,SV4# |
55620-32040 |
US $75.71 |
||
|
58804A
|
58804A
58804-32200-B1 Panel Sub-Assy, Console, Upper[06.1994 - 05.1996] CV4#,SV4#..ATM..(ALPX,ETO,LUM,TOU,VJ,XJ) SHADOW GRAY,TRIM1# |
58804-32200-B1 |
US $107.74 |
||
| replacement | |||||
|
58804A
|
58804A
58804-32200-B2 Panel Sub-Assy, Console, Upper[06.1994 - 05.1996] CV4#,SV4#..ATM..(ALPX,ETO,LUM,TOU,VJ,XJ) SHADOW GRAY,TRIM1# |
58804-32200-B2 |
US $107.74 |
||
|
58804A
|
58804A
58804-32250-B0 Panel Sub-Assy, Console, Upper[05.1996 - 06.1998] CV4#,SV4#..ATM..(ALPX,TOU) MEDIUM GRAY,TRIM1# |
58804-32250-B0 |
US $177.63 |
||
| replacement | |||||
|
58804A
|
58804A
58905-32250-B2 Door Sub-Assy, Console Compartment[05.1996 - 06.1998] CV4#,SV4#..ATM..(ALPX,TOU) MEDIUM GRAY,TRIM1# |
58905-32250-B2 |
US $334.88 |
||
|
58810J
|
58810J
58810-32040-B0 Box Assy, Console[06.1994 - 05.1996] CV4#,SV4# SHADOW GRAY,TRIM1# |
58810-32040-B0 |
US $313.04 |
||
|
58810J
|
58810J
58810-32050-B0 Box Assy, Console[05.1996 -] CV4#,SV4# MD.GRAY,TRIM1# |
58810-32050-B0 |
US $315.95 |
||
|
58821C
|
58821C
58804-32170-B2 Panel, Console, Upper[06.1994 - 05.1996] CV4#,SV4#..ATM SHADOW GRAY,TRIM1# |
58804-32170-B2 |
US $28.10 |
||
|
58839A
|
58839A
58839-32070-B0 Cover, Console Box Hole[06.1994 - 05.1996] CV4#,SV4#..ATM SHADOW GRAY,TRIM1# |
58839-32070-B0 |
US $17.33 |
||
| replacement | |||||
|
58839A
|
58839A
58839-32070-B1 Cover, Console Box Hole[06.1994 - 05.1996] CV4#,SV4#..ATM SHADOW GRAY,TRIM1# |
58839-32070-B1 |
US $17.33 |
||
|
58839A
|
58839A
58839-32070-B1 Cover, Console Box Hole[05.1996 -] CV4#,SV4#..ATM MD.GRAY,TRIM1# |
58839-32070-B1 |
US $17.33 |
||
|
58905
|
58905
58905-32250-B1 Door Sub-Assy, Console Compartment[06.1994 - 05.1996] CV4#,SV4#..ATM..(ALPX,ETO,LUM,TOU,VJ,XJ) SHADOW GRAY,TRIM1# |
58905-32250-B1 |
US $334.88 |
||
| replacement | |||||
|
58905
|
58905
58905-32250-B2 Door Sub-Assy, Console Compartment[06.1994 - 05.1996] CV4#,SV4#..ATM..(ALPX,ETO,LUM,TOU,VJ,XJ) SHADOW GRAY,TRIM1# |
58905-32250-B2 |
US $334.88 |
||
|
58905
|
58905
58905-32300-B0 Door Sub-Assy, Console Compartment[05.1996 -] CV4#,SV4#..ATM..(ALPX,TOU) MEDIUM GRAY,TRIM1# |
58905-32300-B0 |
US $394.58 |
||
| replacement | |||||
|
58905
|
58905
58905-32250-B2 Door Sub-Assy, Console Compartment[05.1996 -] CV4#,SV4#..ATM..(ALPX,TOU) MEDIUM GRAY,TRIM1# |
58905-32250-B2 |
US $334.88 |
||
|
58908A
|
58908A
58908-32040 Lock Sub-Assy, Console Compartment Door[06.1994 - 05.1996] CV4#,SV4# |
58908-32040 |
from US $8.19 |
||
|
58908A
|
58908A
58908-32050 Lock Sub-Assy, Console Compartment Door[05.1996 -] CV4#,SV4# |
58908-32050 |
from US $9.18 |
||
|
58910C
|
58910C
58910-32040-B0 Box Assy, Console, Rear[06.1994 - 05.1996] CV4#,SV4#..ATM SHADOW GRAY,TRIM1# |
58910-32040-B0 |
US $374.19 |
||
|
58910C
|
58910C
58910-32060-B0 Box Assy, Console, Rear[05.1996 -] CV4#,SV4#..ATM MD.GRAY,TRIM1# |
58910-32060-B0 |
US $375.65 |
||
|
58916
|
58916
58916-32110 Mat, Box Bottom[06.1994 - 05.1996] CV4#,SV4# |
58916-32110 |
US $4.66 |
||
|
58916
|
58916
58916-32130 Mat, Box Bottom[05.1996 -] CV4#,SV4#..ATM |
58916-32130 |
US $8.15 |
||
|
58917
|
58917
58917-32050 Mat, Box Bottom, No.2[05.1996 -] CV4#,SV4#..ALPX,ETO,LUM,TOU,VX,ZX |
58917-32050 |
US $13.69 |
||
|
58995A
|
58995A
58995-32040 Bracket, Console Box Mounting, No.1[05.1996 -] CV4#,SV4# |
58995-32040 |
US $8.88 |
||
|
58996A
|
58996A
58996-32030 Bracket, Console Box Mounting, No.2[05.1996 -] CV4#,SV4# |
58996-32030 |
US $17.33 |
||
|
58997
|
58997
58997-32030 Bracket, Console Box Mounting, No.3[06.1994 -] CV4#,SV4# |
58997-32030 |
US $17.76 |
||
|
9014880005
|
9014880005
90148-80005 New Genuine Part |
90148-80005 |
US $1.75 |
||
|
9017906278
|
9017906278
90179-06278 NUT |
90179-06278 |
US $1.60 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.98 |
||
|
9046804160
|
9046804160
90468-04160 Clip, Instrument Panel, No.2 |
90468-04160 |
from US $0.94 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.64 |
||
|
9054103078
|
9054103078
90541-03078 Cushion(For Cup Holder) |
90541-03078 |
from US $1.74 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
US $1.76 |
||
|
9166540616
|
9166540616
91665-40616 Screw(For Steering Column Tube) |
91665-40616 |
US $1.12 |
||
| replacement | |||||
|
9166540616
|
9166540616
90080-11247 New Genuine Part |
90080-11247 |
US $2.46 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.60 |
||
|
9356815012
|
9356815012
93568-15012
SCREW
|
93568-15012 |
— | ||
| replacement | |||||
|
9356815012
|
9356815012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
|
9356854512
|
9356854512
93568-54512 SCREW |
93568-54512 |
from US $0.84 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
