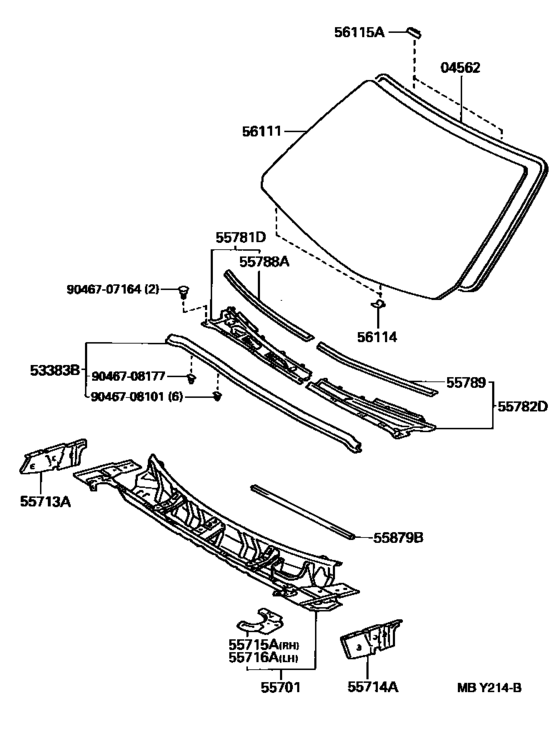

Cowl Panel & Windshield Glass ([06.1994 - ] (9406- )) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1994 - 1998
- Sales region
- Japan
- Frame
- SV43
- grade
- ALPX
- body
- SED
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- CAMRY/ VISTA
- From
- 06.1994
- To
- 06.1998
- Vehicle Model
- Vista
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04562
|
04562
04562-12010 Dam Kit, Windshield Glass[06.1994 - 06.1998] CV4#,SV4# |
04562-12010 |
from US $31.92 |
||
|
53383B
|
53383B
53383-32040 Seal, Hood To Cowl Top[06.1994 -] CV4#,SV4# |
53383-32040 |
US $28.10 |
||
|
55701
|
55701
55700-32360 Panel Sub-Assy, Cowl[06.1994 -] SV4# |
55700-32360 |
US $546 |
||
|
55713A
|
55713A
55713-32040 Panel, Cowl Top Side, Rh[06.1994 -] CV4#,SV4# |
55713-32040 |
US $38.58 |
||
|
55714A
|
55714A
55714-32040 Panel, Cowl Top Side, Lh[06.1994 -] CV4#,SV4# |
55714-32040 |
US $38.58 |
||
|
55715A
|
55715A
55715-32040 Brace, Cowl Top To Apron, Rh[06.1994 -] CV4#,SV4# |
55715-32040 |
US $17.47 |
||
|
55716A
|
55716A
55716-32040 Brace, Cowl Top To Apron, Lh[06.1994 -] CV4#,SV4# |
55716-32040 |
US $17.47 |
||
|
55781D
|
55781D
55781-32080 Louver, Cowl Top Ventilator, Rh[06.1994 -] CV4#,SV4# |
55781-32080 |
US $52.12 |
||
|
55781D
|
55781D
55781-32090 Louver, Cowl Top Ventilator, Rh[06.1994 -] CV4#,SV4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
55781-32090 |
US $52.12 |
||
|
55782D
|
55782D
55782-32070 Louver, Cowl Top Ventilator, Lh[06.1994 -] CV4#,SV4# |
55782-32070 |
US $52.12 |
||
|
55782D
|
55782D
55782-32080 Louver, Cowl Top Ventilator, Lh[06.1994 -] CV4#,SV4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
55782-32080 |
US $52.12 |
||
|
55788A
|
55788A
55788-32020 Protector, Cowl Top Ventilator Louver[06.1994 -] CV4#,SV4# |
55788-32020 |
US $6.99 |
||
|
55789
|
55789
55789-32020 Seal, Cowl Top To Louver[06.1994 -] CV4#,SV4# |
55789-32020 |
US $6.99 |
||
|
55879B
|
55879B
55879-32040 Seal, Cowl Vent[05.1996 -] CV4#,SV4# |
55879-32040 |
US $5.24 |
||
|
56111
|
56111
56111-32400
Glass, Windshield
[06.1994 - 05.1996] CV4#,SV4#..SED ＊ＴＬ，Ｔ＝４．７６，ブロンズ,ｱﾘ(ﾄﾂﾌﾟｼｴ-ﾄﾞ) |
56111-32400 |
— | ||
|
56111
|
56111
56111-32410
Glass, Windshield
[06.1994 - 05.1996] CV4#,SV4#..SED ＊ＴＬ，Ｔ＝４．７６，ブルー |
56111-32410 |
— | ||
|
56111
|
56111
56111-32420
Glass, Windshield
[06.1994 - 01.1995] CV40,SV4#..SED ＊ＥＨＴＬ，Ｔ＝４．７６，ブロンズ,ｱﾘ(ﾄﾂﾌﾟｼｴ-ﾄﾞ) & ｶﾝﾚｲﾁ ｼﾖｳ |
56111-32420 |
— | ||
|
56111
|
56111
56111-32421
Glass, Windshield
[01.1995 - 05.1996] CV4#,SV4#..SED ＊ＴＬ，Ｔ＝４．７６，ブロンズ,ｱﾘ(ﾄﾂﾌﾟｼｴ-ﾄﾞ) & ｶﾝﾚｲﾁ ｼﾖｳ |
56111-32421 |
— | ||
|
56111
|
56111
56111-32430
Glass, Windshield
[06.1994 - 01.1995] CV40,SV4#..SED ＊ＥＨＴＬ，Ｔ＝４．７６，ブルー,ｱﾘ(ﾄﾂﾌﾟｼｴ-ﾄﾞ) & ｶﾝﾚｲﾁ ｼﾖｳ |
56111-32430 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-32510 Glass, Windshield[06.1994 - 01.1995] CV40,SV4#..SED ＊ＥＨＴＬ，Ｔ＝４．７６，ブルー,ｱﾘ(ﾄﾂﾌﾟｼｴ-ﾄﾞ) & ｶﾝﾚｲﾁ ｼﾖｳ |
56111-32510 |
US $1,616.16 |
||
|
56111
|
56111
56111-32431
Glass, Windshield
[01.1995 - 05.1996] CV4#,SV4#..SED ＊ＥＨＴＬ，Ｔ＝４．７６，ブルー,ｱﾘ(ﾄﾂﾌﾟｼｴ-ﾄﾞ) & ｶﾝﾚｲﾁ ｼﾖｳ |
56111-32431 |
— | ||
|
56111
|
56111
56111-32500
Glass, Windshield
[05.1996 - 06.1998] CV4#,SV4#..SED ＊ＴＬ，Ｔ＝４．７６，グリーン |
56111-32500 |
— | ||
|
56111
|
56111
56111-32510 Glass, Windshield[05.1996 - 06.1998] CV4#,SV4#..SED ＊ＥＨＴＬ，Ｔ＝４．７６，グリーン |
56111-32510 |
US $1,616.16 |
||
|
56114
|
56114
56114-22050 Retainer, Windshield Glass[06.1994 - 06.1998] CV4#,SV4# |
56114-22050 |
from US $4.13 |
||
|
56115A
|
56115A
56115-32010 Stopper, Windshield Glass, No.1[06.1994 - 06.1998] CV4#,SV4# |
56115-32010 |
US $4.22 |
||
|
9046707164
|
9046707164
90467-07164 Clip(For Front Fender Apron Seal) |
90467-07164 |
from US $1.29 |
||
|
9046708101
|
9046708101
90467-08101 Clip(For Hood To Cowl Top Seal) |
90467-08101 |
US $1.92 |
||
|
9046708177
|
9046708177
90467-08177 New Genuine Part |
90467-08177 |
US $1.76 |
||
