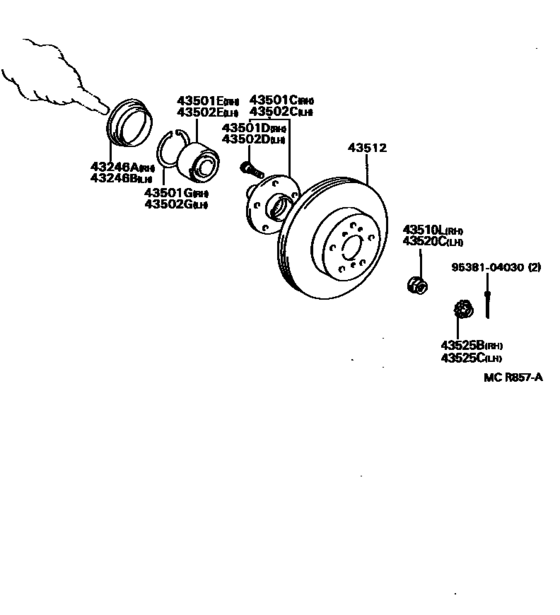

Front Axle Hub ([06.1994 - ] (9406- )) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1994 - 1998
- Sales region
- Japan
- Frame
- SV43
- grade
- ALPX
- body
- SED
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- CAMRY/ VISTA
- From
- 06.1994
- To
- 06.1998
- Vehicle Model
- Vista
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43246A
|
43246A
43246-17020 Deflecter, Rear Wheel Bearing Dust, No.2 Rh[06.1994 - 05.1996] CV4#,SV4# |
43246-17020 |
US $10.88 |
||
|
43246A
|
43246A
43246-32020 Deflector, Front Wheel Bearing Dust, No.1 Rh[06.1994 - 05.1996] CV4#,SV4# ｱﾘ(ABS) |
43246-32020 |
from US $11.51 |
||
|
43246B
|
43246B
43246-17020 Deflecter, Rear Wheel Bearing Dust, No.2 Rh[06.1994 - 05.1996] CV4#,SV40,41,43 |
43246-17020 |
US $10.88 |
||
|
43246B
|
43246B
43246-32020 Deflector, Front Wheel Bearing Dust, No.1 Rh[06.1994 - 05.1996] SV42; CV4#,SV40,41,43 ｱﾘ(ABS) |
43246-32020 |
from US $11.51 |
||
|
43501C
|
43501C
43502-32070 Hub Sub-Assy, Front Axle, Rh[06.1994 -] CV4#,SV4# |
43502-32070 |
US $160.16 |
||
|
43501D
|
43501D
90942-02049 Bolt, Hub[06.1994 -] CV4#,SV4# |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43501D
|
43501D
90942-02082 Bolt, Hub[06.1994 -] CV4#,SV4# |
90942-02082 |
from US $2.46 |
||
|
43501E
|
43501E
90369-43008 Bearing (For Rear Axle Shaft Rh)[06.1994 -] CV4#,SV4# |
90369-43008 |
from US $93.76 |
||
|
43501G
|
43501G
90521-88001 Ring, Snap (For Rear Axle Shaft)[06.1994 -] CV4#,SV4# |
90521-88001 |
from US $3.68 |
||
|
43502C
|
43502C
43502-32070 Hub Sub-Assy, Front Axle, Rh[06.1994 -] CV4#,SV4# |
43502-32070 |
US $160.16 |
||
|
43502D
|
43502D
90942-02049 Bolt, Hub[06.1994 -] CV4#,SV4# |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43502D
|
43502D
90942-02082 Bolt, Hub[06.1994 -] CV4#,SV4# |
90942-02082 |
from US $2.46 |
||
|
43502E
|
43502E
90369-43008 Bearing (For Rear Axle Shaft Rh)[06.1994 -] CV4#,SV4# |
90369-43008 |
from US $93.76 |
||
|
43502G
|
43502G
90521-88001 Ring, Snap (For Rear Axle Shaft)[06.1994 -] CV4#,SV4# |
90521-88001 |
from US $3.68 |
||
|
43510L
|
43510L
90178-22001 Nut (For Axle Shaft)[09.1997 -] CV43,SV4# |
90178-22001 |
from US $2.15 |
||
|
43510L
|
43510L
90179-22020 Nut (For Rear Axle Shaft)[06.1994 - 09.1997] CV4#,SV4# |
90179-22020 |
from US $3.06 |
||
|
43512
|
43512
43512-32280
Disc, Front
[06.1994 -] CV43,SV41,42,43 |
43512-32280 |
— | ||
|
43520C
|
43520C
90178-22001 Nut (For Axle Shaft)[09.1997 -] CV43,SV4# |
90178-22001 |
from US $2.15 |
||
|
43520C
|
43520C
90179-22020 Nut (For Rear Axle Shaft)[06.1994 - 09.1997] CV4#,SV4# |
90179-22020 |
from US $3.06 |
||
|
43525B
|
43525B
43525-20030 Cap, Front Wheel Adjusting Lock[06.1994 -] CV4#,SV4# |
43525-20030 |
from US $2.91 |
||
|
43525C
|
43525C
43525-20030 Cap, Front Wheel Adjusting Lock[06.1994 -] CV4#,SV4# |
43525-20030 |
from US $2.91 |
||
|
9538104030
|
9538104030
95381-04030 PIN |
95381-04030 |
from US $0.78 |
||
