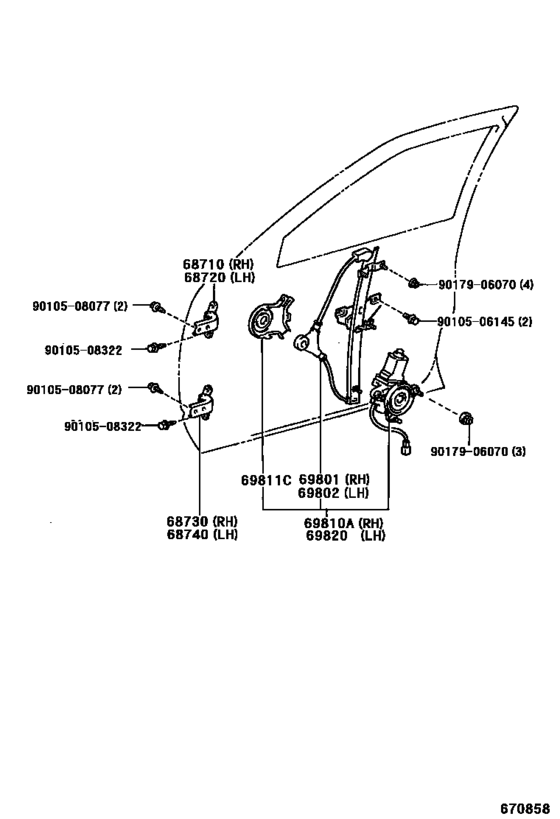

Front Door Window Regulator & Hinge ([06.1994 - ] (9406- )SED) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1994 - 1998
- Sales region
- Japan
- Frame
- SV43
- grade
- ALPX
- body
- SED
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- CAMRY/ VISTA
- From
- 06.1994
- To
- 06.1998
- Vehicle Model
- Vista
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-32060 Hinge Assy, Front Door, Upper Rh[06.1994 -] CV4#,SV4# |
68710-32060 |
US $44.55 |
||
|
68720
|
68720
68720-32060 Hinge Assy, Front Door, Upper Lh[06.1994 -] CV4#,SV4# |
68720-32060 |
US $44.55 |
||
|
68730
|
68730
68720-32060 Hinge Assy, Front Door, Upper Lh[06.1994 -] CV4#,SV4# |
68720-32060 |
US $44.55 |
||
|
68740
|
68740
68710-32060 Hinge Assy, Front Door, Upper Rh[06.1994 -] CV4#,SV4# |
68710-32060 |
US $44.55 |
||
|
69801
|
69801
69801-32080 Regulator Sub-Assy, Front Door Window, Rh[06.1994 -] CV4#,SV4#..SED |
69801-32080 |
US $91.73 |
||
|
69802
|
69802
69802-32080 Regulator Sub-Assy, Front Door Window, Lh[06.1994 -] CV4#,SV4#..SED |
69802-32080 |
US $91.73 |
||
|
69810A
|
69810A
69810-32130 Regulator Assy, Front Door Window, Rh[06.1994 - 04.1997] CV4#,SV4#..SED |
69810-32130 |
US $393.12 |
||
|
69810A
|
69810A
69810-32160 Regulator Assy, Front Door Window, Rh[04.1997 -] CV4#,SV4#..SED |
69810-32160 |
US $435.34 |
||
|
69811C
|
69811C
69811-22120 Plate, Front Door Power Window Regulator Base[06.1994 -] CV4#,SV4#..SED 右側 |
69811-22120 |
US $5.68 |
||
|
69811C
|
69811C
69812-22030 Plate, Front Door Power Window Regulator Base[06.1994 -] CV4#,SV4#..SED 左側 |
69812-22030 |
US $5.68 |
||
|
69820
|
69820
69820-32130 Regulator Assy, Front Door Window, Lh[06.1994 -] CV4#,SV4#..SED |
69820-32130 |
US $393.12 |
||
|
9010506145
|
9010506145
90105-06145 New Genuine Part |
90105-06145 |
US $0.87 |
||
|
9010508077
|
9010508077
90105-08077 BOLT |
90105-08077 |
US $1.76 |
||
|
9010508322
|
9010508322
90105-08322 BOLT WASHER BASED |
90105-08322 |
US $2.56 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
