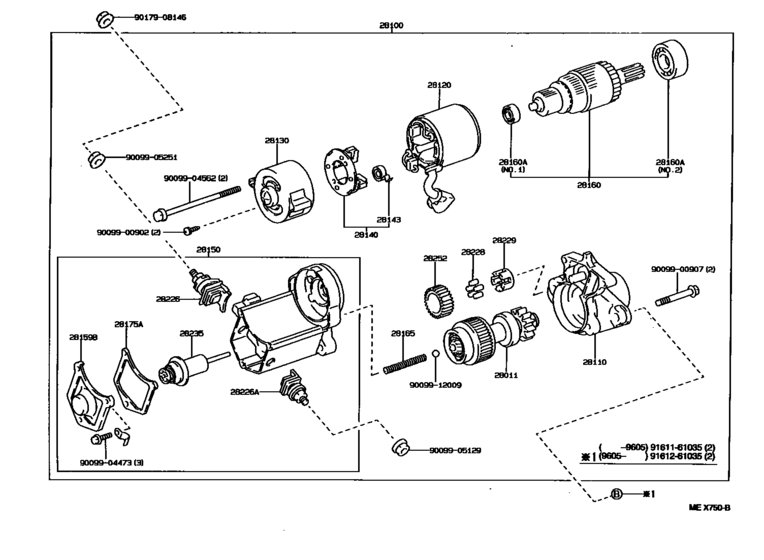

Starter ([06.1994 - ] 12V 1.0KW (9406- )3SFE,4SFE) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1994 - 1998
- Sales region
- Japan
- Frame
- SV43
- grade
- ALPX
- body
- SED
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- CAMRY/ VISTA
- From
- 06.1994
- To
- 06.1998
- Vehicle Model
- Vista
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-74060
Clutch Sub-Assy, Starter
[06.1994 -] 3SFE,4SFE..SV4# |
28011-74060 |
— | ||
|
28100
|
28100
28100-74200 Starter Assy[06.1994 -] 3SFE,4SFE..SV4# １２Ｖ １．０ＫＷ |
28100-74200 |
US $1,282.74 |
||
| replacement | |||||
|
28100
|
28100
28100-74140 Starter Assy[06.1994 -] 3SFE,4SFE..SV4# １２Ｖ １．０ＫＷ |
28100-74140 |
US $1,415.23 |
||
|
28110
|
28110
28110-74110 Housing Assy, Starter Drive[06.1994 -] 3SFE,4SFE..SV4# |
28110-74110 |
US $88.82 |
||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[06.1994 -] 3SFE,4SFE..SV4# |
28120-26071 |
— | ||
|
28130
|
28130
28130-74110
Frame Assy, Starter Commutator End
[06.1994 -] 3SFE,4SFE..SV4# |
28130-74110 |
— | ||
|
28140
|
28140
28140-74010
Holder Assy, Starter Brush
[06.1994 -] 3SFE,4SFE..SV4# |
28140-74010 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[06.1994 -] 3CT,3SFE,4SFE..CV4#,SV4# |
90099-17112 |
— | ||
|
28150
|
28150
28150-74200 Switch Assy, Magnet Starter[06.1994 -] 3SFE,4SFE..SV4# |
28150-74200 |
US $202.38 |
||
|
28159B
|
28159B
28159-10040
Cover, Magnet Switch
[06.1994 -] 3SFE,4SFE..SV4#; 3CT..CV4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28159-10040 |
— | ||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[06.1994 -] 3SFE,4SFE..SV4# |
28160-26071 |
— | ||
|
28160A
|
28160A
28253-45020
Bearing, Starter Armature
[06.1994 -] 3SFE,4SFE..SV4# ＮＯ．１ |
28253-45020 |
— | ||
|
28160A
|
28160A
90099-10113
Bearing, Starter Armature
[06.1994 -] 3SFE,4SFE..SV4# ＮＯ．２ |
90099-10113 |
— | ||
|
28165
|
28165
28165-74010
Spring, Starter Magnet Switch Return
[06.1994 -] 3SFE,4SFE..SV4# |
28165-74010 |
— | ||
|
28175A
|
28175A
28175-10040
Gasket, Magnet Switch Cover
[06.1994 -] 3SFE,4SFE..SV4#; 3CT..CV4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28175-10040 |
— | ||
|
28226
|
28226
28226-70040 Starter Kit, Battery Terminal[06.1994 - 06.1998] 3SFE,4SFE..SV4# |
28226-70040 |
from US $9.43 |
||
|
28226A
|
28226A
28226-72010 Starter Kit, Motor Terminal[06.1994 -] 3SFE,4SFE..SV4#; 3CT..CV4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28226-72010 |
from US $10.49 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[06.1994 -] 3CT,3SFE,4SFE..CV4#,SV4# |
28228-26040 |
— | ||
|
28229
|
28229
28229-26040
Retainer, Starter Idle Gear
[06.1994 -] 3SFE,4SFE..SV4#; 3CT..CV4# ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
28229-26040 |
— | ||
|
28235
|
28235
28235-74060
Plunger, Magnet Switch
[06.1994 -] 3SFE,4SFE..SV4# |
28235-74060 |
— | ||
|
28252
|
28252
28254-54070
Pinion, Starter Drive
[06.1994 -] 3SFE,4SFE..SV4# |
28254-54070 |
— | ||
|
9009900902
|
9009900902
90099-00902
Screw, W/washer(For Bearing Cover Setting)
|
90099-00902 |
— | ||
|
9009900907
|
9009900907
90099-00907
New Genuine Part
|
90099-00907 |
— | ||
|
9009904473
|
9009904473
90099-04473
New Genuine Part
|
90099-04473 |
— | ||
|
9009904562
|
9009904562
90099-04562
BOLT
|
90099-04562 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009905251
|
9009905251
90099-05251
New Genuine Part
|
90099-05251 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
