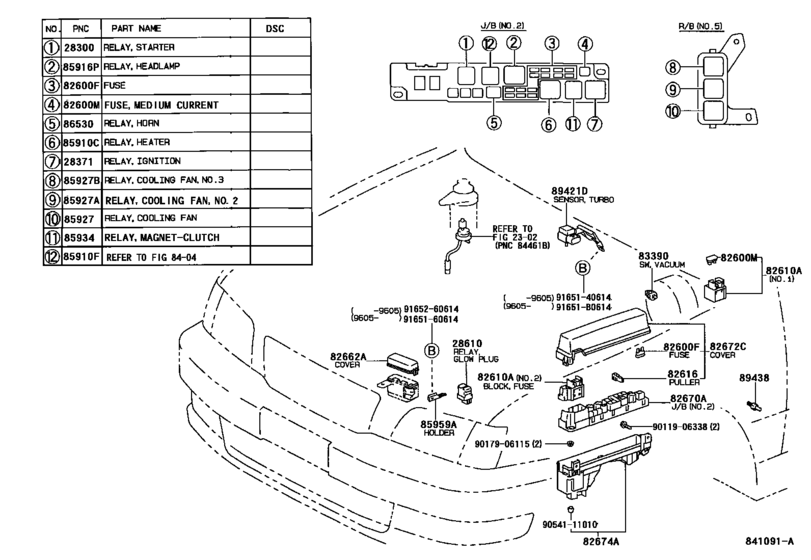

Switch & Relay & Computer ([06.1994 - ] ｴﾝｼﾞﾝﾙ-ﾑ (9406- )) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1994 - 1998
- Sales region
- Japan
- Frame
- SV43
- grade
- ALPX
- body
- SED
- ENGINE
- 3SFE
- TRANSMISSION
- ATM
- Model
- CAMRY/ VISTA
- From
- 06.1994
- To
- 06.1998
- Vehicle Model
- Vista
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-10020 Relay Assy, Starter[06.1994 -] 3CT,3SFE,4SFE..CV4#,SV4# |
28300-10020 |
from US $53.76 |
||
|
28371
|
28371
85925-17010 Relay, Ignition, No.1[06.1994 - 12.1994] 3SFE,4SFE..SV4# |
85925-17010 |
from US $40.87 |
||
|
28371
|
28371
90987-04002 Relay, Ignition, No.1[12.1994 - 05.1996] 3SFE,4SFE..SV4# |
90987-04002 |
from US $25.27 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[06.1994 - 06.1998] CV4#,SV4# ５Ａ，ミニ ヒューズ |
90982-09007 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09008 Fusible Link[06.1994 - 06.1998] CV4#,SV4# ７．５Ａ，ミニ ヒューズ |
90982-09008 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[06.1994 - 06.1998] CV4#,SV4# １０Ａ，ミニ ヒューズ |
90982-09009 |
US $1.12 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[06.1994 - 06.1998] CV4#,SV4# １５Ａ，ミニ ヒューズ |
90982-09010 |
from US $1.11 |
||
|
82600F
|
82600F
90982-09011 Fusible Link[06.1994 - 06.1998] CV4#,SV4# ２０Ａ，ミニ ヒューズ |
90982-09011 |
from US $0.94 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[06.1994 - 06.1998] CV4#,SV4# ３０Ａ，ミニ ヒューズ |
90982-09013 |
from US $0.94 |
||
|
82600M
|
82600M
90982-10001 Instrument Panel Fusible Link[06.1994 - 06.1998] CV4#,SV4# ３０Ａ |
90982-10001 |
from US $3.45 |
||
|
82600M
|
82600M
90982-10002 Fuse, Fuse Block[06.1994 - 06.1998] CV4#,SV4# ４０Ａ |
90982-10002 |
US $4.48 |
||
|
82610A
|
82610A
82610-32040 Block Assy, Fuse[05.1996 -] CV4#,SV4# ＮＯ．１ |
82610-32040 |
US $11.79 |
||
|
82610A
|
82610A
82613-32020 Block Assy, Fuse[06.1994 - 05.1996] CV4#,SV4# |
82613-32020 |
US $28.54 |
||
|
82616
|
82616
82616-20010 Puller, Fuse[06.1994 - 06.1998] CV4#,SV4# |
82616-20010 |
from US $2.38 |
||
|
82662A
|
82662A
82662-32030 Cover, Relay Block, Upper, No.1[06.1994 -] SV4# |
82662-32030 |
US $15.14 |
||
|
82670A
|
82670A
82720-32010 Block Assy, Junction, No.1[06.1994 - 05.1996] SV42; SV40,43;SV41..ETO,LUM ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ; SV41..ALPX,VX,ZX ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ OR ｱﾘ(*TRC) |
82720-32010 |
US $349.44 |
||
|
82670A
|
82670A
82720-32011 Block Assy, Junction, No.1[05.1996 - 06.1998] SV42; SV40,41,43 ｶﾝﾚｲﾁ ｼﾖｳ OR ﾕｷｸﾞﾆ ｼﾖｳ |
82720-32011 |
US $347.98 |
||
|
82670A
|
82670A
82720-32030 Block Assy, Junction, No.1[06.1994 - 06.1998] SV40,41,43 |
82720-32030 |
US $346.53 |
||
|
82672C
|
82672C
82672-32420 Cover, Junction Block[06.1994 - 05.1996] SV4# |
82672-32420 |
US $50.67 |
||
|
82672C
|
82672C
82672-32421 Cover, Junction Block[05.1996 - 06.1998] SV4# |
82672-32421 |
US $53.14 |
||
|
82674A
|
82674A
82674-32020 Cover, Junction Block, Lower[06.1994 - 06.1998] CV4#,SV4# |
82674-32020 |
US $67.70 |
||
|
85910C
|
85910C
90987-04002 Relay, Ignition, No.1[06.1994 -] CV4#,SV4# |
90987-04002 |
from US $25.27 |
||
|
85916P
|
85916P
90987-02006 Relay[06.1994 -] CV4#,SV4# |
90987-02006 |
from US $27.65 |
||
|
85927
|
85927
90987-03003 Relay Assy, Fuel Pump[06.1994 -] SV4# |
90987-03003 |
from US $24.14 |
||
|
85927A
|
85927A
90987-04003 Relay, Ignition, No.1[06.1994 -] SV4# |
90987-04003 |
US $67.94 |
||
|
85927B
|
85927B
90987-02009 Relay Assy[06.1994 -] SV4# |
90987-02009 |
from US $32.51 |
||
|
85934
|
85934
90987-02009 Relay Assy[06.1994 -] CV4#,SV4# |
90987-02009 |
from US $32.51 |
||
|
86530
|
86530
86530-20070 Relay Assy, Horn[06.1994 -] CV4#,SV4# |
86530-20070 |
from US $12.19 |
||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9011906338
|
9011906338
90119-06338
New Genuine Part
|
90119-06338 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $1.92 |
||
|
9054111010
|
9054111010
90541-11010 Cushion, Luggage Compartment Door |
90541-11010 |
from US $0.96 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9165260614
|
9165260614
91652-60614 New Genuine Part |
91652-60614 |
US $1.60 |
