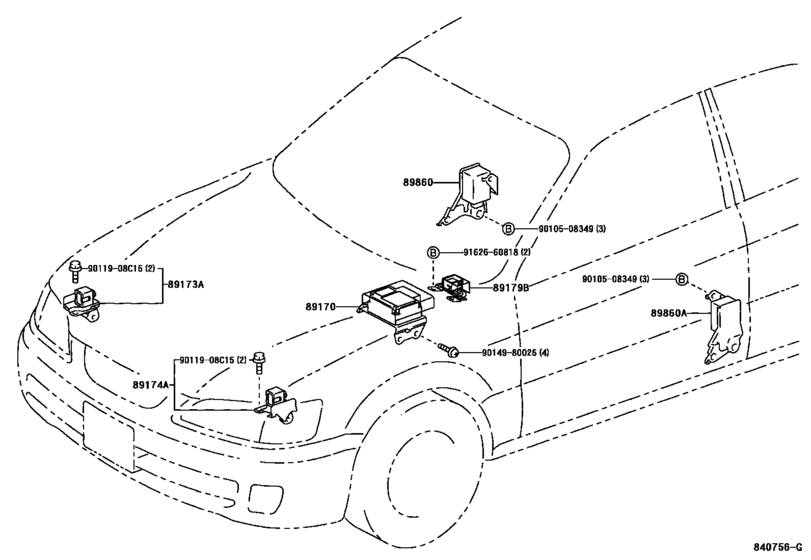

Air Bag ([12.1996 - ] (9612- )) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89170
|
89170
89170-33170 Sensor Assy, Air Bag[08.1998 -] MCV25,SXV25 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) |
89170-33170 |
US $1,514.24 |
||
|
89170
|
89170
89170-33180 Sensor Assy, Air Bag[08.1998 -] MCV25,SXV25 |
89170-33180 |
US $1,514.24 |
||
|
89173A
|
89173A
89173-39195 Sensor, Air Bag, Front[08.1998 - 09.2001] MCV2#,SXV2# |
89173-39195 |
US $179.09 |
||
|
89174A
|
89174A
89174-39065 Sensor, Air Bag[08.1998 - 09.2001] MCV2#,SXV2# |
89174-39065 |
US $179.09 |
||
|
89179B
|
89179B
89179-33010 Sensor, Collision Detection[12.1996 -] MCV2#,SXV2# |
89179-33010 |
US $80.08 |
||
|
89860
|
89860
89860-33030 Sensor Assy, Side Air Bag, Rh[08.1997 -] MCV2#,SXV2# |
89860-33030 |
US $334.88 |
||
|
89860A
|
89860A
89830-33030 Sensor Assy, Side Air Bag, Lh[08.1997 -] MCV2#,SXV2# |
89830-33030 |
US $334.88 |
||
|
9011908C15
|
9011908C15
90119-08C15 BOLT WWASHER |
90119-08C15 |
US $1.43 |
||
|
9010508349
|
9010508349
90105-08349 New Genuine Part |
90105-08349 |
US $1.75 |
||
|
9014980026
|
9014980026
90149-80026 New Genuine Part |
90149-80026 |
US $0.96 |
||
|
9162660818
|
9162660818
91626-60818
Bolt (For Transmission Control Cable Bracket)
|
91626-60818 |
— | ||
| replacement | |||||
|
9162660818
|
9162660818
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
