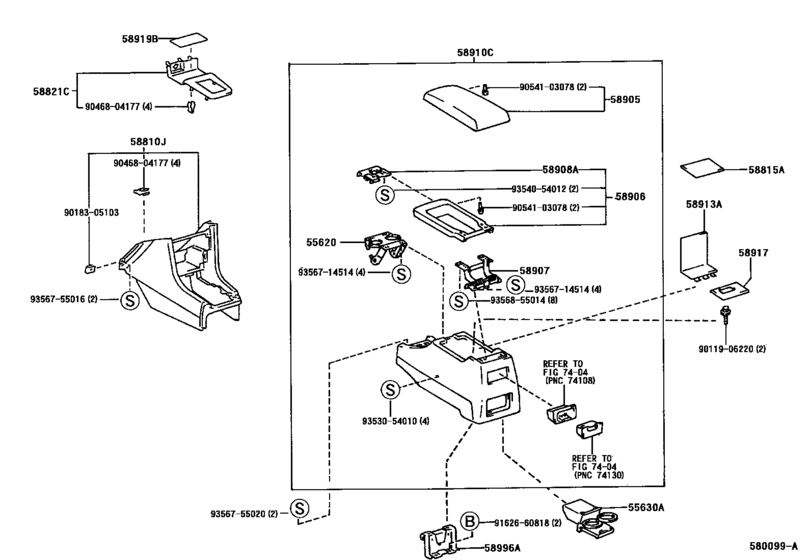

Console Box & Bracket ([12.1996 - ] (9612- )) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55620
|
55620
55620-33080-B0 Holder Assy, Instrument Panel Cup[12.1996 - 08.1999] MCV2#,SXV2# BLUISH GRAY,TRIM1# |
55620-33080-B0 |
US $99.01 |
||
| replacement | |||||
|
55620
|
55620
55620-33080-C0 Holder Assy, Instrument Panel Cup[12.1996 - 08.1999] MCV2#,SXV2# BLUISH GRAY,TRIM1# |
55620-33080-C0 |
US $96.10 |
||
|
55620
|
55620
55620-33080-G0 Holder Assy, Instrument Panel Cup[12.1996 -] MCV2#,SXV2# DK.SAGE,TRIM6# |
55620-33080-G0 |
US $99.01 |
||
| replacement | |||||
|
55620
|
55620
55620-33080-C0 Holder Assy, Instrument Panel Cup[12.1996 -] MCV2#,SXV2# DK.SAGE,TRIM6# |
55620-33080-C0 |
US $96.10 |
||
|
55630A
|
55630A
55630-33010-B0 Holder, Rear Console Box, Cup[12.1996 - 08.1999] MCV2#,SXV2# BLUISH GRAY,TRIM1# |
55630-33010-B0 |
US $57.95 |
||
| replacement | |||||
|
55630A
|
55630A
55630-33010-C0 Holder, Rear Console Box, Cup[12.1996 - 08.1999] MCV2#,SXV2# BLUISH GRAY,TRIM1# |
55630-33010-C0 |
US $57.95 |
||
|
55630A
|
55630A
55630-33010-G0 Holder, Rear Console Box, Cup[12.1996 -] MCV2#,SXV2# DK.SAGE,TRIM6# |
55630-33010-G0 |
US $57.95 |
||
| replacement | |||||
|
55630A
|
55630A
55630-33010-C0 Holder, Rear Console Box, Cup[12.1996 -] MCV2#,SXV2# DK.SAGE,TRIM6# |
55630-33010-C0 |
US $57.95 |
||
|
58810J
|
58810J
58810-33050-B0 Box Assy, Console[12.1996 - 08.1999] MCV2#,SXV2# BLUISH GRAY,TRIM1# |
58810-33050-B0 |
US $263.54 |
||
|
58810J
|
58810J
58810-33050-G0 Box Assy, Console[12.1996 -] MCV2#,SXV2# DK.SAGE,TRIM6# |
58810-33050-G0 |
US $263.54 |
||
|
58815A
|
58815A
58815-33070 Carpet, Console Box[12.1996 -] MCV2#,SXV2# |
58815-33070 |
US $2.48 |
||
|
58821C
|
58821C
58804-33230
Panel, Console, Upper
[08.1997 -] MCV2#,SXV2# ﾓｸﾒ |
58804-33230 |
— | ||
|
58905
|
58905
58905-33130-B1 Door Sub-Assy, Console Compartment[12.1996 - 08.1999] MCV2#,SXV2# BLUE GRAY,TRIM1# |
58905-33130-B1 |
US $317.41 |
||
|
58905
|
58905
58905-33130-G1 Door Sub-Assy, Console Compartment[12.1996 -] MCV2#,SXV2# SAGE,TRIM6# |
58905-33130-G1 |
US $317.41 |
||
|
58905
|
58905
58905-33160-G0 Door Sub-Assy, Console Compartment[08.1999 -] MCV21,SXV2#..SED ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
58905-33160-G0 |
US $473.20 |
||
| replacement | |||||
|
58905
|
58905
58905-33160-G4 Door Sub-Assy, Console Compartment[08.1999 -] MCV21,SXV2#..SED ﾎﾝｶﾞﾜ,SAGE,TRIM6# |
58905-33160-G4 |
US $473.20 |
||
|
58905
|
58905
58905-33160-G4 Door Sub-Assy, Console Compartment[08.1998 - 08.1999] MCV2#,SXV2# ﾎﾝｶﾞﾜ,DK.SAGE,TRIM6# |
58905-33160-G4 |
US $473.20 |
||
|
58906
|
58906
58906-33050-B0 Door Sub-Assy, Upper Console[12.1996 - 08.1999] MCV2#,SXV2# BLUISH GRAY,TRIM1# |
58906-33050-B0 |
US $94.64 |
||
|
58906
|
58906
58906-33050-G0 Door Sub-Assy, Upper Console[12.1996 -] MCV2#,SXV2# DK. SAGE,TRIM6# |
58906-33050-G0 |
US $94.64 |
||
| replacement | |||||
|
58906
|
58906
58906-33040-C0 Door Sub-Assy, Upper Console[12.1996 -] MCV2#,SXV2# DK. SAGE,TRIM6# |
58906-33040-C0 |
US $94.64 |
||
|
58907
|
58907
58907-33060 Hinge Sub-Assy, Console Compartment Door[12.1996 -] MCV2#,SXV2# |
58907-33060 |
US $38 |
||
|
58908A
|
58908A
58908-33030 Lock Sub-Assy, Console Compartment Door[12.1996 -] MCV2#,SXV2# |
58908-33030 |
from US $12.42 |
||
|
58910C
|
58910C
58910-33150-B0 Box Assy, Console, Rear[12.1996 - 08.1999] MCV2#,SXV2# BLUISH GRAY,TRIM1# |
58910-33150-B0 |
US $946.40 |
||
|
58910C
|
58910C
58910-33150-G0 Box Assy, Console, Rear[12.1996 -] MCV2#,SXV2# DK.SAGE,TRIM6# |
58910-33150-G0 |
US $946.40 |
||
|
58910C
|
58910C
58910-33170-G0 Box Assy, Console, Rear[08.1999 -] MCV21,SXV2#..SED ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),SAGE,TRIM6# |
58910-33170-G0 |
US $1,093.46 |
||
|
58910C
|
58910C
58910-33170-G2 Box Assy, Console, Rear[08.1998 - 08.1999] MCV21,SXV2#..SED ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ & ﾚｻﾞ-ｼ-ﾄ),DK.SAGE,TRIM6# |
58910-33170-G2 |
US $1,093.46 |
||
|
58913A
|
58913A
58913-33030 Panel, Box, No.3[12.1996 -] MCV2#,SXV2# |
58913-33030 |
US $21.84 |
||
|
58917
|
58917
58917-33050 Mat, Box Bottom, No.2[08.1998 - 08.1999] SXV25..SED |
58917-33050 |
US $4.37 |
||
|
58919B
|
58919B
58919-33020 Plate, Console Box[12.1996 -] MCV2#,SXV2# |
58919-33020 |
US $4.51 |
||
|
58996A
|
58996A
58996-33020 Bracket, Console Box Mounting, No.2[12.1996 -] MCV2#,SXV2# |
58996-33020 |
US $18.05 |
||
|
9011906220
|
9011906220
90119-06220 New Genuine Part |
90119-06220 |
US $1.60 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.72 |
||
|
9054103078
|
9054103078
90541-03078 Cushion(For Cup Holder) |
90541-03078 |
from US $1.60 |
||
|
9162660818
|
9162660818
91626-60818
Bolt (For Transmission Control Cable Bracket)
|
91626-60818 |
— | ||
| replacement | |||||
|
9162660818
|
9162660818
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
9353054010
|
9353054010
93530-54010 SCREW |
93530-54010 |
from US $0.68 |
||
| replacement | |||||
|
9353054010
|
9353054010
90084-16012 SCREW |
90084-16012 |
US $1.77 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.61 |
||
|
9356714514
|
9356714514
93567-14514 SCREW TAPPING |
93567-14514 |
US $0.87 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
|
9356755020
|
9356755020
93567-55020 SCREW |
93567-55020 |
US $1.25 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
