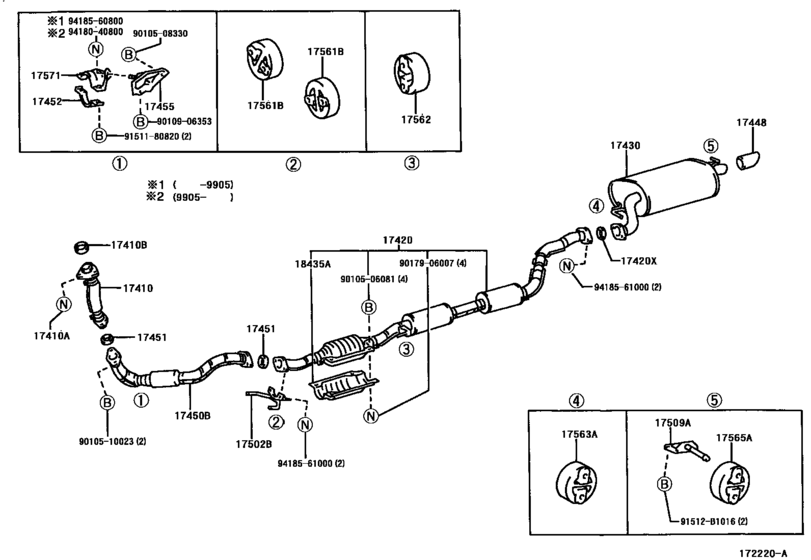

Exhaust Pipe ([06.1997 - ] (9706- )5SFE..SXV25) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-7A670 Pipe Assy, Exhaust, Front[06.1997 -] 5SFE..SXV25 |
17410-7A670 |
US $168.90 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[12.1996 -] 5SFE..SXV2# |
90179-10070 |
from US $1.37 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[12.1996 -] 5SFE..SXV2# |
90080-17187 |
US $44.70 |
||
|
17410B
|
17410B
90917-06066 Gasket, Exhaust Pipe[12.1996 -] 5SFE..SXV2# |
90917-06066 |
from US $4.80 |
||
|
17420
|
17420
17420-7A142 Pipe Assy, Exhaust, Center[08.1998 - 06.1999] 5SFE..SXV25 |
17420-7A142 |
US $1,348.26 |
||
| replacement | |||||
|
17420
|
17420
17420-7A270 Pipe Assy, Exhaust, Center[08.1998 - 06.1999] 5SFE..SXV25 |
17420-7A270 |
US $1,348.26 |
||
|
17420
|
17420
17420-7A270 Pipe Assy, Exhaust, Center[06.1999 -] 5SFE..SXV25 |
17420-7A270 |
US $1,348.26 |
||
|
17420X
|
17420X
90917-06049 Gasket, Exhaust Pipe, Center[06.1997 -] 5SFE..SXV25 |
90917-06049 |
from US $3.33 |
||
|
17430
|
17430
17430-7B160 Pipe Assy, Exhaust, Tail[08.1998 -] 5SFE..SXV25..SED |
17430-7B160 |
US $532.90 |
||
|
17450B
|
17450B
17450-74100 Pipe Assy, Exhaust, Front No.2[06.1997 -] 5SFE..SXV25 |
17450-74100 |
US $291.20 |
||
|
17451
|
17451
90917-06046 Gasket, Exhaust Pipe[06.1997 -] 2MZFE..MCV25 ﾚﾌﾄ(ﾌﾛﾝﾄ); 5SFE..SXV25 フロント |
90917-06046 |
from US $3.72 |
||
|
17451
|
17451
90917-06078 Gasket, Exhaust Pipe[06.1997 -] 5SFE..SXV25 リヤ |
90917-06078 |
from US $6.09 |
||
| replacement | |||||
|
17451
|
17451
90917-A6003 Gasket, Exhaust Pipe[06.1997 -] 5SFE..SXV25 リヤ |
90917-A6003 |
US $27.68 |
||
|
17452
|
17452
17452-74080
Clamp, Exhaust Pipe
[12.1996 -] 5SFE..SXV2# |
17452-74080 |
— | ||
|
17455
|
17455
17455-74080
Bracket, Exhaust Pipe
[12.1996 -] 5SFE..SXV2# |
17455-74080 |
— | ||
|
17502B
|
17502B
17503-74090 Bracket Sub-Assy, Catalytic Converter, Front[06.1997 -] 5SFE..SXV25 |
17503-74090 |
US $35.24 |
||
|
17509A
|
17509A
17509-74200 Bracket Sub-Assy, Exhaust Pipe No.4 Support[06.1997 - 03.2001] 2MZFE,5SFE..MCV25,SXV25 |
17509-74200 |
US $20.53 |
||
| replacement | |||||
|
17509A
|
17509A
17509-74201 Bracket Sub-Assy, Exhaust Pipe No.4 Support[06.1997 - 03.2001] 2MZFE,5SFE..MCV25,SXV25 |
17509-74201 |
US $20.53 |
||
|
17509A
|
17509A
17509-74201 Bracket Sub-Assy, Exhaust Pipe No.4 Support[03.2001 -] 2MZFE,5SFE..MCV25,SXV25 |
17509-74201 |
US $20.53 |
||
|
17561B
|
17561B
17565-15140 Bolt Or Ring, Exhaust Tail Pipe (For Front)[06.1997 -] 2MZFE,5SFE..MCV25,SXV25 |
17565-15140 |
from US $8.33 |
||
|
17562
|
17562
17565-15140 Bolt Or Ring, Exhaust Tail Pipe (For Front)[06.1997 -] 2MZFE,5SFE..MCV25,SXV25 |
17565-15140 |
from US $8.33 |
||
|
17563A
|
17563A
17565-15140 Bolt Or Ring, Exhaust Tail Pipe (For Front)[06.1997 -] 2MZFE,5SFE..MCV25,SXV25 |
17565-15140 |
from US $8.33 |
||
|
17565A
|
17565A
17565-20060 Support, Exhaust Pipe, No.3[06.1997 -] 2MZFE,5SFE..MCV25,SXV25 |
17565-20060 |
US $16.89 |
||
|
17571
|
17571
17571-74490 Bracket, Exhaust Pipe Support, No.1[06.1997 -] 5SFE..SXV25 |
17571-74490 |
US $36.11 |
||
|
18435A
|
18435A
18435-16170 Protector, Monolithic Converter[12.1996 - 06.1999] 2MZFE,5SFE..MCV2#,SXV2# |
18435-16170 |
US $43.53 |
||
| replacement | |||||
|
18435A
|
18435A
18435-20020 Protector, Catalytic Converter[12.1996 - 06.1999] 2MZFE,5SFE..MCV2#,SXV2# |
18435-20020 |
US $67.44 |
||
|
18435A
|
18435A
18435-16190 Protector, Monolithic Converter[06.1999 - 08.1999] 5SFE..SXV2#;2MZFE..MCV2#..WG |
18435-16190 |
US $43.53 |
||
|
91512B1016
|
91512B1016
91512-B1016 New Genuine Part |
91512-B1016 |
US $2.33 |
||
|
9010506081
|
9010506081
90105-06081
BOLT FLANGE
|
90105-06081 |
— | ||
| replacement | |||||
|
9010506081
|
9010506081
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.68 |
||
|
9010508330
|
9010508330
90105-08330
Bolt
|
90105-08330 |
— | ||
| replacement | |||||
|
9010508330
|
9010508330
91511-B0816 BOLT |
91511-B0816 |
US $0.84 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $3.05 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $0.96 |
||
|
9010906353
|
9010906353
90109-06353 New Genuine Part |
90109-06353 |
US $1.46 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.84 |
||
|
9151180820
|
9151180820
91511-80820 BOLT FLANGE |
91511-80820 |
from US $0.80 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.56 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $0.82 |
||
|
9418561000
|
9418561000
94185-61000 NUTLOCK |
94185-61000 |
from US $0.96 |
||
