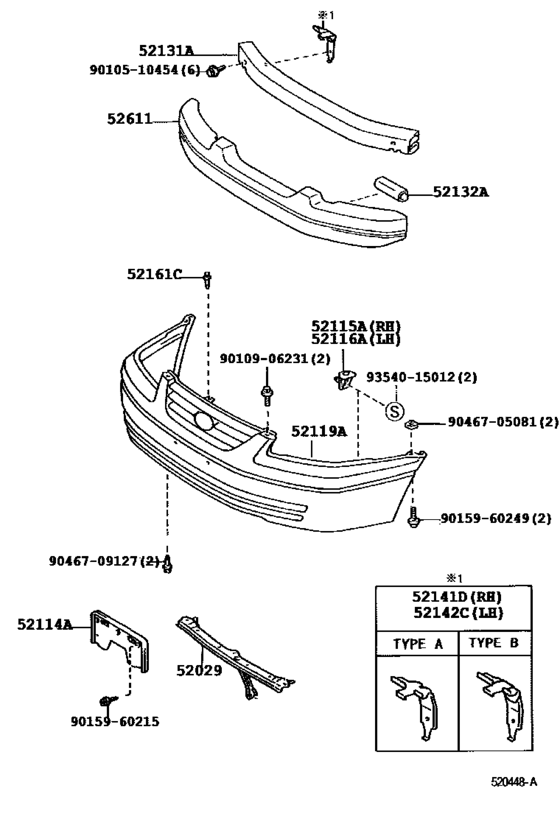

Front Bumper & Bumper Stay ([08.1998 - ] ﾘﾐﾂｸｽ *(R) (9808- )SED) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52115A
|
52115A
52115-33030 Support, Front Bumper Side, Rh[12.1996 - 08.1999] MCV2#,SXV2# |
52115-33030 |
US $6.12 |
||
|
52115A
|
52115A
52115-33050 Support, Front Bumper Side, Rh[08.1999 -] MCV2#,SXV2# |
52115-33050 |
from US $6.64 |
||
|
52116A
|
52116A
52115-33030 Support, Front Bumper Side, Rh[12.1996 - 08.1999] MCV2#,SXV2# |
52115-33030 |
US $6.12 |
||
|
52116A
|
52116A
52116-33040 Support, Front Bumper Side, Lh[08.1999 -] MCV2#,SXV2# |
52116-33040 |
from US $8.06 |
||
|
52119A
|
52119A
52119-33130-A1 Cover, Front Bumper[08.1998 - 08.1999] MCV2#,SXV2# SU.WHITE PM,051 |
52119-33130-A1 |
US $1,176.45 |
||
| replacement | |||||
|
52119A
|
52119A
52119-33911 Cover, Front BumperFRONT BUMPER [08.1998 - 08.1999] MCV2#,SXV2# SU.WHITE PM,051 |
52119-33911 |
US $709.07 |
||
|
52119A
|
52119A
52119-33130-B1 Cover, Front Bumper[12.1996 - 08.1999] MCV2#,SXV2# SILVER ME,199 |
52119-33130-B1 |
US $1,176.45 |
||
| replacement | |||||
|
52119A
|
52119A
52119-33911 Cover, Front BumperFRONT BUMPER [12.1996 - 08.1999] MCV2#,SXV2# SILVER ME,199 |
52119-33911 |
US $709.07 |
||
|
52119A
|
52119A
52119-33130-G2 Cover, Front Bumper[08.1998 - 08.1999] MCV21,SXV2#..SED DK.GREEN MC.P.I.O.,6N9 |
52119-33130-G2 |
US $1,176.45 |
||
| replacement | |||||
|
52119A
|
52119A
52119-33911 Cover, Front BumperFRONT BUMPER [08.1998 - 08.1999] MCV21,SXV2#..SED DK.GREEN MC.P.I.O.,6N9 |
52119-33911 |
US $709.07 |
||
|
52119A
|
52119A
52119-33130-G3 Cover, Front Bumper[08.1998 - 08.1999] MCV21,SXV2#..SED GREEN MC.,6R1 |
52119-33130-G3 |
US $1,176.45 |
||
| replacement | |||||
|
52119A
|
52119A
52119-33911 Cover, Front BumperFRONT BUMPER [08.1998 - 08.1999] MCV21,SXV2#..SED GREEN MC.,6R1 |
52119-33911 |
US $709.07 |
||
|
52119A
|
52119A
52119-33130-J0 Cover, Front Bumper[12.1996 - 08.1999] MCV2#,SXV2# DK.BLUE M.M.,8L3 |
52119-33130-J0 |
US $1,176.45 |
||
| replacement | |||||
|
52119A
|
52119A
52119-33911 Cover, Front BumperFRONT BUMPER [12.1996 - 08.1999] MCV2#,SXV2# DK.BLUE M.M.,8L3 |
52119-33911 |
US $709.07 |
||
|
52119A
|
52119A
52119-33150-A0 Cover, Front Bumper[12.1996 - 08.1999] MCV21,SXV2#..SED SU.WHITE PM,28Y |
52119-33150-A0 |
US $1,231.78 |
||
|
52119A
|
52119A
52119-33240-A0 Cover, Front Bumper[08.1999 -] MCV2#,SXV2# SUPER WHITE 2,040 |
52119-33240-A0 |
US $1,138.59 |
||
| replacement | |||||
|
52119A
|
52119A
52119-33919 Cover, Front BumperFRONT BUMPER [08.1999 -] MCV2#,SXV2# SUPER WHITE 2,040 |
52119-33919 |
US $678.96 |
||
|
52119A
|
52119A
52119-33240-A1 Cover, Front Bumper[08.1999 -] MCV2#,SXV2# SU.WHITE PM,051 |
52119-33240-A1 |
US $1,138.59 |
||
| replacement | |||||
|
52119A
|
52119A
52119-33919 Cover, Front BumperFRONT BUMPER [08.1999 -] MCV2#,SXV2# SU.WHITE PM,051 |
52119-33919 |
US $678.96 |
||
|
52119A
|
52119A
52119-33240-B1 Cover, Front Bumper[08.1999 -] MCV2#,SXV2# DK.GRAY M.M.,1C6 |
52119-33240-B1 |
US $1,138.59 |
||
| replacement | |||||
|
52119A
|
52119A
52119-33919 Cover, Front BumperFRONT BUMPER [08.1999 -] MCV2#,SXV2# DK.GRAY M.M.,1C6 |
52119-33919 |
US $678.96 |
||
|
52119A
|
52119A
52119-33240-B2 Cover, Front Bumper[08.1999 -] MCV2#,SXV2# SLVER ME.,1C8 |
52119-33240-B2 |
US $1,138.59 |
||
| replacement | |||||
|
52119A
|
52119A
52119-33919 Cover, Front BumperFRONT BUMPER [08.1999 -] MCV2#,SXV2# SLVER ME.,1C8 |
52119-33919 |
US $678.96 |
||
|
52119A
|
52119A
52119-33240-G0 Cover, Front Bumper[08.1999 -] MCV21,SXV2#..SED DK.GREEN MC.P.I.O.,6N9 |
52119-33240-G0 |
US $1,138.59 |
||
| replacement | |||||
|
52119A
|
52119A
52119-33919 Cover, Front BumperFRONT BUMPER [08.1999 -] MCV21,SXV2#..SED DK.GREEN MC.P.I.O.,6N9 |
52119-33919 |
US $678.96 |
||
|
52119A
|
52119A
52119-33250-A1 Cover, Front Bumper[08.1999 -] MCV2#,SXV2# SU.WHITE PM,2GF |
52119-33250-A1 |
US $1,193.92 |
||
|
52131A
|
52131A
52131-33050 Reinforcement, Front Bumper[08.1998 - 08.1999] MCV2#,SXV2# |
52131-33050 |
from US $150.93 |
||
|
52131A
|
52131A
52131-33080 Reinforcement, Front Bumper[08.1999 -] MCV2#,SXV2# |
52131-33080 |
US $308.67 |
||
| replacement | |||||
|
52131A
|
52131A
52131-33090 Reinforcement, Front BumperFRONT BUMPER [08.1999 -] MCV2#,SXV2# |
52131-33090 |
from US $181.33 |
||
|
52132A
|
52132A
52132-33020 Reinforcement, Front Bumper, No.2[12.1996 -] MCV2#,SXV2# |
52132-33020 |
US $74.26 |
||
|
52161C
|
52161C
52161-16010 Clip[12.1996 - 08.1999] MCV2#,SXV2# |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161C
|
52161C
52161-0K040 Clip[12.1996 - 08.1999] MCV2#,SXV2# |
52161-0K040 |
from US $1.50 |
||
|
52161C
|
52161C
52161-02020 Clip[12.1996 - 08.1999] MCV2#,SXV2# |
52161-02020 |
US $5.27 |
||
|
52611
|
52611
52611-33060 Absorber, Front Bumper Energy[12.1996 - 08.1999] MCV2#,SXV2# |
52611-33060 |
US $170.35 |
||
|
52611
|
52611
52611-33110 Absorber, Front Bumper Energy[08.1999 -] MCV2#,SXV2# |
52611-33110 |
US $160.16 |
||
|
9010510454
|
9010510454
90105-10454 New Genuine Part |
90105-10454 |
US $1.16 |
||
|
9010906231
|
9010906231
90109-06231 BOLT |
90109-06231 |
from US $0.82 |
||
|
9015960215
|
9015960215
90159-60215 SCREW |
90159-60215 |
from US $1.13 |
||
|
9015960249
|
9015960249
90159-60249 SCREW WWASHER TAPP |
90159-60249 |
from US $1.75 |
||
|
9046705081
|
9046705081
90467-05081 COLLAR |
90467-05081 |
from US $1.52 |
||
| replacement | |||||
|
9046705081
|
9046705081
90467-A0018 CLIP |
90467-A0018 |
US $4.65 |
||
|
9046709127
|
9046709127
90467-09127 Piece, Rear Bumper |
90467-09127 |
from US $1.66 |
||
|
9354015012
|
9354015012
93540-15012
New Genuine Part
|
93540-15012 |
— | ||
