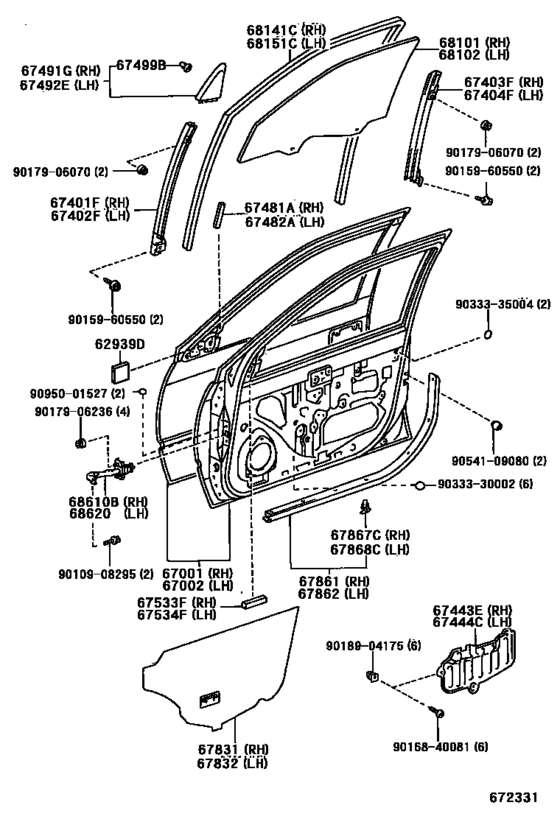

Front Door Panel & Glass ([12.1996 - ] (9612- )) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62939D
|
62939D
62939-32030 Silencer, Quarter Vent[12.1996 -] MCV2#,SXV2# |
62939-32030 |
US $5.10 |
||
|
67001
|
67001
67001-33060 Panel Sub-Assy, Front Door, Rh[12.1996 -] MCV2#,SXV2# |
67001-33060 |
US $910 |
||
|
67002
|
67002
67002-33060 Panel Sub-Assy, Front Door, Lh[12.1996 -] MCV2#,SXV2# |
67002-33060 |
US $910 |
||
|
67401F
|
67401F
67401-33020 Frame Sub-Assy, Front Door, Front Lower Rh[12.1996 -] MCV2#,SXV2# |
67401-33020 |
US $34.07 |
||
|
67402F
|
67402F
67402-33020 Frame Sub-Assy, Front Door, Front Lower Lh[12.1996 -] MCV2#,SXV2# |
67402-33020 |
from US $34.07 |
||
|
67403F
|
67403F
67403-33010 Frame Sub-Assy, Front Door, Rear Lower Rh[12.1996 -] MCV2#,SXV2# |
67403-33010 |
US $29.99 |
||
|
67404F
|
67404F
67404-33010 Frame Sub-Assy, Front Door, Rear Lower Lh[12.1996 -] MCV2#,SXV2# |
67404-33010 |
US $29.99 |
||
|
67443E
|
67443E
67443-33020 Plate, Front Door Inside Panel, Rh[12.1996 -] MCV2#,SXV2# |
67443-33020 |
US $40.48 |
||
|
67444C
|
67444C
67444-33020 Plate, Front Door Inside Panel, Lh[12.1996 -] MCV2#,SXV2# |
67444-33020 |
US $40.48 |
||
|
67481A
|
67481A
67481-33020 Seal, Front Door Front Lower Frame, Rh[12.1996 -] MCV2#,SXV2# |
67481-33020 |
US $3.35 |
||
|
67482A
|
67482A
67481-33020 Seal, Front Door Front Lower Frame, Rh[12.1996 -] MCV2#,SXV2# |
67481-33020 |
US $3.35 |
||
|
67491G
|
67491G
67491-33040 Garnish, Front Door Lower Frame Bracket, Rh[12.1996 -] SXV2# |
67491-33040 |
US $17.76 |
||
| replacement | |||||
|
67491G
|
67491G
67491-33050 Garnish, Front Door Lower Frame Bracket, Rh[12.1996 -] SXV2# |
67491-33050 |
US $19.66 |
||
|
67491G
|
67491G
67491-33050 Garnish, Front Door Lower Frame Bracket, Rh[12.1996 -] MCV2#,SXV2# ｱﾘ(6 ｽﾋﾟ-ｶ) |
67491-33050 |
US $19.66 |
||
|
67492E
|
67492E
67492-33040 Garnish, Front Door Lower Frame Bracket, Lh[12.1996 -] SXV2# |
67492-33040 |
US $17.76 |
||
| replacement | |||||
|
67492E
|
67492E
67492-33050 Garnish, Front Door Lower Frame Bracket, Lh[12.1996 -] SXV2# |
67492-33050 |
US $19.66 |
||
|
67492E
|
67492E
67492-33050 Garnish, Front Door Lower Frame Bracket, Lh[12.1996 -] MCV2#,SXV2# ｱﾘ(6 ｽﾋﾟ-ｶ) |
67492-33050 |
US $19.66 |
||
|
67499B
|
67499B
67499-12030 Retainer, Front Door Lower Frame Bracket Garnish[06.1998 -] MCV2#,SXV2# |
67499-12030 |
US $4.66 |
||
|
67533F
|
67533F
67533-33030 Pad, Front Door Lower Frame Garnish, Rh[12.1996 -] MCV2#,SXV2# |
67533-33030 |
US $4.37 |
||
| replacement | |||||
|
67533F
|
67533F
61824-12120 Pad, Noise Shutter, No.2[12.1996 -] MCV2#,SXV2# |
61824-12120 |
US $10.83 |
||
|
67534F
|
67534F
67533-33030 Pad, Front Door Lower Frame Garnish, Rh[12.1996 -] MCV2#,SXV2# |
67533-33030 |
US $4.37 |
||
| replacement | |||||
|
67534F
|
67534F
61824-12120 Pad, Noise Shutter, No.2[12.1996 -] MCV2#,SXV2# |
61824-12120 |
US $10.83 |
||
|
67831
|
67831
67831-33030 Cover, Front Door Service Hole, Rh[12.1996 -] MCV2#,SXV2# |
67831-33030 |
US $11.94 |
||
| replacement | |||||
|
67831
|
67831
67831-33060
Cover, Front Door Service Hole, Rh
[12.1996 -] MCV2#,SXV2# |
67831-33060 |
— | ||
|
67832
|
67832
67832-33030 Cover, Front Door Service Hole, Lh[12.1996 -] MCV2#,SXV2# |
67832-33030 |
US $11.94 |
||
| replacement | |||||
|
67832
|
67832
67832-33060
Cover, Front Door Service Hole, Lh
[12.1996 -] MCV2#,SXV2# |
67832-33060 |
— | ||
|
67861
|
67861
67861-33020 Weatherstrip, Front Door, Rh[12.1996 -] MCV2#,SXV2# |
67861-33020 |
from US $44.55 |
||
|
67862
|
67862
67862-33020 Weatherstrip, Front Door, Lh[12.1996 -] MCV2#,SXV2# |
67862-33020 |
US $41.53 |
||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[12.1996 -] MCV2#,SXV2# |
67867-12150 |
from US $1.79 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[12.1996 -] MCV2#,SXV2# |
67867-12150 |
from US $1.79 |
||
|
68101
|
68101
68111-33070
Glass Sub-Assy, Front Door, Rh
[04.1997 - 08.1999] MCV2#,SXV2# ＊ＵＶＣＴＴ，厚さ＝５．０，グリーン |
68111-33070 |
— | ||
|
68101
|
68101
68111-33080 Glass Sub-Assy, Front Door, Rh[08.1999 -] MCV2#,SXV2# ＊ＵＶＣＴＴ，厚さ＝５．０，グリーン |
68111-33080 |
US $430.98 |
||
|
68102
|
68102
68112-33070
Glass Sub-Assy, Front Door, Lh
[04.1997 - 08.1999] MCV2#,SXV2# ＊ＵＶＣＴＴ，厚さ＝５．０，グリーン |
68112-33070 |
— | ||
|
68102
|
68102
68112-33080 Glass Sub-Assy, Front Door, Lh[08.1999 -] MCV2#,SXV2# ＊ＵＶＣＴＴ，厚さ＝５．０，グリーン |
68112-33080 |
US $430.98 |
||
|
68141C
|
68141C
68141-33060 Run, Front Door Glass, Rh[04.1997 -] MCV2#,SXV2# |
68141-33060 |
US $91.73 |
||
|
68151C
|
68151C
68151-33050
Run, Front Door Glass, Lh
[04.1997 -] MCV2#,SXV2# |
68151-33050 |
— | ||
|
68610B
|
68610B
68610-33030 Check Assy, Front Door, Rh[12.1996 - 11.1998] MCV2#,SXV2# |
68610-33030 |
US $49.94 |
||
| replacement | |||||
|
68610B
|
68610B
68610-33031 Check Assy, Front Door, Rh[12.1996 - 11.1998] MCV2#,SXV2# |
68610-33031 |
US $49.94 |
||
|
68610B
|
68610B
68610-33031 Check Assy, Front Door, Rh[11.1998 -] MCV2#,SXV2# |
68610-33031 |
US $49.94 |
||
|
68620
|
68620
68620-33030 Check Assy, Front Door, Lh[12.1996 - 11.1998] MCV2#,SXV2# |
68620-33030 |
US $49.94 |
||
| replacement | |||||
|
68620
|
68620
68620-33031
Check Assy, Front Door, Lh
[12.1996 - 11.1998] MCV2#,SXV2# |
68620-33031 |
— | ||
|
68620
|
68620
68620-33031
Check Assy, Front Door, Lh
[11.1998 -] MCV2#,SXV2# |
68620-33031 |
— | ||
|
9010908295
|
9010908295
90109-08295 BOLT |
90109-08295 |
from US $0.78 |
||
|
9015960550
|
9015960550
90159-60550 New Genuine Part |
90159-60550 |
US $1.61 |
||
|
9016840081
|
9016840081
90168-40081
SCREWTAPPING
|
90168-40081 |
— | ||
| replacements | |||||
|
9016840081
|
9016840081
90168-40116 SCREW,TAPPING |
90168-40116 |
from US $0.70 |
||
|
9016840081
|
9016840081
90080-16112 New Genuine Part |
90080-16112 |
US $2.55 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9017906236
|
9017906236
90179-06236 NUT |
90179-06236 |
US $2.15 |
||
|
9018904175
|
9018904175
90189-04175 New Genuine Part |
90189-04175 |
US $2.33 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.07 |
||
|
9033335004
|
9033335004
90333-35004 Plate, Noise Control, No.1 |
90333-35004 |
US $1.25 |
||
|
9054109080
|
9054109080
90541-09080 Cushion(For Luggage Compartment Door Panel) |
90541-09080 |
from US $1.95 |
||
|
9095001527
|
9095001527
90950-01527 PLUG |
90950-01527 |
US $1.97 |
||
