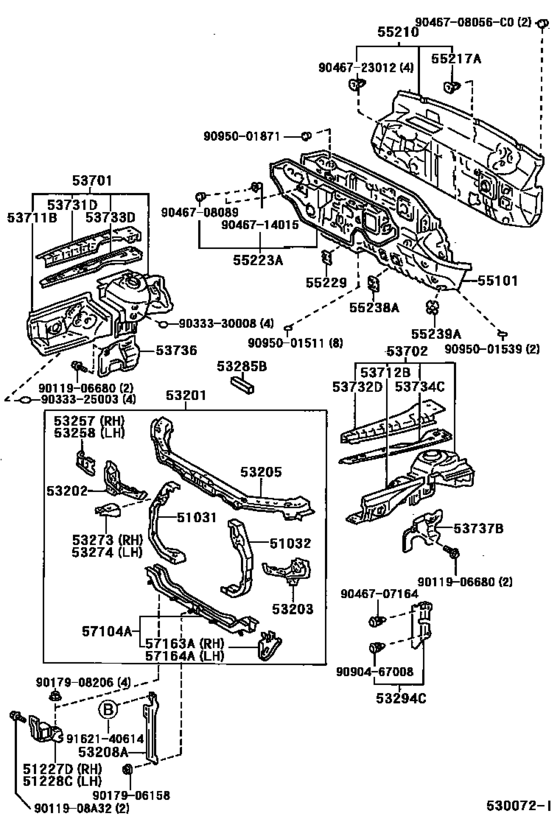

Front Fender Apron & Dash Panel ([12.1996 - ] (9612- )) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51031
|
51031
51031-33030 Gusset Sub-Assy, Front Crossmember, Rh[12.1996 -] MCV2#,SXV2# |
51031-33030 |
US $68.87 |
||
|
51032
|
51032
51032-33030 Gusset Sub-Assy, Front Crossmember, Lh[12.1996 -] MCV2#,SXV2# |
51032-33030 |
from US $68.87 |
||
|
53201
|
53201
53201-33041 Support Sub-Assy, Radiator[08.1998 - 12.1998] MCV2#,SXV2# |
53201-33041 |
US $591.14 |
||
| replacement | |||||
|
53201
|
53201
53201-33042 Support Sub-Assy, Radiator[08.1998 - 12.1998] MCV2#,SXV2# |
53201-33042 |
from US $273.70 |
||
|
53201
|
53201
53201-33042 Support Sub-Assy, Radiator[12.1998 - 08.1999] MCV2#,SXV2# |
53201-33042 |
from US $273.70 |
||
|
53201
|
53201
53201-33110 Support Sub-Assy, Radiator[08.1999 -] MCV2#,SXV2# |
53201-33110 |
from US $588.22 |
||
|
53202
|
53202
53211-33030 Support Sub-Assy, Radiator, Rh[12.1996 - 08.1999] MCV2#,SXV2# |
53211-33030 |
from US $33.40 |
||
|
53202
|
53202
53211-33050 Support Sub-Assy, Radiator, Rh[08.1999 -] MCV2#,SXV2# |
53211-33050 |
from US $34.63 |
||
|
53203
|
53203
53203-33051 Support Sub-Assy, Radiator, Lh[08.1998 - 08.1999] MCV2#,SXV2# |
53203-33051 |
from US $33.40 |
||
|
53203
|
53203
53203-33070 Support Sub-Assy, Radiator, Lh[08.1999 -] MCV2#,SXV2# |
53203-33070 |
from US $34.63 |
||
|
53205
|
53205
53205-33040 Support Sub-Assy, Radiator, Upper[12.1996 - 12.1998] MCV2#,SXV2# |
53205-33040 |
US $215.49 |
||
| replacement | |||||
|
53205
|
53205
53205-33041 Support Sub-Assy, Radiator, Upper[12.1996 - 12.1998] MCV2#,SXV2# |
53205-33041 |
US $216.94 |
||
|
53205
|
53205
53205-33041 Support Sub-Assy, Radiator, Upper[12.1998 - 08.1999] MCV2#,SXV2# |
53205-33041 |
US $216.94 |
||
|
53205
|
53205
53205-33090 Support Sub-Assy, Radiator, Upper[08.1999 -] MCV2#,SXV2# |
53205-33090 |
from US $211.73 |
||
|
53208A
|
53208A
53208-33020 Support Sub-Assy, Hood Lock[08.1999 -] MCV2#,SXV2# |
53208-33020 |
from US $35.38 |
||
|
53208A
|
53208A
53215-33020 Support Sub-Assy, Hood Lock[12.1996 - 08.1999] MCV2#,SXV2# |
53215-33020 |
US $29.12 |
||
|
53257
|
53257
53257-33020 Bracket, Front End Panel Mounting, Rh[12.1996 -] MCV2#,SXV2# |
53257-33020 |
from US $7.72 |
||
|
53258
|
53258
53257-33020 Bracket, Front End Panel Mounting, Rh[12.1996 -] MCV2#,SXV2# |
53257-33020 |
from US $7.72 |
||
|
53273
|
53273
53273-33030 Bracket, Front Bumper Arm Mounting, Rh[12.1996 -] MCV2#,SXV2# |
53273-33030 |
US $11.94 |
||
|
53274
|
53274
53273-33030 Bracket, Front Bumper Arm Mounting, Rh[12.1996 -] MCV2#,SXV2# |
53273-33030 |
US $11.94 |
||
|
53285B
|
53285B
53285-33040 Seal, Radiator Side Air, No.1[08.1999 -] MCV2#,SXV2# |
53285-33040 |
US $4.66 |
||
|
53294C
|
53294C
53294-33021 Deflector, Radiator Side, Lh[04.1997 -] MCV2#,SXV2# |
53294-33021 |
US $30.43 |
||
|
53701
|
53701
53701-33070 Apron Sub-Assy, Front Fender, Rh[12.1996 - 09.1998] MCV2#,SXV2# |
53701-33070 |
US $532.90 |
||
| replacement | |||||
|
53701
|
53701
53701-33074 Apron Sub-Assy, Front Fender, Rh[12.1996 - 09.1998] MCV2#,SXV2# |
53701-33074 |
US $532.90 |
||
|
53701
|
53701
53701-33071 Apron Sub-Assy, Front Fender, Rh[09.1998 - 01.1999] MCV2#,SXV2# |
53701-33071 |
US $532.90 |
||
| replacement | |||||
|
53701
|
53701
53701-33074 Apron Sub-Assy, Front Fender, Rh[09.1998 - 01.1999] MCV2#,SXV2# |
53701-33074 |
US $532.90 |
||
|
53701
|
53701
53701-33072 Apron Sub-Assy, Front Fender, Rh[01.1999 - 03.1999] MCV2#,SXV2# |
53701-33072 |
US $532.90 |
||
| replacement | |||||
|
53701
|
53701
53701-33074 Apron Sub-Assy, Front Fender, Rh[01.1999 - 03.1999] MCV2#,SXV2# |
53701-33074 |
US $532.90 |
||
|
53701
|
53701
53701-33073 Apron Sub-Assy, Front Fender, Rh[03.1999 - 04.2000] MCV2#,SXV2# |
53701-33073 |
US $532.90 |
||
| replacement | |||||
|
53701
|
53701
53701-33074 Apron Sub-Assy, Front Fender, Rh[03.1999 - 04.2000] MCV2#,SXV2# |
53701-33074 |
US $532.90 |
||
|
53701
|
53701
53701-33074 Apron Sub-Assy, Front Fender, Rh[04.2000 -] MCV2#,SXV2# |
53701-33074 |
US $532.90 |
||
|
53702
|
53702
53702-33050 Apron Sub-Assy, Front Fender, Lh[12.1996 - 09.1998] MCV2#,SXV2# |
53702-33050 |
US $532.90 |
||
| replacement | |||||
|
53702
|
53702
53702-33052 Apron Sub-Assy, Front Fender, Lh[12.1996 - 09.1998] MCV2#,SXV2# |
53702-33052 |
US $532.90 |
||
|
53702
|
53702
53702-33051 Apron Sub-Assy, Front Fender, Lh[09.1998 - 04.2000] MCV2#,SXV2# |
53702-33051 |
US $532.90 |
||
| replacement | |||||
|
53702
|
53702
53702-33052 Apron Sub-Assy, Front Fender, Lh[09.1998 - 04.2000] MCV2#,SXV2# |
53702-33052 |
US $532.90 |
||
|
53702
|
53702
53702-33052 Apron Sub-Assy, Front Fender, Lh[04.2000 -] MCV2#,SXV2# |
53702-33052 |
US $532.90 |
||
|
53711B
|
53711B
53711-33040 Apron, Front Fender, Front Rh[12.1996 - 01.1999] MCV2#,SXV2# |
53711-33040 |
US $82.99 |
||
| replacement | |||||
|
53711B
|
53711B
53711-33042 Apron, Front Fender, Front Rh[12.1996 - 01.1999] MCV2#,SXV2# |
53711-33042 |
US $82.99 |
||
|
53711B
|
53711B
53711-33041 Apron, Front Fender, Front Rh[01.1999 - 03.1999] MCV2#,SXV2# |
53711-33041 |
US $82.99 |
||
| replacement | |||||
|
53711B
|
53711B
53711-33042 Apron, Front Fender, Front Rh[01.1999 - 03.1999] MCV2#,SXV2# |
53711-33042 |
US $82.99 |
||
|
53711B
|
53711B
53711-33042 Apron, Front Fender, Front Rh[03.1999 -] MCV2#,SXV2# |
53711-33042 |
US $82.99 |
||
|
53712B
|
53712B
53712-33020 Apron, Front Fender, Front Lh[12.1996 -] MCV2#,SXV2# |
53712-33020 |
US $82.99 |
||
|
53731D
|
53731D
53731-33011 Member, Front Apron To Cowl Side, Upper Rh[12.1996 - 04.2000] MCV2#,SXV2# |
53731-33011 |
US $100.46 |
||
|
53731D
|
53731D
53731-33040 Member, Front Apron To Cowl Side, Upper Rh[04.2000 -] MCV2#,SXV2# |
53731-33040 |
US $100.46 |
||
|
53732D
|
53732D
53732-33011 Member, Front Apron To Cowl Side, Upper Lh[12.1996 - 04.2000] MCV2#,SXV2# |
53732-33011 |
US $100.46 |
||
|
53732D
|
53732D
53732-33030 Member, Front Apron To Cowl Side, Upper Lh[04.2000 -] MCV2#,SXV2# |
53732-33030 |
US $100.46 |
||
|
53733D
|
53733D
53733-33900 Member, Front Apron To Cowl Side, Lower Front Rh[12.1996 -] MCV2#,SXV2# |
53733-33900 |
US $57.95 |
||
|
53734C
|
53734C
53734-33900 Member, Front Apron To Cowl Side, Lower Front Lh[12.1996 -] MCV2#,SXV2# |
53734-33900 |
US $57.95 |
||
|
53736
|
53736
53736-33020 Seal, Front Fender Apron, Rh[12.1996 -] MCV2#,SXV2# |
53736-33020 |
US $40.54 |
||
|
53737B
|
53737B
53737-33010 Seal, Front Fender Apron, Lh[12.1996 -] MCV2#,SXV2# |
53737-33010 |
US $40.54 |
||
|
55101
|
55101
55101-33230 Panel Sub-Assy, Dash[06.1997 - 12.1998] MCV25,SXV25 |
55101-33230 |
US $473.20 |
||
| replacement | |||||
|
55101
|
55101
55101-33231 Panel Sub-Assy, Dash[06.1997 - 12.1998] MCV25,SXV25 |
55101-33231 |
US $473.20 |
||
|
55101
|
55101
55101-33231 Panel Sub-Assy, Dash[12.1998 -] MCV25,SXV25 |
55101-33231 |
US $473.20 |
||
|
55210
|
55210
55210-33080 Insulator Assy, Dash Panel[06.1997 - 01.1999] MCV25,SXV25 |
55210-33080 |
US $393.12 |
||
| replacement | |||||
|
55210
|
55210
55210-33081 Insulator Assy, Dash Panel[06.1997 - 01.1999] MCV25,SXV25 |
55210-33081 |
US $393.12 |
||
|
55210
|
55210
55210-33081 Insulator Assy, Dash Panel[01.1999 -] MCV25,SXV25 |
55210-33081 |
US $393.12 |
||
|
55217A
|
55217A
55217-32010 Retainer, Dash Panel Silencer[12.1996 -] MCV2#,SXV2# |
55217-32010 |
US $1.60 |
||
|
55223A
|
55223A
55223-33060 Insulator, Dash Panel, Outer[12.1996 - 02.1999] MCV2#,SXV2# |
55223-33060 |
US $101.92 |
||
| replacement | |||||
|
55223A
|
55223A
55223-33061
Insulator, Dash Panel, Outer
[12.1996 - 02.1999] MCV2#,SXV2# |
55223-33061 |
— | ||
|
55223A
|
55223A
55223-33061
Insulator, Dash Panel, Outer
[02.1999 -] MCV2#,SXV2# |
55223-33061 |
— | ||
|
55229
|
55229
55229-33010 Plate, Dash Panel Insulator, No.4[12.1996 -] MCV2#,SXV2# |
55229-33010 |
US $10.48 |
||
|
55238A
|
55238A
55238-33010 Plate, Dash Panel Insulator, No.2[12.1996 -] MCV2#,SXV2# |
55238-33010 |
US $11.07 |
||
|
55239A
|
55239A
55239-33010 Plate, Dash Panel Insulator, No.3[12.1996 -] MCV2#,SXV2# |
55239-33010 |
US $8.30 |
||
| replacement | |||||
|
55239A
|
55239A
55239-33020 Plate, Dash Panel Insulator, No.3[12.1996 -] MCV2#,SXV2# |
55239-33020 |
US $4.80 |
||
|
57104A
|
57104A
57104-33020 Member Sub-Assy, Front Cross[12.1996 -] MCV2#,SXV2# |
57104-33020 |
US $164.53 |
||
|
57163A
|
57163A
57163-33020 Reinforcement, Front Crossmember, No.1 Rh[12.1996 -] MCV2#,SXV2# |
57163-33020 |
US $28.54 |
||
|
57164A
|
57164A
57164-33020 Reinforcement, Front Crossmember, No.1 Lh[12.1996 -] MCV2#,SXV2# |
57164-33020 |
US $28.54 |
||
|
9011908A32
|
9011908A32
90119-08A32 New Genuine Part |
90119-08A32 |
US $1.75 |
||
| replacement | |||||
|
9011908A32
|
9011908A32
90119-08516 BOLT |
90119-08516 |
from US $0.80 |
||
|
9011906680
|
9011906680
90119-06680 BOLT WWASHER |
90119-06680 |
US $0.83 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9017908206
|
9017908206
90179-08206 Nut(For Front Suspension Support) |
90179-08206 |
from US $0.84 |
||
|
9033325003
|
9033325003
90333-25003 Plug, Hole(For Hood) |
90333-25003 |
from US $1.25 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.15 |
||
|
9046707164
|
9046707164
90467-07164 Clip(For Front Fender Apron Seal) |
90467-07164 |
from US $1.21 |
||
|
9046708056C0
|
9046708056C0
90467-08056-C0 Clip |
90467-08056-C0 |
from US $0.82 |
||
|
9046708089
|
9046708089
90467-08089 New Genuine Part |
90467-08089 |
US $1.89 |
||
|
9046714015
|
9046714015
90467-14015 New Genuine Part |
90467-14015 |
US $2.62 |
||
|
9046723012
|
9046723012
90467-23012 New Genuine Part |
90467-23012 |
US $2.62 |
||
|
9090467008
|
9090467008
90904-67008 New Genuine Part |
90904-67008 |
US $3.49 |
||
|
9095001511
|
9095001511
90950-01511 New Genuine Part |
90950-01511 |
US $3.40 |
||
|
9095001539
|
9095001539
90950-01539 PLUG HOLE |
90950-01539 |
from US $1.37 |
||
|
9095001871
|
9095001871
90950-01871 PLUG |
90950-01871 |
from US $1.79 |
||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $0.76 |
||
