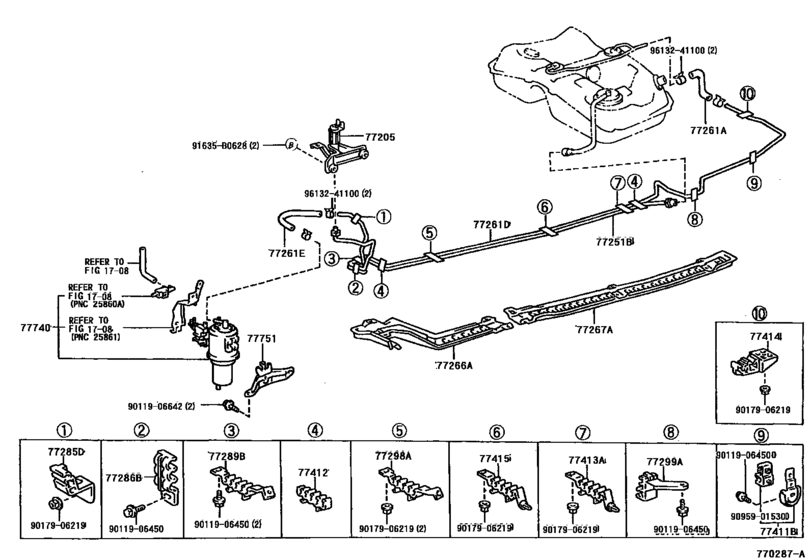

Fuel Tank & Tube ([06.1997 - ] (9706- )MCV25,SXV25) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77205
|
77205
77205-33010 Tube Sub-Assy, Fuel Main[06.1997 -] MCV25,SXV25 |
77205-33010 |
US $52.71 |
||
|
77251B
|
77251B
77251-33090 Tube, Fuel Main[06.1997 -] MCV25,SXV25 |
77251-33090 |
US $51.11 |
||
|
77261A
|
77261A
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[06.1997 -] MCV25,SXV25 ＊Ｈ，Ｌ＝１２０ |
95333-06020 |
— | ||
| replacement | |||||
|
77261A
|
77261A
95337-06020 Hose, Differential Pressure Control[06.1997 -] MCV25,SXV25 ＊Ｈ，Ｌ＝１２０ |
95337-06020 |
from US $10.21 |
||
|
77261D
|
77261D
77261-33070 Tube, Fuel Tank To Canister[06.1997 -] MCV25,SXV25 |
77261-33070 |
US $61.30 |
||
|
77261E
|
77261E
95333-06030
Hose, Fuel
[12.1996 -] MCV2#,SXV2# ＊Ｈ，Ｌ＝２２０ |
95333-06030 |
— | ||
| replacement | |||||
|
77261E
|
77261E
95338-06030 HOSE, FUEL[12.1996 -] MCV2#,SXV2# ＊Ｈ，Ｌ＝２２０ |
95338-06030 |
from US $10.39 |
||
|
77266A
|
77266A
77266-33020
Protector, Fuel Tube, No.1
[12.1996 -] MCV2#,SXV2# |
77266-33020 |
— | ||
|
77267A
|
77267A
77267-33020 Protector, Fuel Tube, No.2[12.1996 -] MCV2#,SXV2# |
77267-33020 |
US $19.04 |
||
|
77285D
|
77285D
77285-33020 Clamp, Fuel Tube, No.1[12.1996 -] MCV2#,SXV2# |
77285-33020 |
US $10.19 |
||
|
77286B
|
77286B
77286-33010 Clamp, Fuel Tube W/grommet, No.2[12.1996 -] MCV2#,SXV2# |
77286-33010 |
US $6.70 |
||
|
77289B
|
77289B
77289-33020 Clamp, Fuel Tube, No.3[12.1996 -] MCV2#,SXV2# |
77289-33020 |
US $10.05 |
||
|
77298A
|
77298A
77298-33020 Clamp, Fuel Tube, No.4[12.1996 -] MCV2#,SXV2# |
77298-33020 |
US $9.46 |
||
|
77299A
|
77299A
77299-33020 Clamp, Fuel Tube, No.5[12.1996 -] MCV2#,SXV2# |
77299-33020 |
US $12.23 |
||
|
77411B
|
77411B
77411-33020 Support, Fuel Tube Grommet, No.1[12.1996 -] MCV2#,SXV2# |
77411-33020 |
US $13.40 |
||
|
77412
|
77412
77412-33020 Support, Fuel Tube Grommet, No.2[12.1996 -] MCV2#,SXV2# |
77412-33020 |
US $8.11 |
||
|
77413A
|
77413A
77413-33020 Support, Fuel Tube Grommet, No.3[12.1996 -] MCV2#,SXV2# |
77413-33020 |
US $9.46 |
||
|
77414
|
77414
77414-33020 Support, Fuel Tube Grommet, No.4[12.1996 -] MCV2#,SXV2# |
77414-33020 |
US $10.05 |
||
|
77415
|
77415
77415-33020 Support, Fuel Tube Grommet, No.5[12.1996 -] MCV2#,SXV2# |
77415-33020 |
US $9.46 |
||
|
77740
|
77740
77740-33100 Canister Assy, Charcoal[12.1996 -] MCV2#,SXV2# |
77740-33100 |
US $125.22 |
||
|
77751
|
77751
77751-33050 Bracket, Charcoal Canister Base[12.1996 - 11.1998] MCV2#,SXV2# |
77751-33050 |
US $11.94 |
||
| replacement | |||||
|
77751
|
77751
77751-33051 Bracket, Charcoal Canister Base[12.1996 - 11.1998] MCV2#,SXV2# |
77751-33051 |
US $11.94 |
||
|
77751
|
77751
77751-33051 Bracket, Charcoal Canister Base[11.1998 -] MCV2#,SXV2# |
77751-33051 |
US $11.94 |
||
|
91635B0628
|
91635B0628
91635-B0628 New Genuine Part |
91635-B0628 |
US $1.46 |
||
| replacement | |||||
|
91635B0628
|
91635B0628
91631-B0625 BOLT W-WASHER |
91631-B0625 |
from US $0.66 |
||
|
9011906450
|
9011906450
90119-06450
New Genuine Part
|
90119-06450 |
— | ||
| replacement | |||||
|
9011906450
|
9011906450
90119-06442 BOLT WWASHER |
90119-06442 |
from US $0.92 |
||
|
9011906642
|
9011906642
90119-06642
New Genuine Part
|
90119-06642 |
— | ||
| replacement | |||||
|
9011906642
|
9011906642
90119-06512 BOLT WWASHER |
90119-06512 |
US $2.87 |
||
|
9017906219
|
9017906219
90179-06219 Nut |
90179-06219 |
US $1.25 |
||
|
9095901530
|
9095901530
90959-01530 Grommet, Fuel Tube |
90959-01530 |
US $8.30 |
||
|
9613241100
|
9613241100
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
|
96132-41100 |
— | ||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
