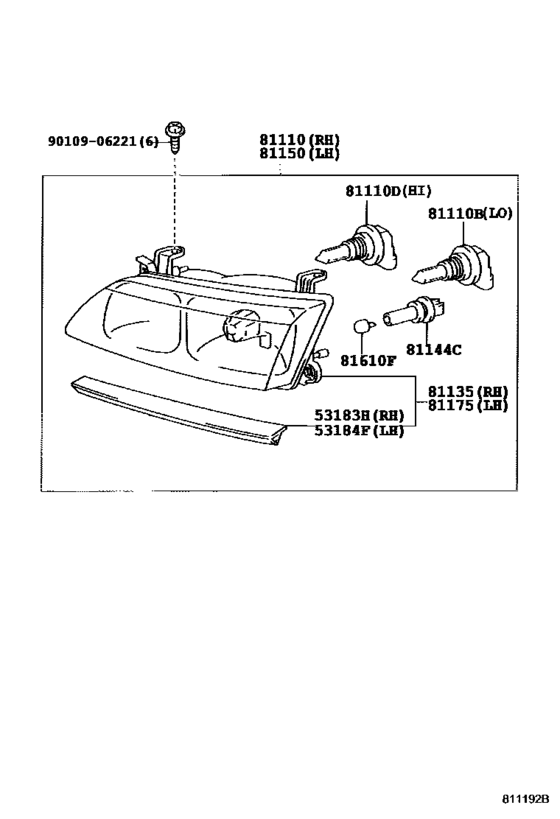

Headlamp ([08.1999 - ] (9908- )) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53183H
|
53183H
53183-33060 Seal, Headlamp Cover, Rh[12.1996 - 08.1999] MCV2#,SXV2# |
53183-33060 |
US $19.80 |
||
|
53183H
|
53183H
53183-33070 Seal, Headlamp Cover, Rh[08.1999 -] MCV2#,SXV2# |
53183-33070 |
US $19.80 |
||
|
53184F
|
53184F
53184-33060 Seal, Headlamp Cover, Lh[12.1996 - 08.1999] MCV2#,SXV2# |
53184-33060 |
US $19.80 |
||
|
53184F
|
53184F
53184-33070 Seal, Headlamp Cover, Lh[08.1999 -] MCV2#,SXV2# |
53184-33070 |
US $19.80 |
||
|
81110
|
81110
81110-33270 Headlamp Assy, Rh[12.1996 - 08.1999] MCV2#,SXV2# |
81110-33270 |
US $500.86 |
||
|
81110
|
81110
81110-33310 Headlamp Assy, Rh[08.1999 -] MCV2#,SXV2# |
81110-33310 |
US $547.46 |
||
|
81110B
|
81110B
90080-81040
Bulb(For Headlamp, No.1)
[08.1999 -] MCV2#,SXV2# １２Ｖ ５１Ｗ |
90080-81040 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13047 Bulb (HB4)[08.1999 -] MCV2#,SXV2# １２Ｖ ５１Ｗ |
90981-13047 |
from US $15.29 |
||
|
81110B
|
81110B
90981-22004
Bulb(For Headlamp, No.1)
[12.1996 - 08.1999] MCV2#,SXV2# １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-22004 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [12.1996 - 08.1999] MCV2#,SXV2# １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ |
90981-13058 |
from US $33.60 |
||
|
81110D
|
81110D
90080-81041
Bulb(For Headlamp, No.1)
[08.1999 -] MCV2#,SXV2# １２Ｖ ６５Ｗ |
90080-81041 |
— | ||
| replacement | |||||
|
81110D
|
81110D
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[08.1999 -] MCV2#,SXV2# １２Ｖ ６５Ｗ |
90981-13046 |
from US $16.34 |
||
|
81135
|
81135
81130-33270 Unit Assy, Headlamp, Rh[12.1996 - 08.1999] MCV2#,SXV2# |
81130-33270 |
US $393.12 |
||
|
81135
|
81135
81130-33310 Unit Assy, Headlamp, Rh[08.1999 - 09.2001] MCV2#,SXV2# |
81130-33310 |
US $457.18 |
||
|
81144C
|
81144C
90075-60004 Cover, Headlamp Socket[12.1996 -] MCV2#,SXV2# |
90075-60004 |
from US $6.40 |
||
|
81150
|
81150
81150-33270 Headlamp Assy, Lh[12.1996 - 08.1999] MCV2#,SXV2# |
81150-33270 |
US $500.86 |
||
|
81150
|
81150
81150-33300 Headlamp Assy, Lh[08.1999 -] MCV2#,SXV2# |
81150-33300 |
US $547.46 |
||
|
81175
|
81175
81170-33270 Unit Assy, Headlamp, Lh[12.1996 - 08.1999] MCV2#,SXV2# |
81170-33270 |
US $391.84 |
||
|
81175
|
81175
81170-33300 Unit Assy, Headlamp, Lh[08.1999 - 09.2001] MCV2#,SXV2# |
81170-33300 |
US $457.18 |
||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[12.1996 -] MCV2#,SXV2# １２Ｖ ５Ｗ |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[12.1996 -] MCV2#,SXV2# １２Ｖ ５Ｗ |
90080-81053 |
US $1.01 |
||
|
9010906221
|
9010906221
90109-06221
BOLTFOLDING SEAT
|
90109-06221 |
— | ||
| replacement | |||||
|
9010906221
|
9010906221
90109-06293 BOLTFOLDING SEAT |
90109-06293 |
from US $0.68 |
||
