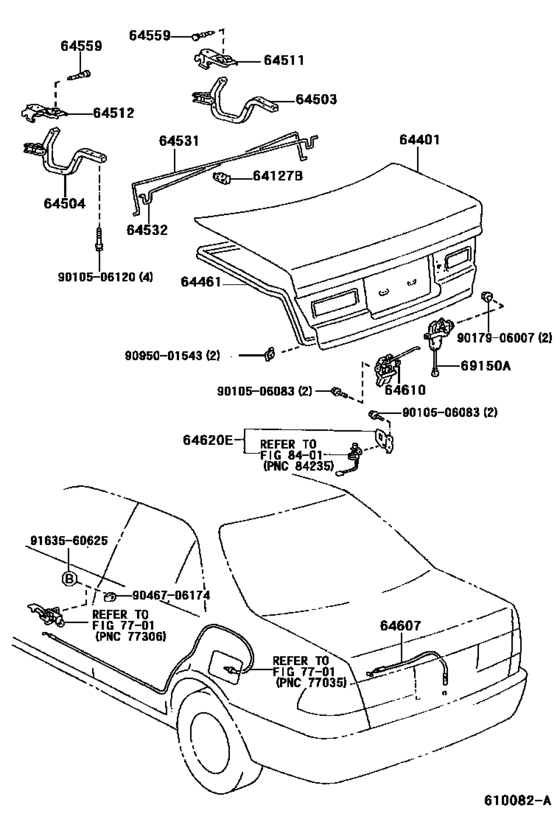

Luggage Compartment Door & Lock ([12.1996 - ] (9612- )SED) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64127B
|
64127B
64127-33041 Support, Luggage Compartment Door Torsion Bar[12.1996 -] MCV21,SXV2#..SED |
64127-33041 |
from US $5.92 |
||
|
64401
|
64401
64401-33180 Panel Sub-Assy, Luggage Compartment Door[12.1996 - 08.1999] MCV21,SXV2#..SED |
64401-33180 |
US $697.42 |
||
|
64401
|
64401
64401-33230 Panel Sub-Assy, Luggage Compartment Door[08.1999 -] MCV21,SXV2#..SED |
64401-33230 |
US $697.42 |
||
|
64461
|
64461
64461-33030 Weatherstrip, Luggage Compartment Door[12.1996 -] MCV21,SXV2#..SED |
64461-33030 |
US $89.11 |
||
|
64503
|
64503
64503-33030 Arm Sub-Assy, Luggage Compartment Door Hinge, Rh[12.1996 - 08.1999] MCV21,SXV2#..SED |
64503-33030 |
US $30.43 |
||
|
64503
|
64503
64503-33060 Arm Sub-Assy, Luggage Compartment Door Hinge, Rh[08.1999 -] MCV21,SXV2#..SED |
64503-33060 |
US $32.18 |
||
|
64504
|
64504
64503-33030 Arm Sub-Assy, Luggage Compartment Door Hinge, Rh[12.1996 - 08.1999] MCV21,SXV2#..SED |
64503-33030 |
US $30.43 |
||
|
64504
|
64504
64503-33060 Arm Sub-Assy, Luggage Compartment Door Hinge, Rh[08.1999 -] MCV21,SXV2#..SED |
64503-33060 |
US $32.18 |
||
|
64511
|
64511
64511-33030 Support, Luggage Compartment Door Hinge, Rh[12.1996 -] MCV21,SXV2#..SED |
64511-33030 |
US $30.43 |
||
|
64512
|
64512
64512-33030 Support, Luggage Compartment Door Hinge, Lh[12.1996 -] MCV21,SXV2#..SED |
64512-33030 |
US $30.43 |
||
|
64531
|
64531
64531-33040 Bar, Luggage Door Hinge Torsion, Rh[12.1996 - 08.1999] MCV21,SXV2#..SED |
64531-33040 |
US $41.35 |
||
|
64531
|
64531
64531-33100 Bar, Luggage Door Hinge Torsion, Rh[08.1999 - 11.1999] MCV21,SXV2#..SED |
64531-33100 |
US $41.35 |
||
|
64531
|
64531
64531-33110 Bar, Luggage Door Hinge Torsion, Rh[11.1999 - 10.2000] MCV21,SXV2#..SED |
64531-33110 |
US $42.22 |
||
|
64531
|
64531
64531-33130 Bar, Luggage Door Hinge Torsion, Rh[02.2001 -] MCV21,SXV2#..SED |
64531-33130 |
US $42.22 |
||
|
64531
|
64531
64531-33160 Bar, Luggage Door Hinge Torsion, Rh[10.2000 - 02.2001] MCV21,SXV2#..SED |
64531-33160 |
US $42.22 |
||
| replacement | |||||
|
64531
|
64531
64531-33130 Bar, Luggage Door Hinge Torsion, Rh[10.2000 - 02.2001] MCV21,SXV2#..SED |
64531-33130 |
US $42.22 |
||
|
64532
|
64532
64532-33040 Bar, Luggage Door Hinge Torsion, Lh[12.1996 - 08.1999] MCV21,SXV2#..SED |
64532-33040 |
US $41.35 |
||
|
64532
|
64532
64532-33100 Bar, Luggage Door Hinge Torsion, Lh[08.1999 - 11.1999] MCV21,SXV2#..SED |
64532-33100 |
US $41.35 |
||
|
64532
|
64532
64532-33110 Bar, Luggage Door Hinge Torsion, Lh[11.1999 - 10.2000] MCV21,SXV2#..SED |
64532-33110 |
US $41.93 |
||
|
64532
|
64532
64532-33130 Bar, Luggage Door Hinge Torsion, Lh[02.2001 -] MCV21,SXV2#..SED |
64532-33130 |
US $41.93 |
||
|
64532
|
64532
64532-33160 Bar, Luggage Door Hinge Torsion, Lh[10.2000 - 02.2001] MCV21,SXV2#..SED |
64532-33160 |
US $41.93 |
||
| replacement | |||||
|
64532
|
64532
64532-33130 Bar, Luggage Door Hinge Torsion, Lh[10.2000 - 02.2001] MCV21,SXV2#..SED |
64532-33130 |
US $41.93 |
||
|
64559
|
64559
64559-32020 Pin, Luggage Door Hinge[12.1996 -] MCV21,SXV2#..SED |
64559-32020 |
US $4.08 |
||
|
64607
|
64607
64607-33060 Cable Sub-Assy, Luggage Door Lock Control[12.1996 -] MCV21,SXV2#..SED |
64607-33060 |
US $21.69 |
||
|
64610
|
64610
64610-33030 Lock Assy, Luggage Compartment Door[12.1996 - 08.1999] MCV21,SXV2#..SED |
64610-33030 |
US $37.56 |
||
|
64610
|
64610
64610-33040 Lock Assy, Luggage Compartment Door[08.1999 -] MCV21,SXV2#..SED |
64610-33040 |
US $37.51 |
||
|
64620E
|
64620E
64620-33010 Striker Assy, Luggage Compartment Door[12.1996 -] MCV21,SXV2#..SED |
64620-33010 |
US $22.71 |
||
| replacements | |||||
|
64620E
|
64620E
64621-12070 Striker Assy, Luggage Compartment Door[12.1996 -] MCV21,SXV2#..SED |
64621-12070 |
from US $10.24 |
||
|
64620E
|
64620E
84231-20380 Switch Assy, Courtesy Lamp(For Back Door)[12.1996 -] MCV21,SXV2#..SED |
84231-20380 |
US $14.41 |
||
|
64620E
|
64620E
93315-15010 New Genuine Part[12.1996 -] MCV21,SXV2#..SED |
93315-15010 |
US $1.25 |
||
|
69150A
|
69150A
69150-33010 Actuator Assy, Back Door Lock[12.1996 -] MCV21,SXV2#..SED |
69150-33010 |
US $131.04 |
||
| replacement | |||||
|
69150A
|
69150A
69150-43010 Actuator Assy, Back Door Lock[12.1996 -] MCV21,SXV2#..SED |
69150-43010 |
US $129.58 |
||
|
9010506083
|
9010506083
90105-06083 New Genuine Part |
90105-06083 |
US $1.60 |
||
| replacement | |||||
|
9010506083
|
9010506083
90105-06168 BOLT WASHER BASED |
90105-06168 |
from US $0.72 |
||
|
9010506120
|
9010506120
90105-06120 BOLT WASHER BASED |
90105-06120 |
from US $0.98 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.84 |
||
|
9046706174
|
9046706174
90467-06174 New Genuine Part |
90467-06174 |
US $4.72 |
||
|
9095001543
|
9095001543
90950-01543 PLUG |
90950-01543 |
US $2.62 |
||
|
9163560625
|
9163560625
91635-60625
Screw(For Steering Column Tube)
|
91635-60625 |
— | ||
| replacement | |||||
|
9163560625
|
9163560625
91631-60622 Screw |
91631-60622 |
US $1.25 |
||
