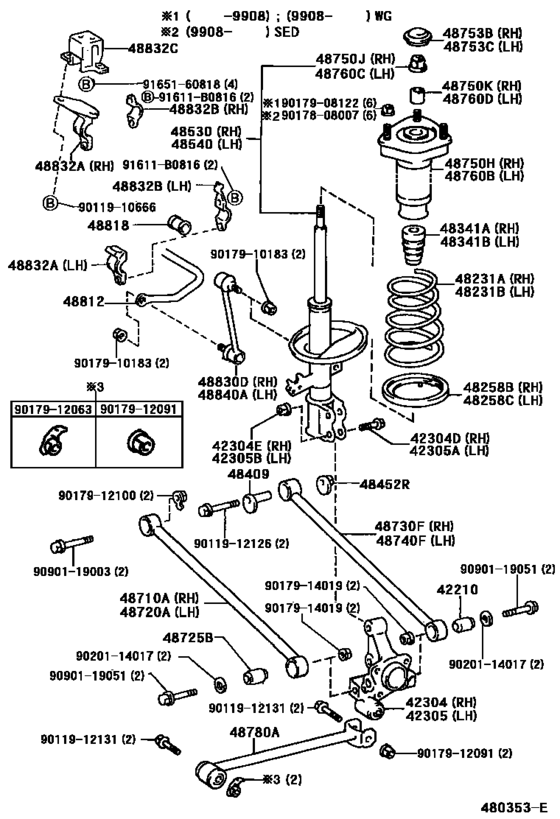

Rear Spring & Shock Absorber ([06.1997 - ] (9706- )MCV25,SXV25) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42210
|
42210
42210-14010 Bush Assy, Lower Ball[06.1997 -] MCV25,SXV25 |
42210-14010 |
from US $39.64 |
||
|
42304
|
42304
42304-33020 Carrier Sub-Assy, Rear Axle, Rh[06.1997 -] MCV25,SXV25 |
42304-33020 |
US $182 |
||
|
42304D
|
42304D
90105-15001 Bolt (For Rear Axle Carrier)[12.1996 - 07.2001] MCV2#,SXV2# |
90105-15001 |
from US $3.51 |
||
|
42304D
|
42304D
90901-05001 Bolt (For Rear Axle Carrier Rh)[07.2001 - 09.2001] MCV2#,SXV2# |
90901-05001 |
from US $6.03 |
||
|
42304E
|
42304E
90178-15001 Nut (For Rear Axle Carrier Rh)[07.2001 - 09.2001] MCV2#,SXV2# |
90178-15001 |
US $3.67 |
||
|
42304E
|
42304E
90179-15001 Nut (For Rear Axle Carrier)[12.1996 - 07.2001] MCV2#,SXV2# |
90179-15001 |
from US $2.93 |
||
|
42305
|
42305
42305-33020 Carrier Sub-Assy, Rear Axle, Lh[06.1997 -] MCV25,SXV25 |
42305-33020 |
US $182 |
||
|
42305A
|
42305A
90105-15001 Bolt (For Rear Axle Carrier)[12.1996 - 07.2001] MCV2#,SXV2# |
90105-15001 |
from US $3.51 |
||
|
42305A
|
42305A
90901-05001 Bolt (For Rear Axle Carrier Rh)[07.2001 - 09.2001] MCV2#,SXV2# |
90901-05001 |
from US $6.03 |
||
|
42305B
|
42305B
90178-15001 Nut (For Rear Axle Carrier Rh)[07.2001 - 09.2001] MCV2#,SXV2# |
90178-15001 |
US $3.67 |
||
|
42305B
|
42305B
90179-15001 Nut (For Rear Axle Carrier)[12.1996 - 07.2001] MCV2#,SXV2# |
90179-15001 |
from US $2.93 |
||
|
48231A
|
48231A
48231-33370 Spring, Coil, Rear Rh[08.1998 - 08.1999] SXV25..SED |
48231-33370 |
US $123.76 |
||
|
48231A
|
48231A
48231-33450 Spring, Coil, Rear Rh[08.1999 -] SXV25..SED ﾌﾞﾙ- & ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
48231-33450 |
from US $96.21 |
||
|
48231B
|
48231B
48231-33370 Spring, Coil, Rear Rh[08.1998 - 08.1999] SXV25..SED |
48231-33370 |
US $123.76 |
||
|
48231B
|
48231B
48231-33450 Spring, Coil, Rear Rh[08.1999 -] SXV25..SED ﾌﾞﾙ- & ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
48231-33450 |
from US $96.21 |
||
|
48258B
|
48258B
48258-32020 Insulator, Rear Coil Spring, Lower Rh[12.1996 -] MCV2#,SXV2# |
48258-32020 |
from US $12.44 |
||
|
48258C
|
48258C
48258-32020 Insulator, Rear Coil Spring, Lower Rh[12.1996 -] MCV2#,SXV2# |
48258-32020 |
from US $12.44 |
||
|
48341A
|
48341A
48341-32071 Bumper, Rear Spring, No.1 Rh[06.1997 -] MCV25,SXV25 |
48341-32071 |
US $13.98 |
||
|
48341B
|
48341B
48341-32071 Bumper, Rear Spring, No.1 Rh[06.1997 -] MCV25,SXV25 |
48341-32071 |
US $13.98 |
||
|
48409
|
48409
48409-32030 Cam Sub-Assy, Rear Suspension Toe Adjust[06.1997 -] MCV25,SXV25 |
48409-32030 |
from US $8.72 |
||
|
48452R
|
48452R
48452-32030 Plate, Rear Suspension Toe Adjust, No.2[06.1997 -] MCV25,SXV25 |
48452-32030 |
from US $6.47 |
||
|
48530
|
48530
48530-39495 Absorber Assy, Shock, Rear Rh[08.1998 -] SXV25..SED マーク ４８５３０−３３２２０ |
48530-39495 |
US $346.53 |
||
|
48540
|
48540
48540-39325 Absorber Assy, Shock, Rear Lh[08.1998 -] SXV25..SED マーク ４８５４０−３３２２０ |
48540-39325 |
from US $267.21 |
||
|
48710A
|
48710A
48710-32080 Arm Assy, Rear Suspension, No.1 Rh[06.1997 -] MCV25,SXV25 |
48710-32080 |
from US $82.12 |
||
|
48720A
|
48720A
48710-32080 Arm Assy, Rear Suspension, No.1 Rh[06.1997 -] MCV25,SXV25 |
48710-32080 |
from US $82.12 |
||
|
48725B
|
48725B
42210-14010 Bush Assy, Lower Ball[06.1997 -] MCV25,SXV25 |
42210-14010 |
from US $39.64 |
||
|
48730F
|
48730F
48730-32090 Arm Assy, Rear Suspension, No.2 Rh[06.1997 -] MCV25,SXV25 |
48730-32090 |
from US $92.60 |
||
|
48740F
|
48740F
48730-32090 Arm Assy, Rear Suspension, No.2 Rh[06.1997 -] MCV25,SXV25 |
48730-32090 |
from US $92.60 |
||
|
48750H
|
48750H
48750-33020
Support Assy, Rear Suspension, Rh
[08.1998 -] SXV2#..SED; MCV21..SED;MCV25,SXV25..WG; MCV21..WG ｱﾘ(TEMS) |
48750-33020 |
— | ||
|
48750J
|
48750J
90177-14001 Nut(For Rear Support To Rear Shock Absorber Rh)[12.1996 -] MCV2#,SXV2# |
90177-14001 |
from US $1.46 |
||
|
48750K
|
48750K
90387-15027 Collar(For Rear Support To Rear Shock Absorber)[12.1996 -] MCV2#,SXV2# |
90387-15027 |
from US $3.43 |
||
|
48753B
|
48753B
48753-33010 Cover, Rear Suspension Supoport, No.1 Rh[12.1996 -] MCV2#,SXV2# |
48753-33010 |
from US $2.48 |
||
|
48753C
|
48753C
48753-33010 Cover, Rear Suspension Supoport, No.1 Rh[12.1996 -] MCV2#,SXV2# |
48753-33010 |
from US $2.48 |
||
|
48760B
|
48760B
48760-33020
Support Assy Rear Suspension, Lh
[08.1998 -] SXV2#..SED; MCV21..SED;MCV25,SXV25..WG; MCV21..WG ｱﾘ(TEMS) |
48760-33020 |
— | ||
|
48760C
|
48760C
90177-14001 Nut(For Rear Support To Rear Shock Absorber Rh)[12.1996 -] MCV2#,SXV2# |
90177-14001 |
from US $1.46 |
||
|
48760D
|
48760D
90387-15027 Collar(For Rear Support To Rear Shock Absorber)[12.1996 -] MCV2#,SXV2# |
90387-15027 |
from US $3.43 |
||
|
48780A
|
48780A
48780-33020 Rod Assy, Strut, Rear[03.1998 -] MCV25,SXV25 |
48780-33020 |
from US $90.27 |
||
|
48812
|
48812
48812-33160 Bar, Stabilizer, Rear[08.1998 -] SXV25..SED |
48812-33160 |
US $122.30 |
||
|
48818
|
48818
48818-32090 Bush, Stabilizer, Rear[08.1998 -] SXV25..SED |
48818-32090 |
from US $7.57 |
||
|
48830D
|
48830D
48830-32040 Link Assy, Rear Stabilizer[06.1997 -] MCV25,SXV25 |
48830-32040 |
US $76.56 |
||
|
48832A
|
48832A
48832-32050 Bracket, Rear Stabilizer Bar, Lh[06.1997 -] MCV25,SXV25 左側 |
48832-32050 |
US $10.73 |
||
|
48832A
|
48832A
48832-32070 Bracket, Rear Stabilizer Bar, No.1[06.1997 -] MCV25,SXV25 右側 |
48832-32070 |
US $13.98 |
||
|
48832B
|
48832B
48832-32080 Bracket, Rear Stabilizer Bar, Rh[06.1997 -] MCV25,SXV25 右側 |
48832-32080 |
US $4.82 |
||
|
48832B
|
48832B
48832-33030 Bracket, Rear Stabilizer Bar, No.2[06.1997 -] MCV25,SXV25 左側 |
48832-33030 |
US $3.93 |
||
|
48832C
|
48832C
48832-32090 Bracket, Rear Stabilizer Bar, No.3[06.1997 -] MCV25,SXV25 |
48832-32090 |
US $12.75 |
||
|
48840A
|
48840A
48830-32040 Link Assy, Rear Stabilizer[06.1997 -] MCV25,SXV25 |
48830-32040 |
US $76.56 |
||
|
91611B0816
|
91611B0816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9011910666
|
9011910666
90119-10666 New Genuine Part |
90119-10666 |
US $1.60 |
||
|
9011912126
|
9011912126
90119-12126 Bolt(For Rear Suspension Arm) |
90119-12126 |
from US $3.26 |
||
|
9011912131
|
9011912131
90119-12131 Bolt(For Strut Rod) |
90119-12131 |
from US $3.18 |
||
|
9017808007
|
9017808007
90178-08007 Nut(For Rear Suspension Support) |
90178-08007 |
from US $0.92 |
||
|
9017908122
|
9017908122
90179-08122 Nut(For Rear Suspension Support) |
90179-08122 |
US $7.88 |
||
|
9017910183
|
9017910183
90179-10183 Nut(For Front Stabilizer Link) |
90179-10183 |
from US $0.84 |
||
|
9017912063
|
9017912063
90179-12063 Nut(For Rear Suspension Arm) |
90179-12063 |
from US $2.38 |
||
|
9017912091
|
9017912091
90179-12091 Nut(For Front Suspension Lower Arm) |
90179-12091 |
from US $1.11 |
||
|
9017912100
|
9017912100
90179-12100 Nut(For Rear Suspension Arm) |
90179-12100 |
from US $1.31 |
||
|
9017914019
|
9017914019
90179-14019 Nut |
90179-14019 |
from US $1.40 |
||
|
9020114017
|
9020114017
90201-14017 Washer(For Rear Suspension Arm) |
90201-14017 |
from US $2.94 |
||
|
9090119003
|
9090119003
90901-19003 Bolt(For Rear Suspension Arm) |
90901-19003 |
from US $7.16 |
||
|
9090119051
|
9090119051
90901-19051 New Genuine Part |
90901-19051 |
US $9.32 |
||
|
9165160818
|
9165160818
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.11 |
