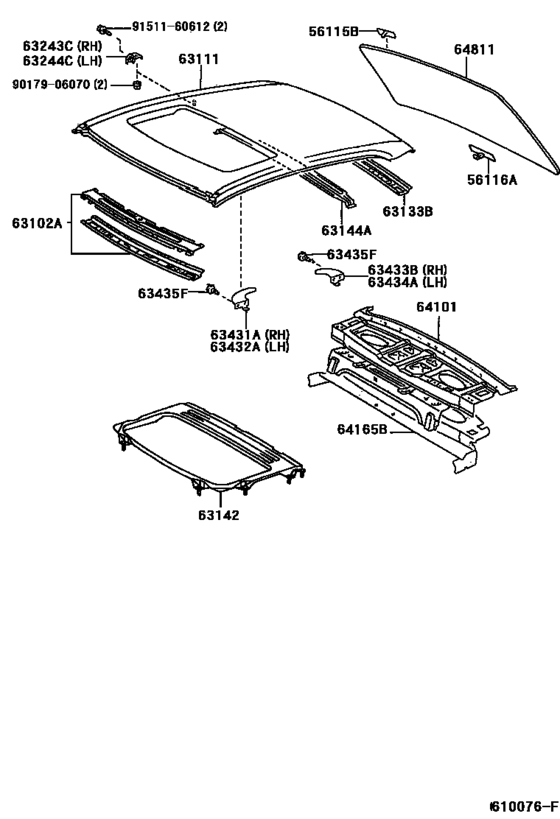

Roof Panel & Back Window Glass ([12.1996 - ] ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ) (9612- )SED) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56115B
|
56115B
56116-35040 Stopper, Back Window Glass, No.1[12.1996 -] MCV21,SXV2#..SED |
56116-35040 |
US $3.76 |
||
|
56116A
|
56116A
56116-35040 Stopper, Back Window Glass, No.1[12.1996 -] MCV21,SXV2#..SED |
56116-35040 |
US $3.76 |
||
|
63102A
|
63102A
63102-33061 Panel Sub-Assy, Windshield Header[08.1998 -] MCV21,SXV2#..SED |
63102-33061 |
US $96.10 |
||
|
63102A
|
63102A
63102-33071 Panel Sub-Assy, Windshield Header[08.1998 -] MCV21,SXV2#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63102-33071 |
US $96.10 |
||
|
63111
|
63111
63111-33110 Panel, Roof[12.1996 -] MCV21,SXV2#..SED |
63111-33110 |
US $671.22 |
||
|
63111
|
63111
63111-33120 Panel, Roof[12.1996 -] MCV21,SXV2#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63111-33120 |
US $671.22 |
||
|
63133B
|
63133B
63133-AA030 Frame, Back Window[08.1998 -] MCV21,SXV2#..SED |
63133-AA030 |
US $56.64 |
||
|
63142
|
63142
63142-33020 Reinforcement, Roof Panel, No.2[12.1996 -] MCV21,SXV2#..SED |
63142-33020 |
US $158.70 |
||
|
63144A
|
63144A
63144-AA020 Reinforcement, Roof Panel, No.4[12.1996 -] MCV21,SXV2#..SED |
63144-AA020 |
US $54.60 |
||
|
63144A
|
63144A
63144-AA030 Reinforcement, Roof Panel, No.4[12.1996 -] MCV21,SXV2#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63144-AA030 |
US $56.64 |
||
|
63243C
|
63243C
63243-33050 Bracket, Sliding Roof Housing Center Mounting, Rh[12.1996 -] MCV21,SXV2#..SED |
63243-33050 |
US $11.94 |
||
|
63244C
|
63244C
63243-33050 Bracket, Sliding Roof Housing Center Mounting, Rh[12.1996 -] MCV21,SXV2#..SED |
63243-33050 |
US $11.94 |
||
|
63431A
|
63431A
63431-33010 Bracket, Roof Inner Rack, No.1 Rh[12.1996 -] MCV21,SXV2#..SED |
63431-33010 |
US $7.43 |
||
|
63431A
|
63431A
63431-33020 Bracket, Roof Inner Rack, No.1 Rh[12.1996 -] MCV21,SXV2#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63431-33020 |
US $8.59 |
||
|
63432A
|
63432A
63432-33010 Bracket, Roof Inner Rack, No.1 Lh[12.1996 -] MCV21,SXV2#..SED |
63432-33010 |
US $7.43 |
||
|
63432A
|
63432A
63432-33020 Bracket, Roof Inner Rack, No.1 Lh[12.1996 -] MCV21,SXV2#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
63432-33020 |
US $8.59 |
||
|
63433B
|
63433B
63433-33010 Bracket, Roof Inner Rack, No.2 Rh[12.1996 -] MCV21,SXV2#..SED |
63433-33010 |
US $7.28 |
||
|
63434A
|
63434A
63434-33010 Bracket, Roof Inner Rack, No.2 Lh[12.1996 -] MCV21,SXV2#..SED |
63434-33010 |
US $7.28 |
||
|
63435F
|
63435F
63435-12030 Seal, Roof Carrier, No.1 Rh[03.1997 -] MCV21,SXV2#..SED |
63435-12030 |
US $1.89 |
||
|
64101
|
64101
64101-33140 Panel Sub-Assy, Upper Back[12.1996 -] MCV21,SXV2#..SED |
64101-33140 |
US $375.65 |
||
|
64101
|
64101
64101-33230 Panel Sub-Assy, Upper Back[12.1996 -] MCV21,SXV2#..SED ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
64101-33230 |
US $375.65 |
||
|
64101
|
64101
64101-33240 Panel Sub-Assy, Upper Back[12.1996 -] MCV21,SXV2#..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
64101-33240 |
US $375.65 |
||
|
64165B
|
64165B
64165-33040 Cover, Upper Back Panel Hole, No.1[12.1996 -] MCV21,SXV2#..SED |
64165-33040 |
US $110.66 |
||
|
64811
|
64811
64811-33250 Glass, Back Window[12.1996 -] MCV21,SXV2#..SED ＊ＵＶＣＥＨＴＴ，厚さ＝３．５，グリーン |
64811-33250 |
US $1,230.32 |
||
|
64811
|
64811
64811-33260 Glass, Back Window[12.1996 -] MCV21,SXV2#..SED ＊ＵＶＣＥＨＴＴ，厚さ＝３．５，グリーン,ｱﾘ(6 ｽﾋﾟ-ｶ) |
64811-33260 |
US $1,255.07 |
||
|
64811
|
64811
64811-33900 Glass, Back Window[12.1996 -] MCV21,SXV2#..SED ＊ＵＶＣＥＨＴＴ，厚さ＝３．５，グリーン,ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
64811-33900 |
US $1,244.88 |
||
|
64811
|
64811
64811-33904 Glass, Back Window[12.1996 -] MCV21,SXV2#..SED ＊ＵＶＣＥＨＴＴ，厚さ＝３．５，グリーン,ｱﾘ(ﾘﾔﾜｲﾊﾟ & 6 ｽﾋﾟｰｶ) |
64811-33904 |
US $1,304.58 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.97 |
||
