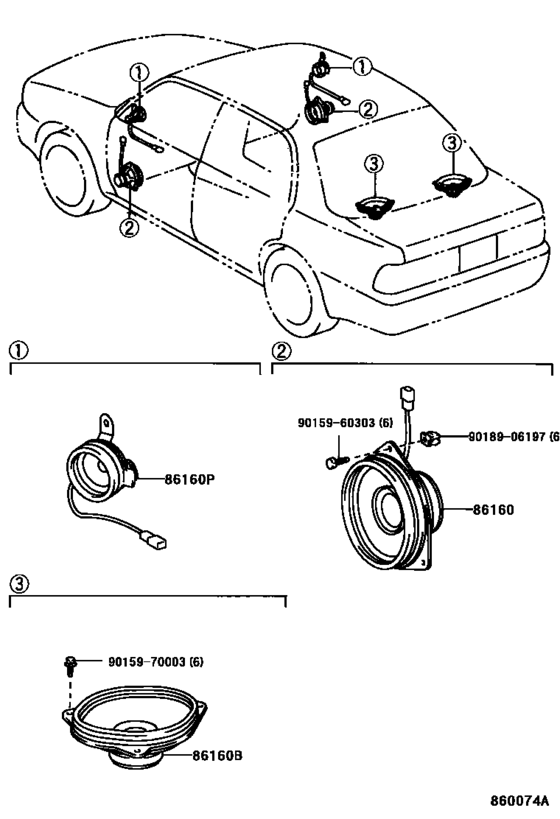

Speaker ([12.1996 - ] (9612- )SED) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86160
|
86160
86160-33330 Speaker Assy, Front No.1[12.1996 -] MCV2#,SXV2# |
86160-33330 |
US $147.06 |
||
|
86160B
|
86160B
86160-33400 Speaker Assy, Rear[12.1996 -] MCV21,SXV2#..SED |
86160-33400 |
US $193.65 |
||
|
86160P
|
86160P
86160-33340 Speaker Assy, Front No.2[12.1996 -] MCV2#,SXV2# 右側 |
86160-33340 |
US $99.01 |
||
|
86160P
|
86160P
86160-33390 Speaker Assy, Front No.2[12.1996 -] MCV2#,SXV2# 左側 |
86160-33390 |
US $99.01 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
US $1.25 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9018906197
|
9018906197
90189-06197 GROMMET SCREW |
90189-06197 |
from US $0.74 |
