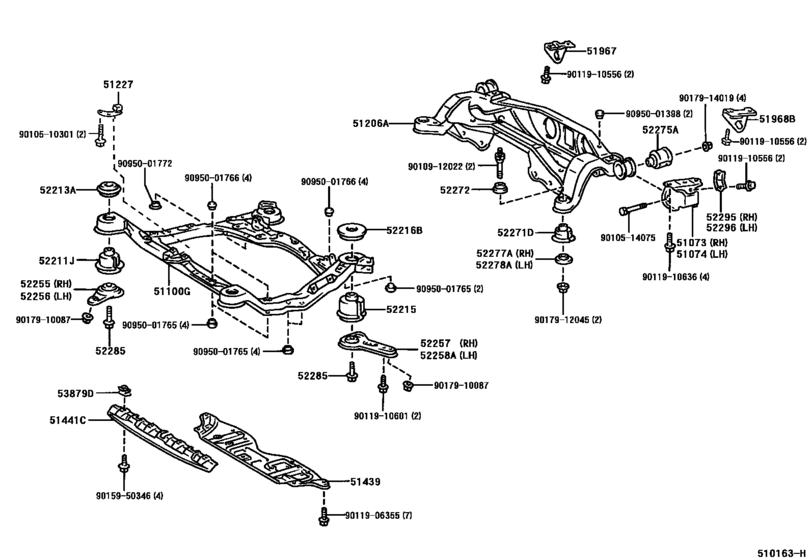

Suspension Crossmember & Under Cover ([06.1997 - ] (9706- )MCV25,SXV25) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51073
|
51073
51073-32010 Bracket Sub-Assy, Rear Body Mounting, No.2 Rh[06.1997 -] MCV25,SXV25 |
51073-32010 |
US $51.83 |
||
|
51074
|
51074
51074-32010 Bracket Sub-Assy, Rear Body Mounting, No.2 Lh[06.1997 -] MCV25,SXV25 |
51074-32010 |
US $51.83 |
||
|
51100G
|
51100G
51100-33020 Frame Assy, Front[06.1997 - 06.1999] MCV25,SXV25 |
51100-33020 |
US $1,172.08 |
||
| replacement | |||||
|
51100G
|
51100G
51100-48010 Frame Assy, Front[06.1997 - 06.1999] MCV25,SXV25 |
51100-48010 |
from US $851.76 |
||
|
51100G
|
51100G
51100-33040 Frame Assy, Front[06.1999 - 05.2001] MCV25,SXV25 |
51100-33040 |
US $1,285.65 |
||
| replacement | |||||
|
51100G
|
51100G
51100-48010 Frame Assy, Front[06.1999 - 05.2001] MCV25,SXV25 |
51100-48010 |
from US $851.76 |
||
|
51100G
|
51100G
51100-48010 Frame Assy, Front[05.2001 - 09.2001] MCV25,SXV25 |
51100-48010 |
from US $851.76 |
||
|
51206A
|
51206A
51206-33030 Member Sub-Assy, Rear Suspension[06.1997 - 08.1999] MCV25,SXV25 |
51206-33030 |
US $969.70 |
||
| replacement | |||||
|
51206A
|
51206A
51206-33050 Member Sub-Assy, Rear Suspension[06.1997 - 08.1999] MCV25,SXV25 |
51206-33050 |
US $972.61 |
||
|
51206A
|
51206A
51206-33050 Member Sub-Assy, Rear Suspension[08.1999 -] MCV25,SXV25 |
51206-33050 |
US $972.61 |
||
|
51439
|
51439
51439-33030 Plate, Engine Rear Side Shutter[06.1997 -] MCV25,SXV25 |
51439-33030 |
US $145.60 |
||
|
51441C
|
51441C
51441-33030
Cover, Engine Under, Rh
[12.1996 -] MCV2#,SXV2# |
51441-33030 |
— | ||
|
51968B
|
51968B
51968-33010 Hook, Transport, Rear[12.1996 - 08.1999] MCV21,SXV2#..SED |
51968-33010 |
US $14.71 |
||
|
52211J
|
52211J
52211-33050 Cushion, Front Suspension Member Body Mounting, Front[06.1997 -] MCV25,SXV25 |
52211-33050 |
US $60.63 |
||
|
52213A
|
52213A
52213-33050 Stopper, Front Suspension Member Body Mounting, Front[06.1997 -] MCV25,SXV25 |
52213-33050 |
US $25.86 |
||
|
52215
|
52215
52215-33050 Cushion, Front Suspension Member Body Mounting, Rear[06.1997 -] MCV25,SXV25 |
52215-33050 |
US $72.22 |
||
|
52216B
|
52216B
52216-33050 Stopper, Front Suspension Member Body Mounting, Rear[06.1997 -] MCV25,SXV25 |
52216-33050 |
US $40.04 |
||
|
52255
|
52255
52255-33030 Brace, Front Suspension Member, Front Rh[06.1997 -] MCV25,SXV25 |
52255-33030 |
US $32.47 |
||
|
52256
|
52256
52256-33030 Brace, Front Suspension Member, Front Lh[06.1997 -] MCV25,SXV25 |
52256-33030 |
US $32.47 |
||
|
52257
|
52257
51023-33020 Brace, Front Suspension Member, Rear Rh[06.1997 -] MCV25,SXV25 |
51023-33020 |
US $53 |
||
|
52258A
|
52258A
51024-33020 Brace, Front Suspension Member, Rear Lh[06.1997 -] MCV25,SXV25 |
51024-33020 |
US $53 |
||
|
52271D
|
52271D
52271-33020 Cushion, Rear Suspension Member Body Mounting, Front[06.1997 -] MCV25,SXV25 |
52271-33020 |
US $51.25 |
||
|
52272
|
52272
52272-32010 Cushion, Rear Suspension Member[06.1997 -] MCV25,SXV25 |
52272-32010 |
US $10.32 |
||
|
52275A
|
52275A
52275-33040 Cushion, Rear Suspension Member Body Mounting, Rear[06.1997 -] MCV25,SXV25 |
52275-33040 |
US $64.47 |
||
|
52277A
|
52277A
52277-32010 Retainer, Rear Suspension Member Lower Stopper, Rh[06.1997 - 09.2001] MCV25,SXV25 |
52277-32010 |
US $16.20 |
||
|
52278A
|
52278A
52277-32010 Retainer, Rear Suspension Member Lower Stopper, Rh[06.1997 - 09.2001] MCV25,SXV25 |
52277-32010 |
US $16.20 |
||
|
52285
|
52285
52285-33010 Bolt, Differential Support Member Mounting, No.1[06.1997 -] MCV25,SXV25 |
52285-33010 |
US $22.13 |
||
|
52295
|
52295
52295-32010 Brace, Rear Suspension Member, Rh[06.1997 - 08.1999] MCV25,SXV25 |
52295-32010 |
US $14.56 |
||
| replacement | |||||
|
52295
|
52295
52295-33010 Brace, Rear Suspension Member, Rh[06.1997 - 08.1999] MCV25,SXV25 |
52295-33010 |
US $14.27 |
||
|
52295
|
52295
52295-33010 Brace, Rear Suspension Member, Rh[08.1999 -] MCV25,SXV25 |
52295-33010 |
US $14.27 |
||
|
52296
|
52296
52296-32010 Brace, Rear Suspension Member, Lh[06.1997 - 08.1999] MCV25,SXV25 |
52296-32010 |
US $14.56 |
||
| replacement | |||||
|
52296
|
52296
52296-33010 Brace, Rear Suspension Member, Lh[06.1997 - 08.1999] MCV25,SXV25 |
52296-33010 |
US $14.27 |
||
|
52296
|
52296
52296-33010 Brace, Rear Suspension Member, Lh[08.1999 -] MCV25,SXV25 |
52296-33010 |
US $14.27 |
||
|
53879D
|
53879D
53879-20020 Retainer, Front Fender Liner[12.1996 -] MCV2#,SXV2# |
53879-20020 |
US $5.02 |
||
|
9010510301
|
9010510301
90105-10301 BOLT WASHER BASED |
90105-10301 |
US $1.97 |
||
|
9010514075
|
9010514075
90105-14075
New Genuine Part
|
90105-14075 |
— | ||
|
9010912022
|
9010912022
90109-12022 BOLT |
90109-12022 |
US $10.93 |
||
|
9011906355
|
9011906355
90119-06355 BOLT |
90119-06355 |
from US $0.99 |
||
|
9011910556
|
9011910556
90119-10556 Bolt(For Spare Wheel Carrier Lock) |
90119-10556 |
US $4.12 |
||
|
9011910601
|
9011910601
90119-10601 BOLT WWASHER |
90119-10601 |
US $1.61 |
||
|
9011910636
|
9011910636
90119-10636 BOLT WWASHER |
90119-10636 |
from US $1.13 |
||
|
9015950346
|
9015950346
90159-50346 SCREW |
90159-50346 |
from US $0.66 |
||
|
9017910087
|
9017910087
90179-10087 Nut (For Front Lower Ball Joint Setting) |
90179-10087 |
from US $0.98 |
||
|
9017912045
|
9017912045
90179-12045 New Genuine Part |
90179-12045 |
US $5.56 |
||
|
9017914019
|
9017914019
90179-14019 Nut |
90179-14019 |
from US $1.40 |
||
|
9095001398
|
9095001398
90950-01398 CUSHION |
90950-01398 |
from US $0.92 |
||
|
9095001765
|
9095001765
90950-01765 New Genuine Part |
90950-01765 |
US $2.15 |
||
|
9095001766
|
9095001766
90950-01766 PLUG HOLE |
90950-01766 |
US $1.97 |
||
|
9095001772
|
9095001772
90950-01772 PLUG |
90950-01772 |
from US $2.59 |
||
