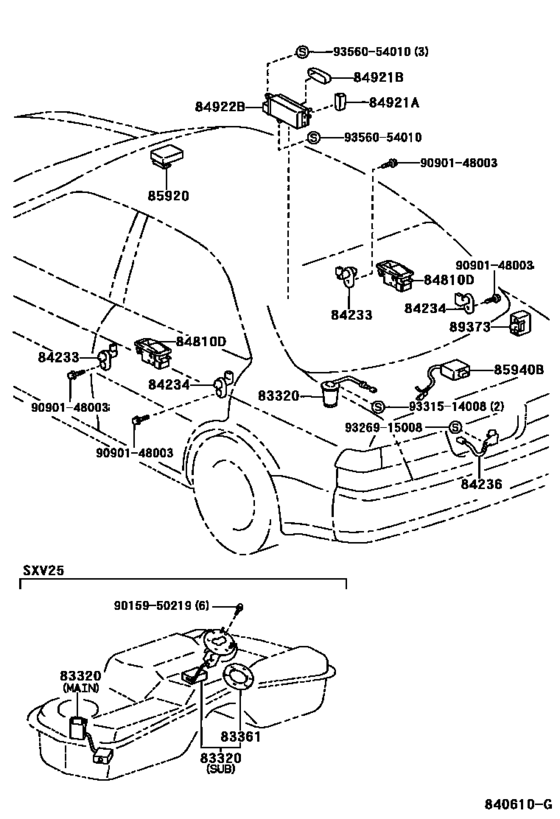

Switch & Relay & Computer ([12.1996 - ] ﾌﾛｱ, ﾄﾞｱ, ﾗﾂｹﾞ-ｼﾞ (9612- )SED) Diagram Toyota CAMRY/ VISTA/ AURION
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- SXV25
- body
- SED
- ENGINE
- 5SFE
- Model
- CAMRY GRACIA
- From
- 08.1998
- To
- 09.2001
- Vehicle Model
- Camry Gracia
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-33050 Gage Assy, Fuel Sender[06.1997 -] MCV25,SXV25 メイン |
83320-33050 |
US $58.39 |
||
|
83320
|
83320
83320-80355 Gage Assy, Fuel Sender[06.1997 -] MCV25,SXV25 サブ |
83320-80355 |
US $58.39 |
||
|
83361
|
83361
83361-30020 Gasket, Fuel Sender Gage[06.1997 -] MCV25,SXV25 |
83361-30020 |
US $11.16 |
||
|
84233
|
84233
84231-33071 Switch Assy, Courtesy Lamp (For Front Door)[12.1996 - 11.1999] MCV2#,SXV2# |
84231-33071 |
US $14.41 |
||
| replacement | |||||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[12.1996 - 11.1999] MCV2#,SXV2# |
84231-53010 |
from US $11.83 |
||
|
84233
|
84233
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[11.1999 -] MCV2#,SXV2# |
84231-53010 |
from US $11.83 |
||
|
84234
|
84234
84231-33071 Switch Assy, Courtesy Lamp (For Front Door)[12.1996 - 11.1999] MCV2#,SXV2# |
84231-33071 |
US $14.41 |
||
| replacement | |||||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[12.1996 - 11.1999] MCV2#,SXV2# |
84231-53010 |
from US $11.83 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[11.1999 -] MCV2#,SXV2# |
84231-53010 |
from US $11.83 |
||
|
84236
|
84236
84231-20380 Switch Assy, Courtesy Lamp(For Back Door)[06.1998 -] MCV21,SXV2#..SED |
84231-20380 |
US $14.41 |
||
|
84810D
|
84810D
84810-33060 Switch Assy, Power Window Regulator, Rear[08.1997 -] MCV2#,SXV2# ﾓｸﾒ |
84810-33060 |
from US $54.02 |
||
|
84921A
|
84921A
84921-33040-B0 Knob, Power Seat Switch (For Reclining)[12.1996 - 08.1999] MCV2#,SXV2# BLUE GRAY,TRIM1# |
84921-33040-B0 |
US $6.84 |
||
| replacement | |||||
|
84921A
|
84921A
84921-33040-C0 Knob, Power Seat Switch (For Reclining) (Black)[12.1996 - 08.1999] MCV2#,SXV2# BLUE GRAY,TRIM1# |
84921-33040-C0 |
US $6.84 |
||
|
84921A
|
84921A
84921-33040-G0 Knob, Power Seat Switch (For Reclining)[12.1996 -] MCV2#,SXV2# SAGE,TRIM6# |
84921-33040-G0 |
US $6.99 |
||
| replacement | |||||
|
84921A
|
84921A
84921-33040-C0 Knob, Power Seat Switch (For Reclining) (Black)[12.1996 -] MCV2#,SXV2# SAGE,TRIM6# |
84921-33040-C0 |
US $6.84 |
||
|
84921B
|
84921B
84921-33070-B0 Knob, Power Seat Switch (For Slide & Vertical)[12.1996 - 08.1999] MCV2#,SXV2# BLUE GRAY,TRIM1# |
84921-33070-B0 |
US $10.92 |
||
| replacement | |||||
|
84921B
|
84921B
84921-33070-C0 Knob, Power Seat Switch (For Slide & Vertical)[12.1996 - 08.1999] MCV2#,SXV2# BLUE GRAY,TRIM1# |
84921-33070-C0 |
US $11.07 |
||
|
84921B
|
84921B
84921-33070-G0 Knob, Power Seat Switch (For Slide & Vertical)[12.1996 -] MCV2#,SXV2# SAGE,TRIM6# |
84921-33070-G0 |
US $11.07 |
||
| replacement | |||||
|
84921B
|
84921B
84921-33070-C0 Knob, Power Seat Switch (For Slide & Vertical)[12.1996 -] MCV2#,SXV2# SAGE,TRIM6# |
84921-33070-C0 |
US $11.07 |
||
|
84922B
|
84922B
84922-33070 Switch, Front Power Seat[12.1996 -] MCV2#,SXV2# |
84922-33070 |
US $147.06 |
||
|
85920
|
85920
85920-0W010-B0 Relay & Switch Assy, Sliding Roof[12.1996 - 08.1999] MCV2#,SXV2# LT.GRAY,TRIM1# |
85920-0W010-B0 |
US $298.48 |
||
|
85920
|
85920
85920-0W010-G0 Relay & Switch Assy, Sliding Roof[12.1996 -] MCV2#,SXV2# SAGE,TRIM6# |
85920-0W010-G0 |
US $298.48 |
||
|
85940B
|
85940B
85940-32150 Relay Assy, Windshield Wiper[12.1996 -] MCV21,SXV2#..SED |
85940-32150 |
US $151.42 |
||
|
89373
|
89373
89373-12140 Sensor, Lamp Failure Indicator[08.1999 -] MCV2#,SXV2# |
89373-12140 |
US $238.78 |
||
|
89373
|
89373
89373-12160 Sensor, Lamp Failure Indicator[08.1999 -] MCV21,SXV2#..SED ｶﾝﾚｲﾁ ｼﾖｳ |
89373-12160 |
US $235.87 |
||
|
89373
|
89373
89373-33130 Sensor, Lamp Failure Indicator[12.1996 - 08.1999] MCV21,SXV2#..SED |
89373-33130 |
US $237.33 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.59 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.97 |
||
|
9326915008
|
9326915008
93269-15008 New Genuine Part |
93269-15008 |
US $1.08 |
||
|
9331514008
|
9331514008
93315-14008 New Genuine Part |
93315-14008 |
US $1.10 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.25 |
||
